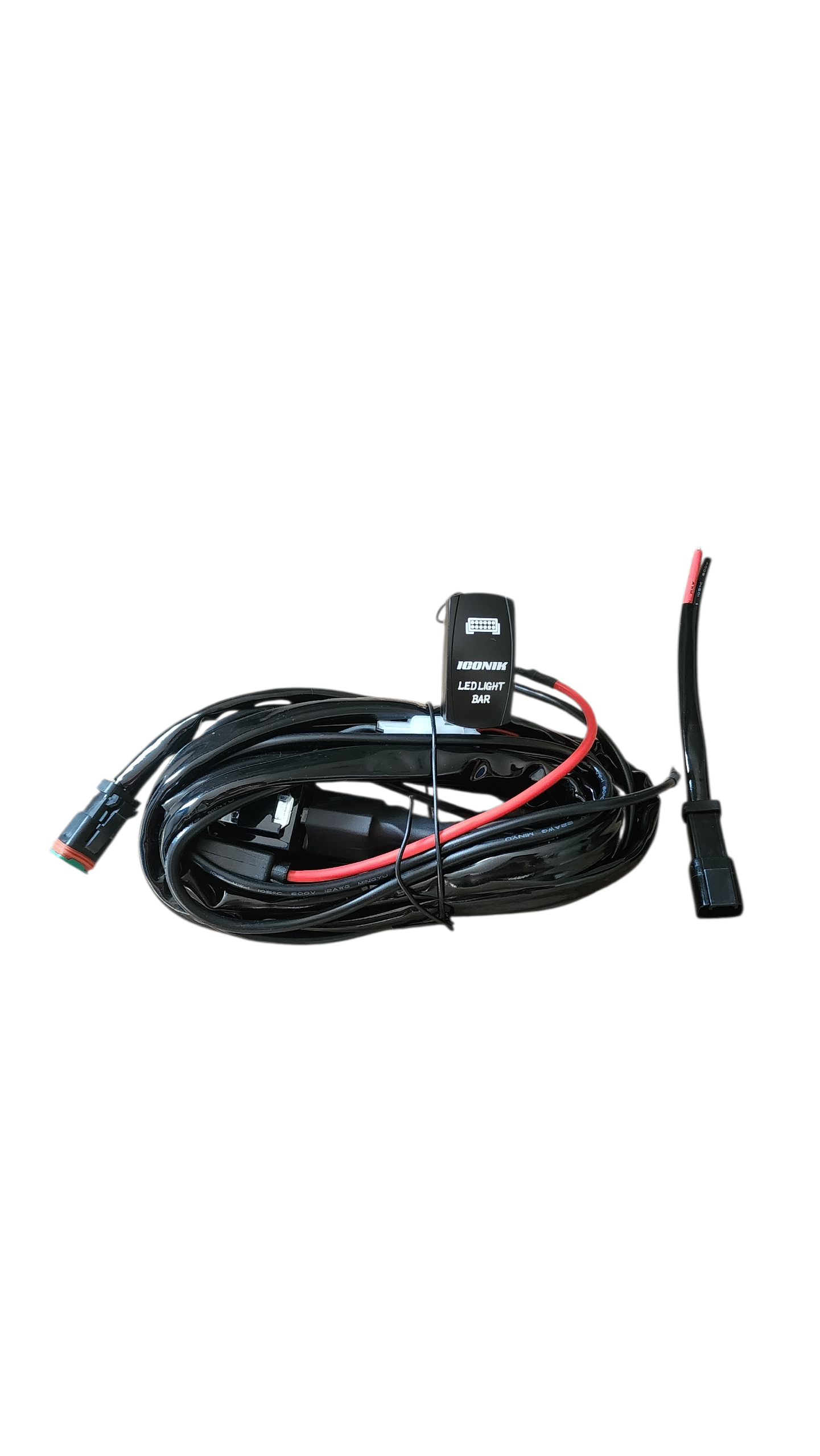

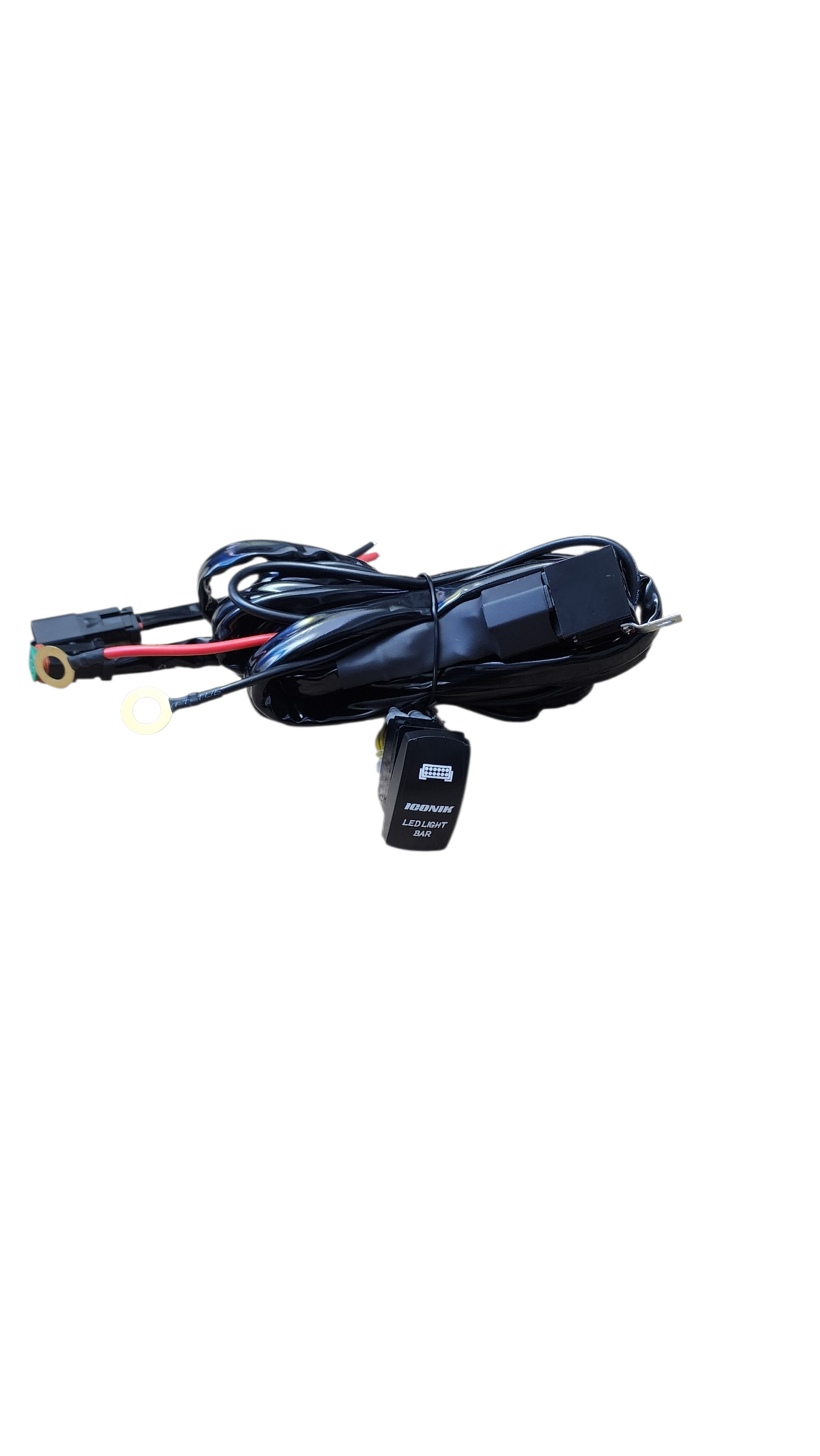

10ft 12 AWG Relay Wiring Harness with On/Off LED LIGHT BAR Rocker Switch (1 lead) 2 pin DT connectors

10ft 12 AWG Relay Wiring Harness with On/Off  LED LIGHT BAR Rocker Switch (1 lead) 2 pin DT connectors

Specification

Product Style: 1 Lead Working Voltage: 12 V(DC)

Max Load Current: 40A Max

Current of blade fuse: 40A Amp

Cable from Relay to Connector: 12 AWG 120"

Cable from Relay to Battery: 12 AWG 20"

Cable from Relay to Switch: 22 AWG 116"

Cable Material: PVC insulated copper cableIngress Protection: IP 65Operating

Features:

• Universal wiring harness –12 AWG, 40 Amps current rating, suitable for 0-360W LED lights, this wire harness is perfect for cars, trucks, SUV, off-road utility vehicles, and even trailers.

• Waterproof durability – each wiring harness kit features a 40A relay, waterproof on/off rocker switch and waterproof fuse holder to keep it dry, safe and running smooth.

• Includes waterproof male and female 2 pin DT connectors.

• Quick & easy installation – a modular design and quick-change parts systems make installing our wiring harness kit simple, even for beginner gear-heads.

• High-quality craftsmanship – these 10’ wiring harness work with a variety of on/off-road vehicles, including F150, Jeep Wranglers and UTV/ATV.

Specs:

• 1 Lead, 12 AWG wire, 360W(max actual power consumption) light setup (40 amps)

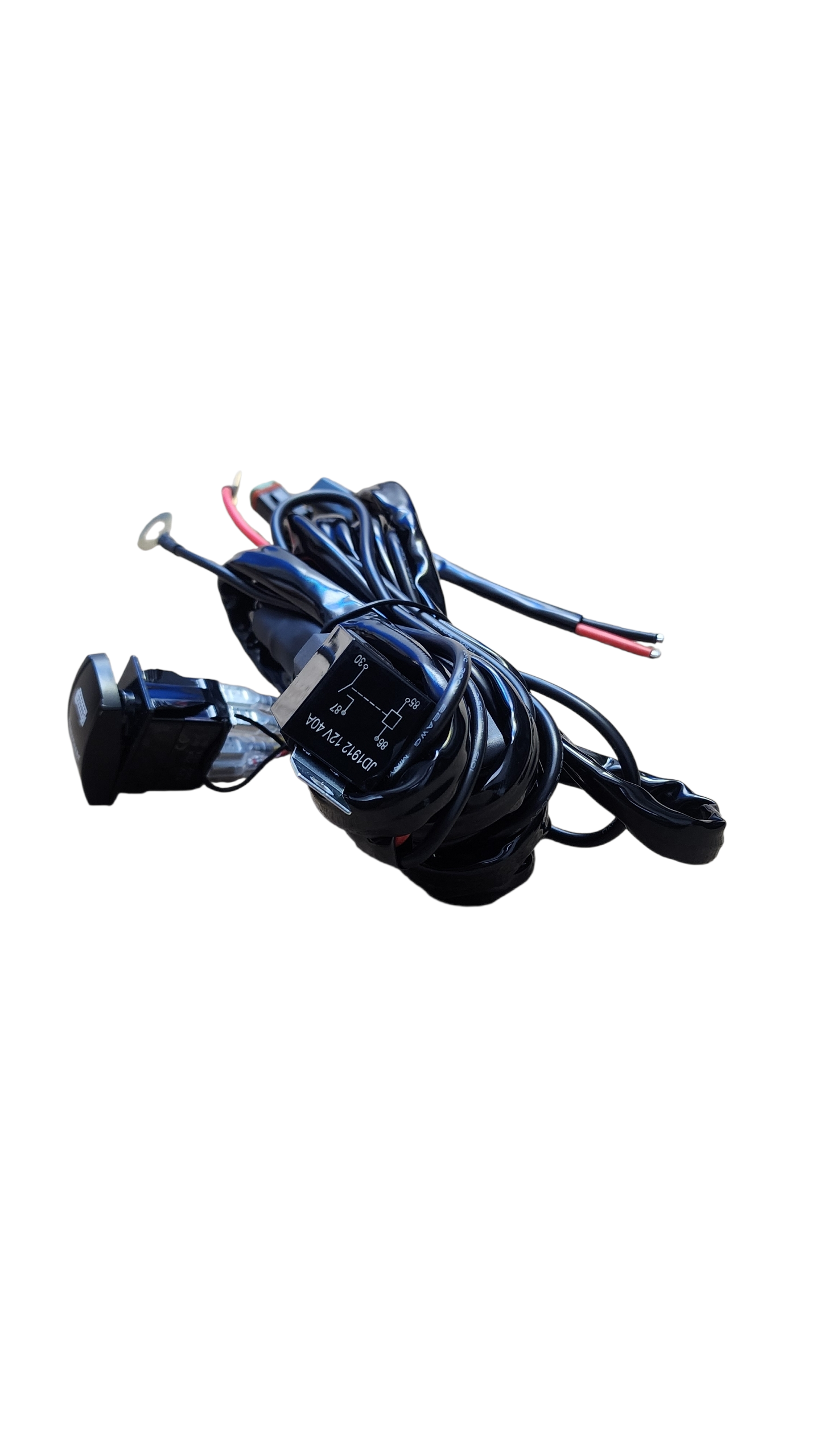

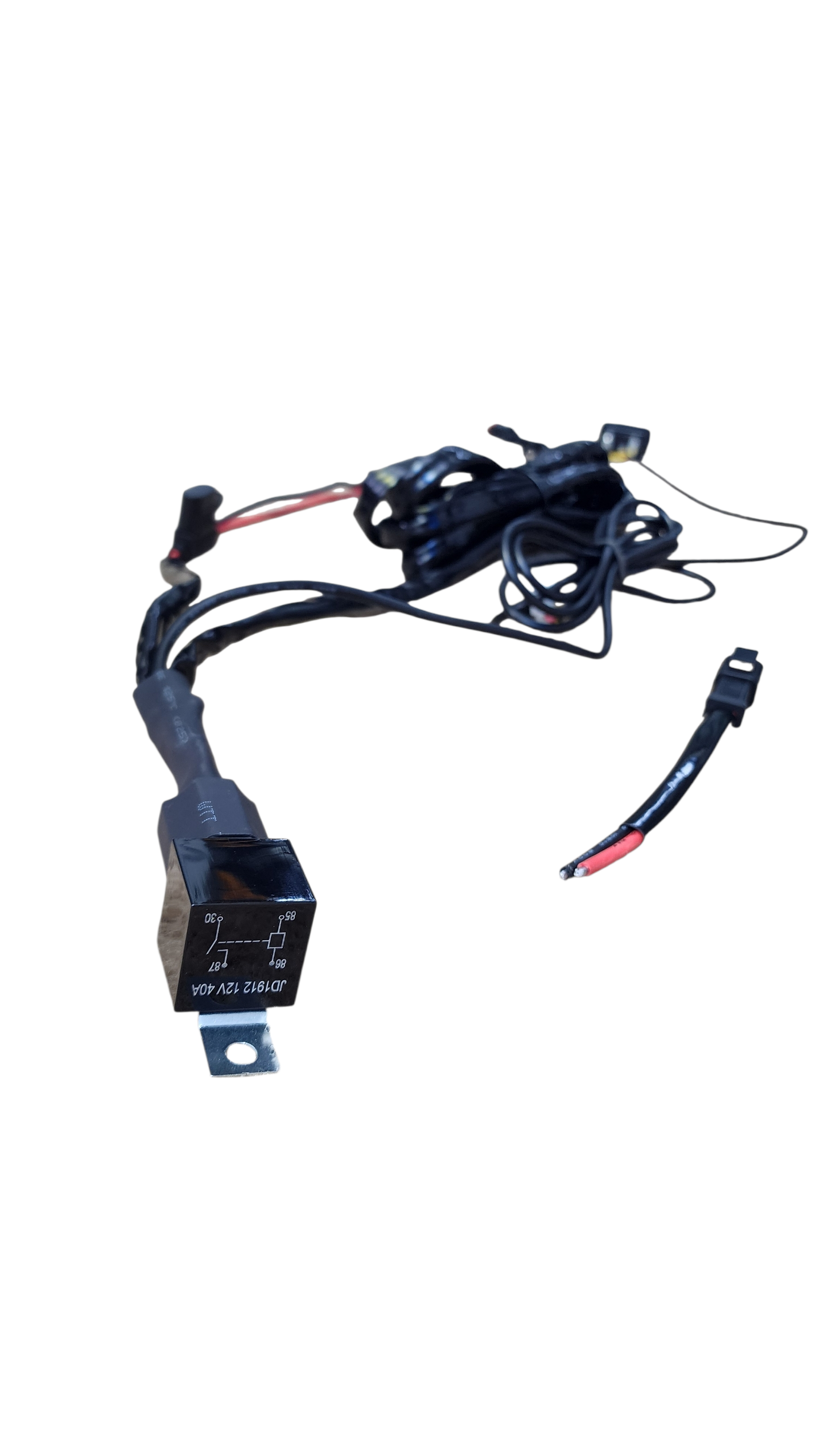

• 12V 4-pin 40A automotive relay

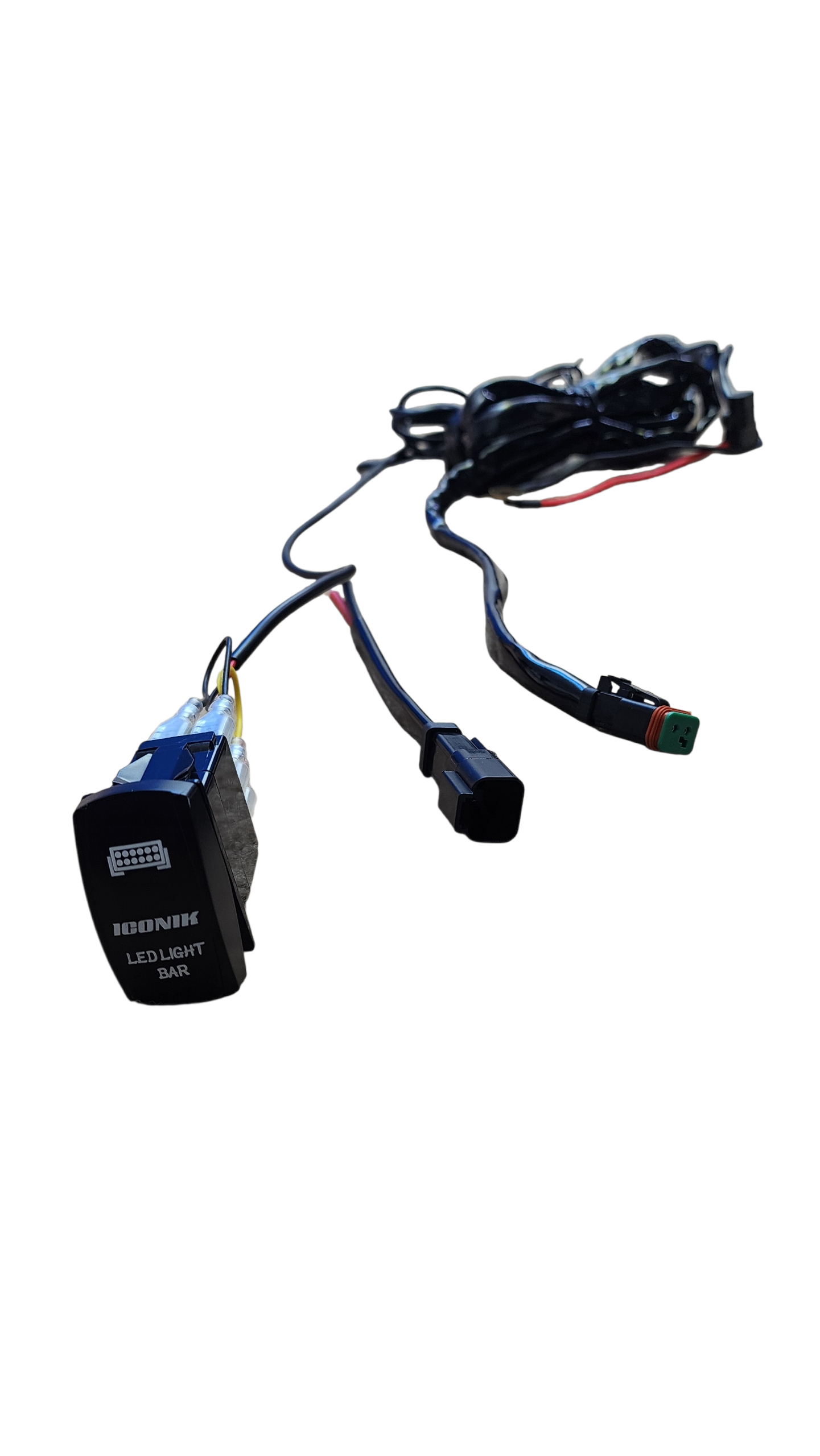

• 5-Pin on/off rocker switch (LED LIGHT BAR)  with LED indicator

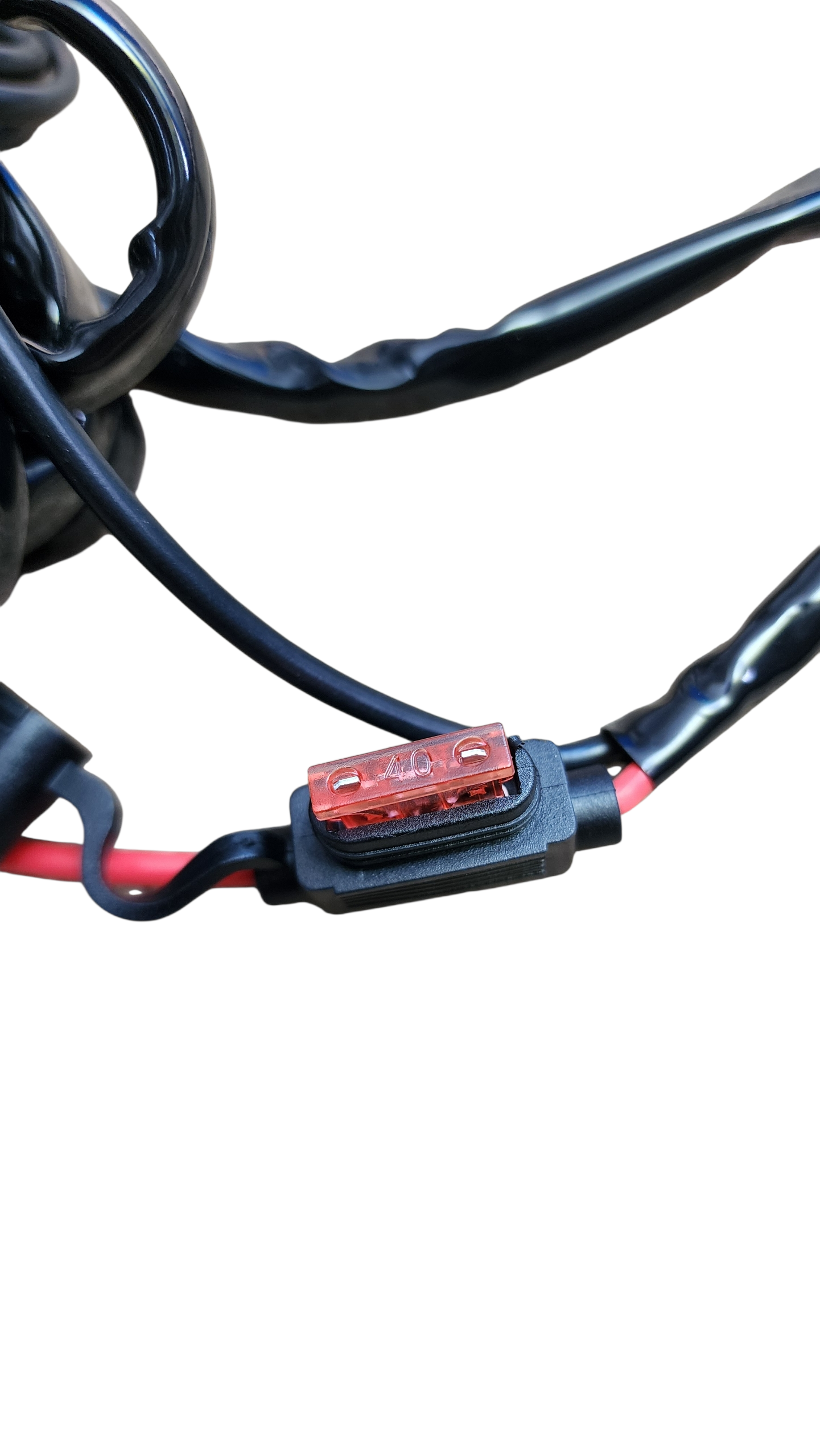

• IP65 sealed water & dust proof fuse holder

• High quality blade fuse(40 Amps)

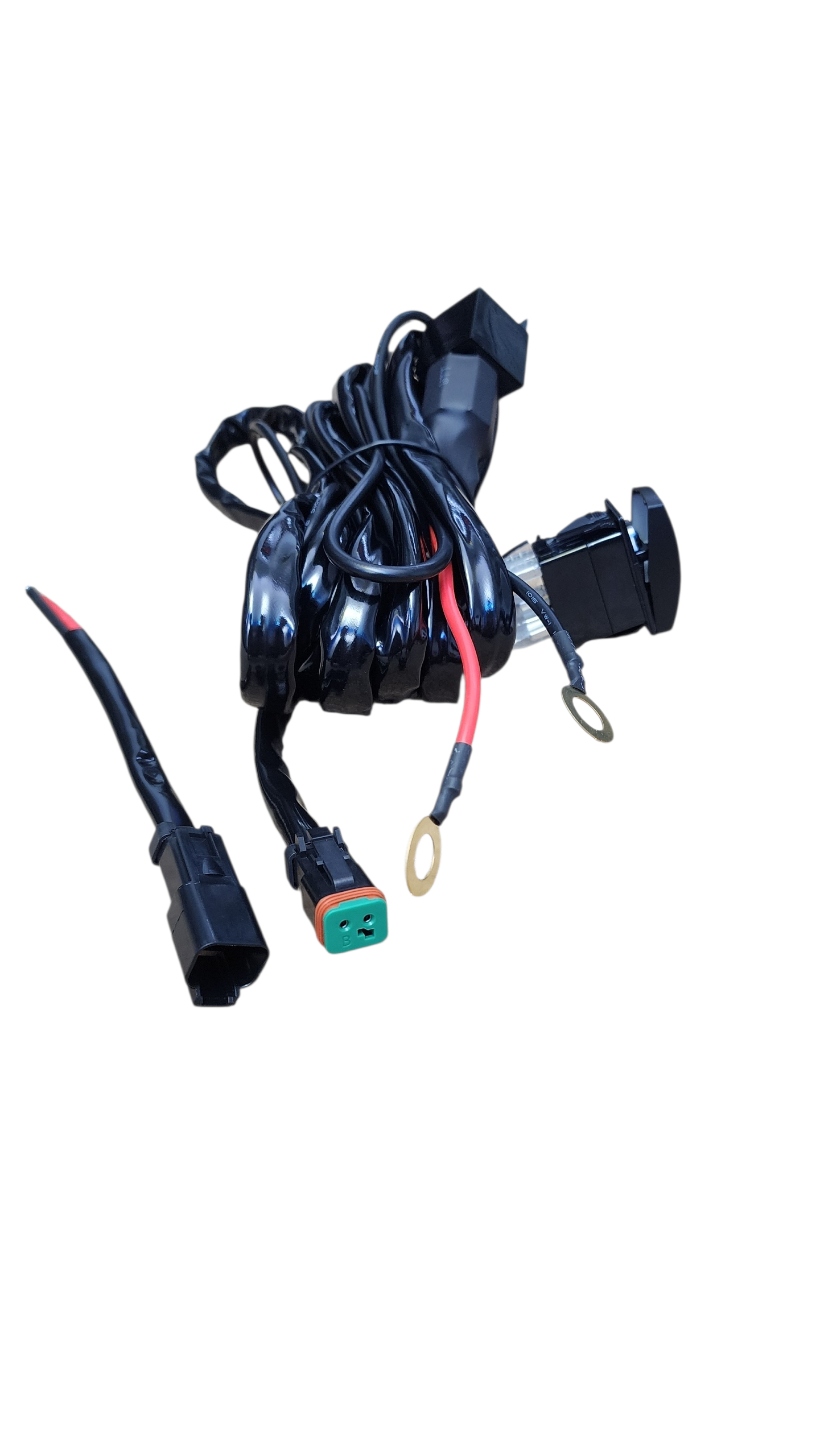

• IP65 sealed weather pack 2 pin DT high amp-rating connectors(male and female)

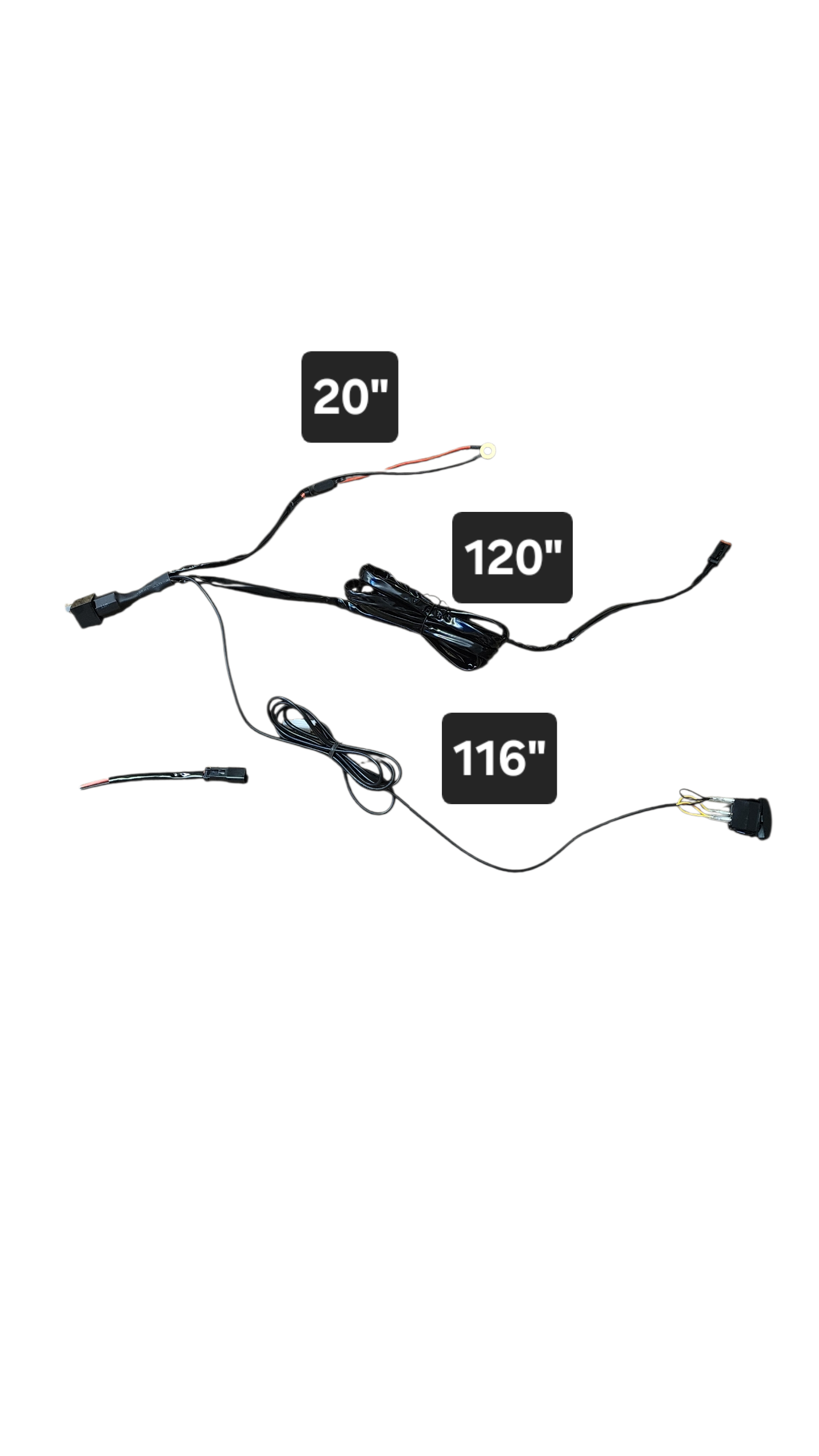

Cable Length:

• Length (relay to battery): 20"

• Length (relay to switch): 116"

• Length (relay to connector): 120"

Please pay attention to the operating circumstances. Keep the wiring harness away from any moisture or heat, such as rain, moisture environment, electro-heat equipment (engine and etc).
