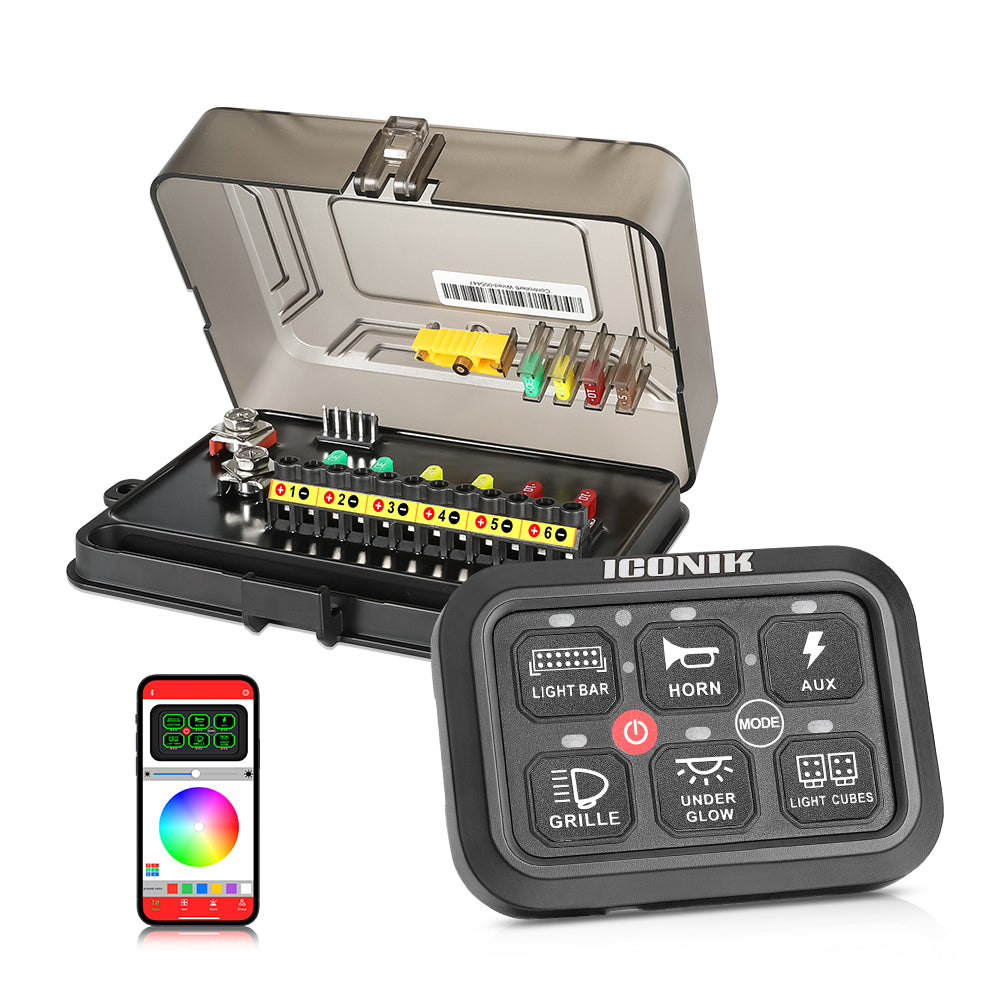

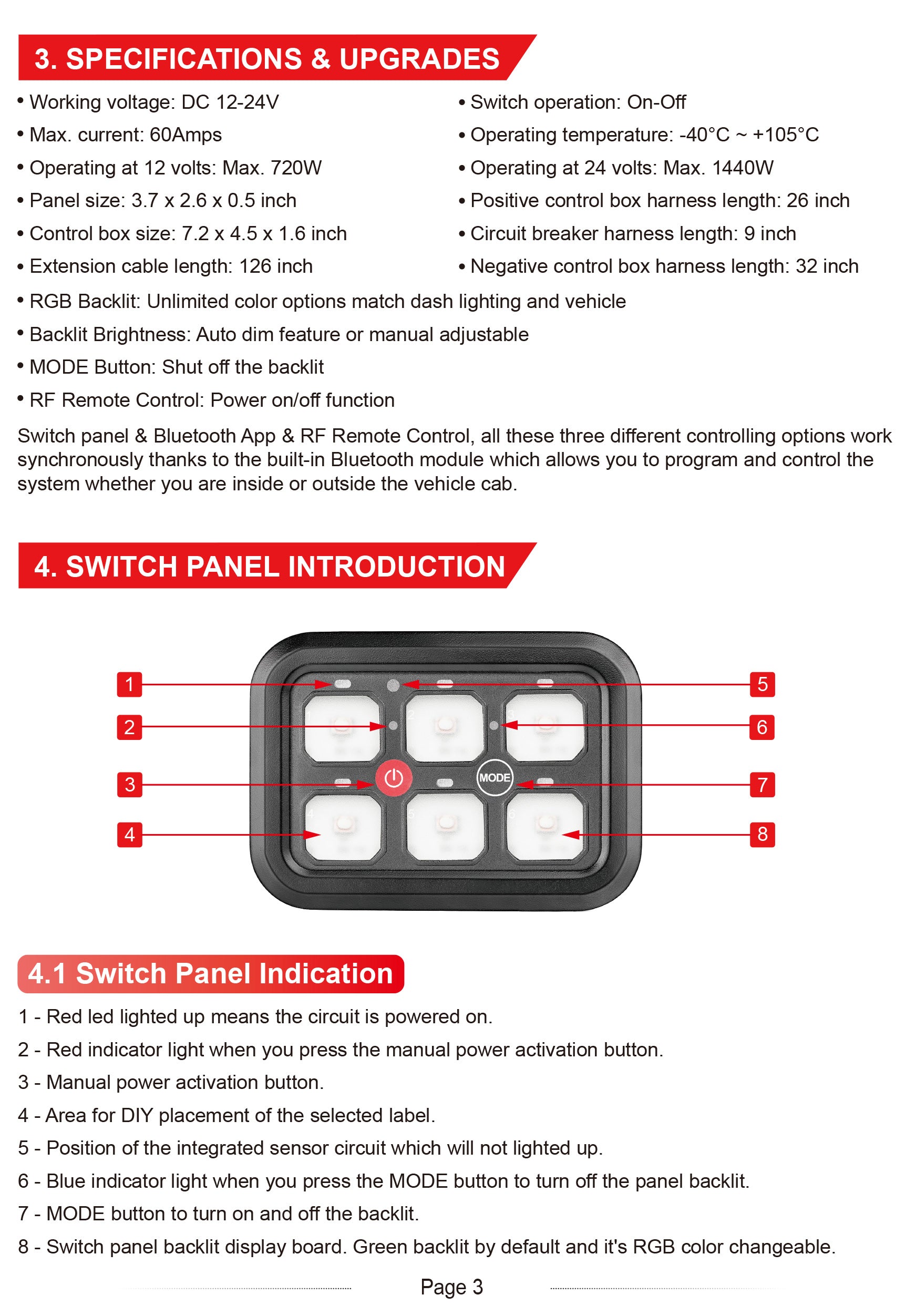

Product Name: 6 Gang RGB Bluetooth Switch Panel
Input Voltage: 12~24 Volt
Power Handling: 720W at 12V, 1440W at 24V

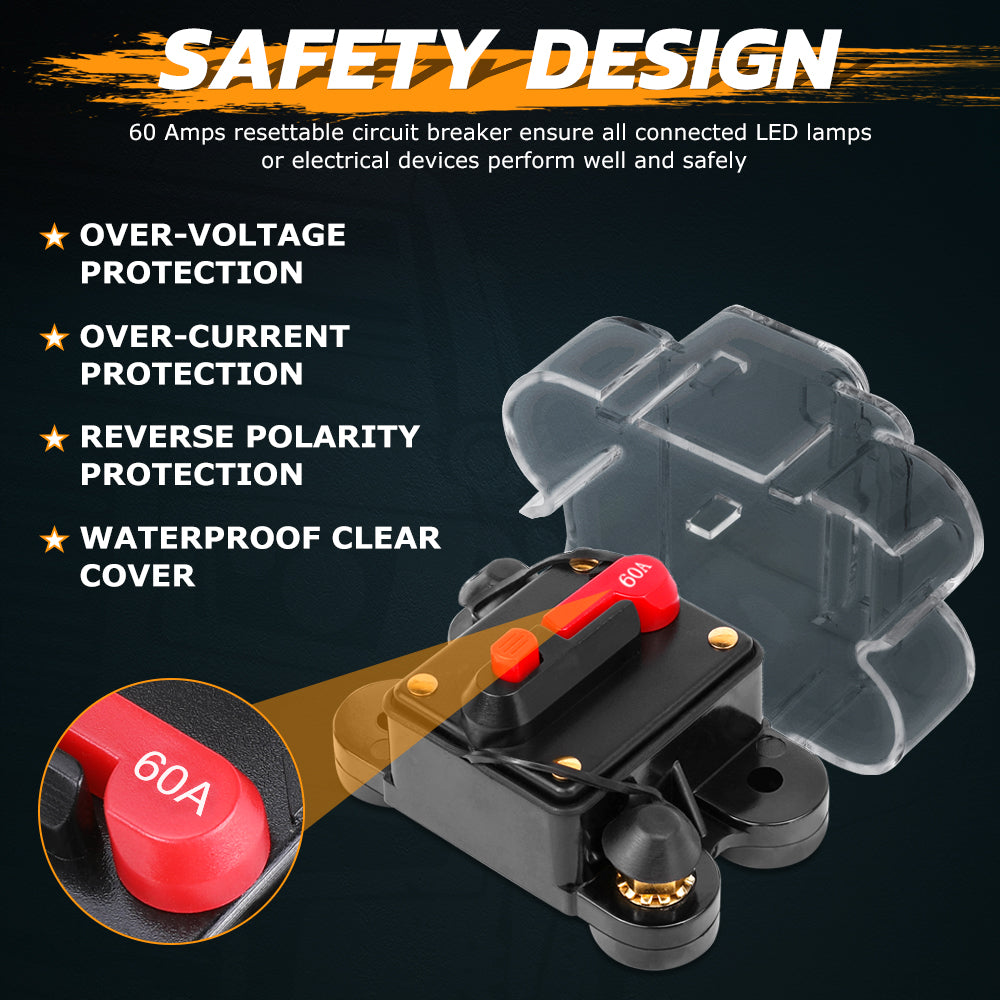

Max. Current: 60Amps
Switch Function: Toggle, Pulsed, Momentary
Backlit Color: RGB Color Changeable
Control Option 1: Panel pad
Control Option 2: Phone App

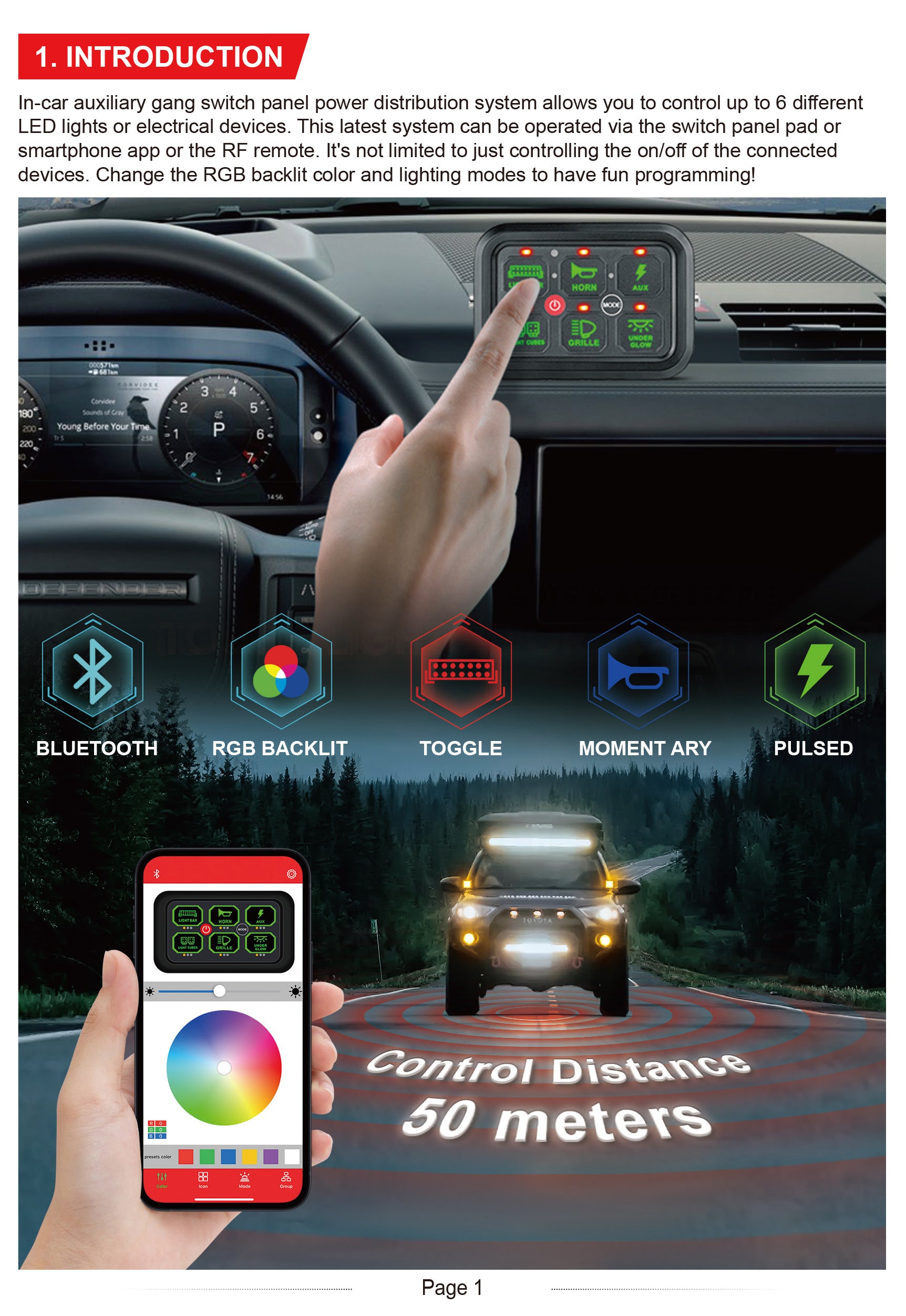

Why a switch panel power system?

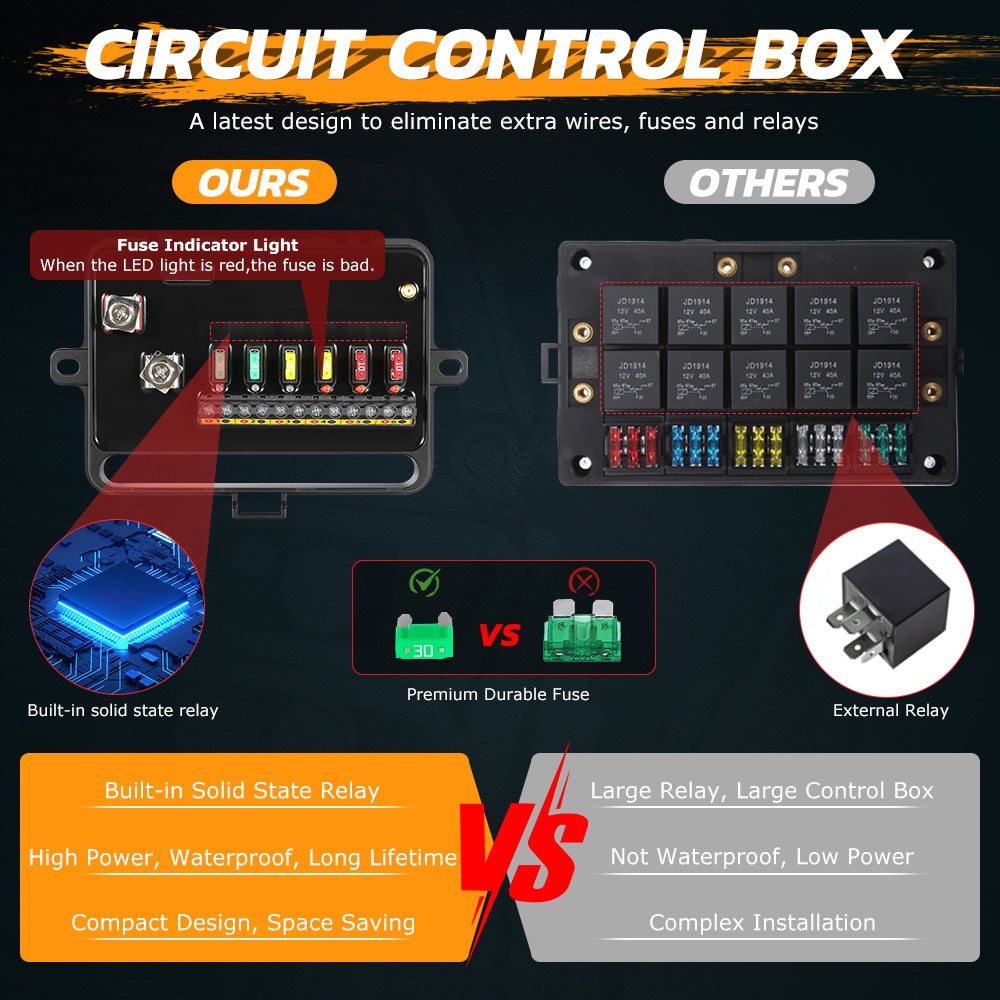

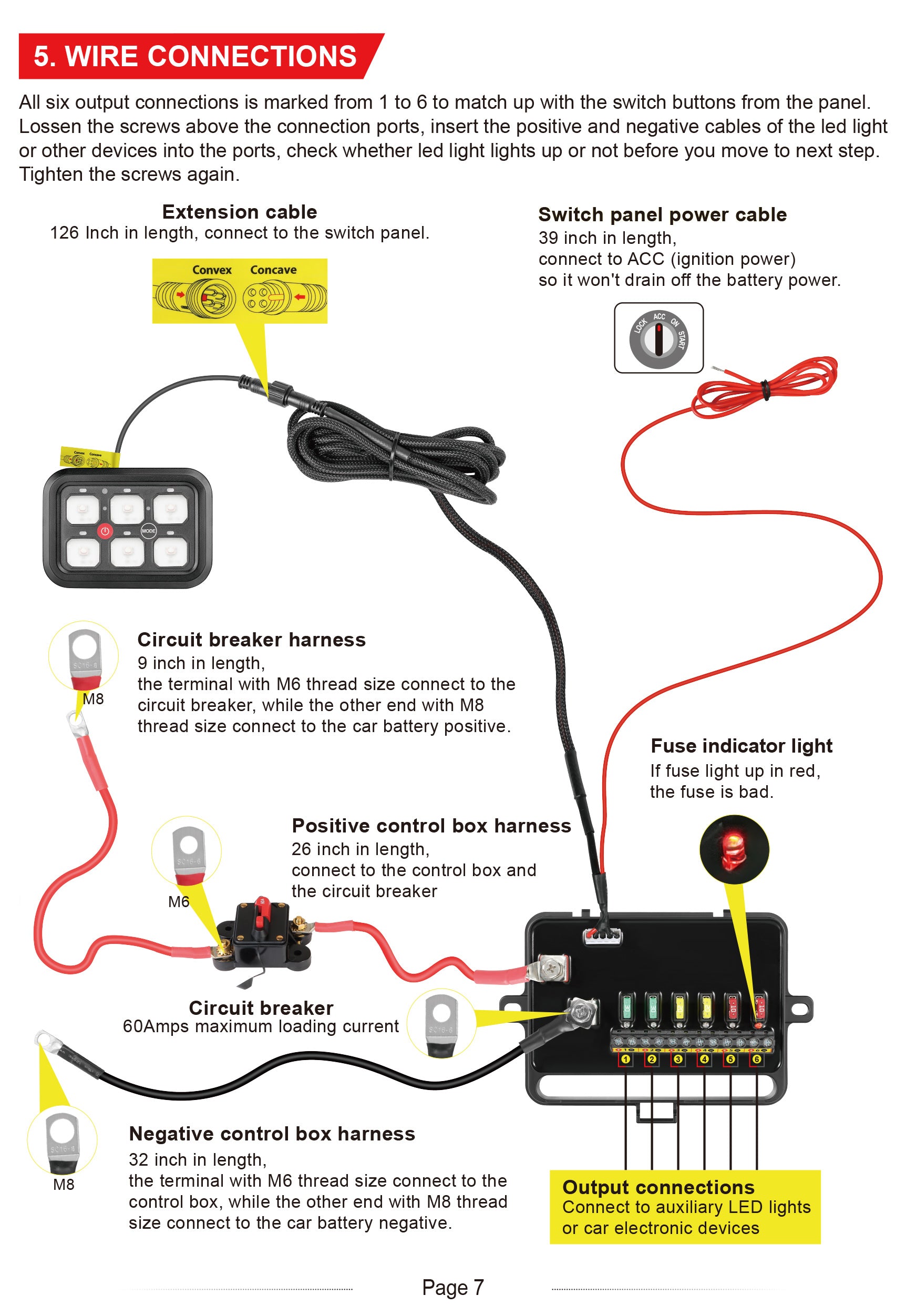

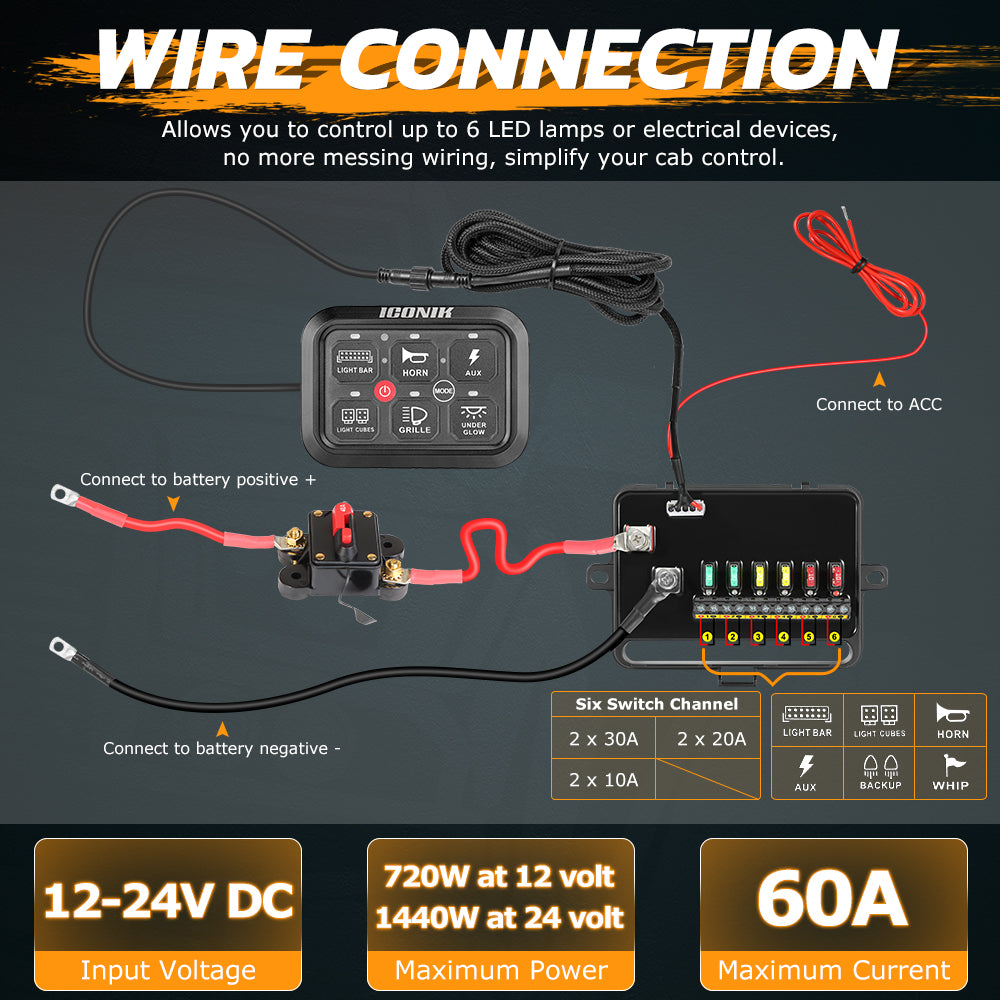

This switch panel power distribution system makes installing aftermarket led lights or electronic car devices or camping devices so much easier! It offers perfect solution to clean up all wiring harness mess through a single panel and compact size circuit control box. This switch panel system allows you to connect and control multiple car auxiliary LED light bars or LED fog driving lights or other electronic devices once a time.
12 or 24 Volt Fitment

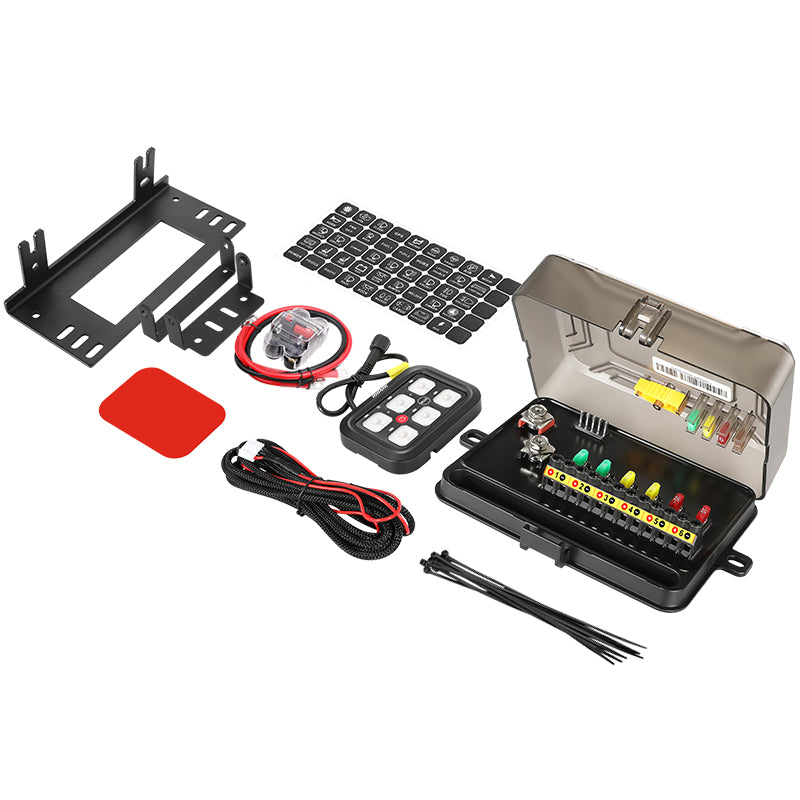

This complete package of power control system fits for all 12 volt or 24 volt vehicles, pickup trucks, powersports utv, boats and marines, suv, rv motovan, or other heavy duty machines.
[Product Advantages]

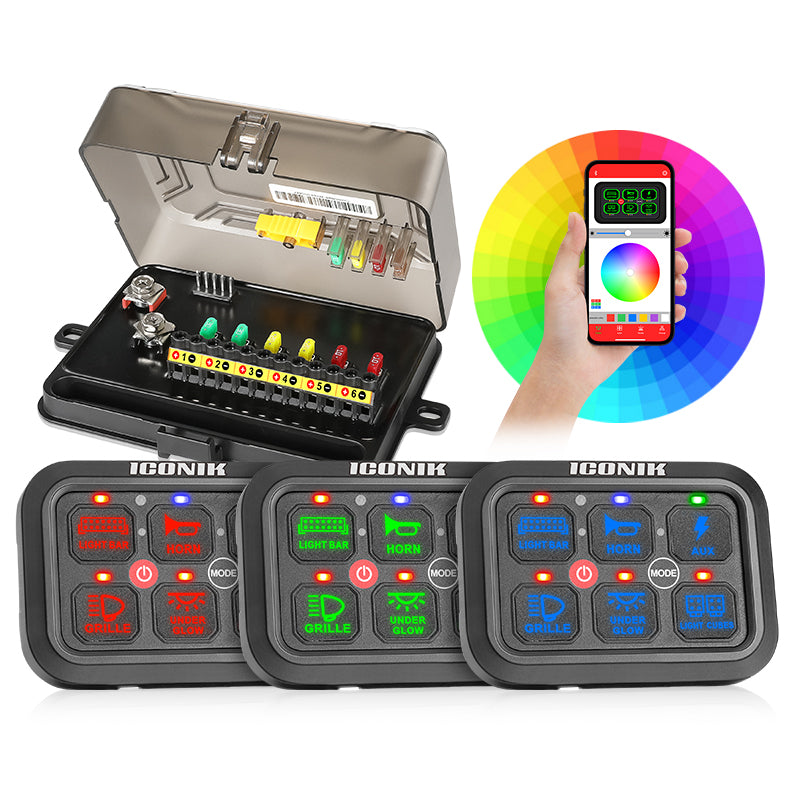

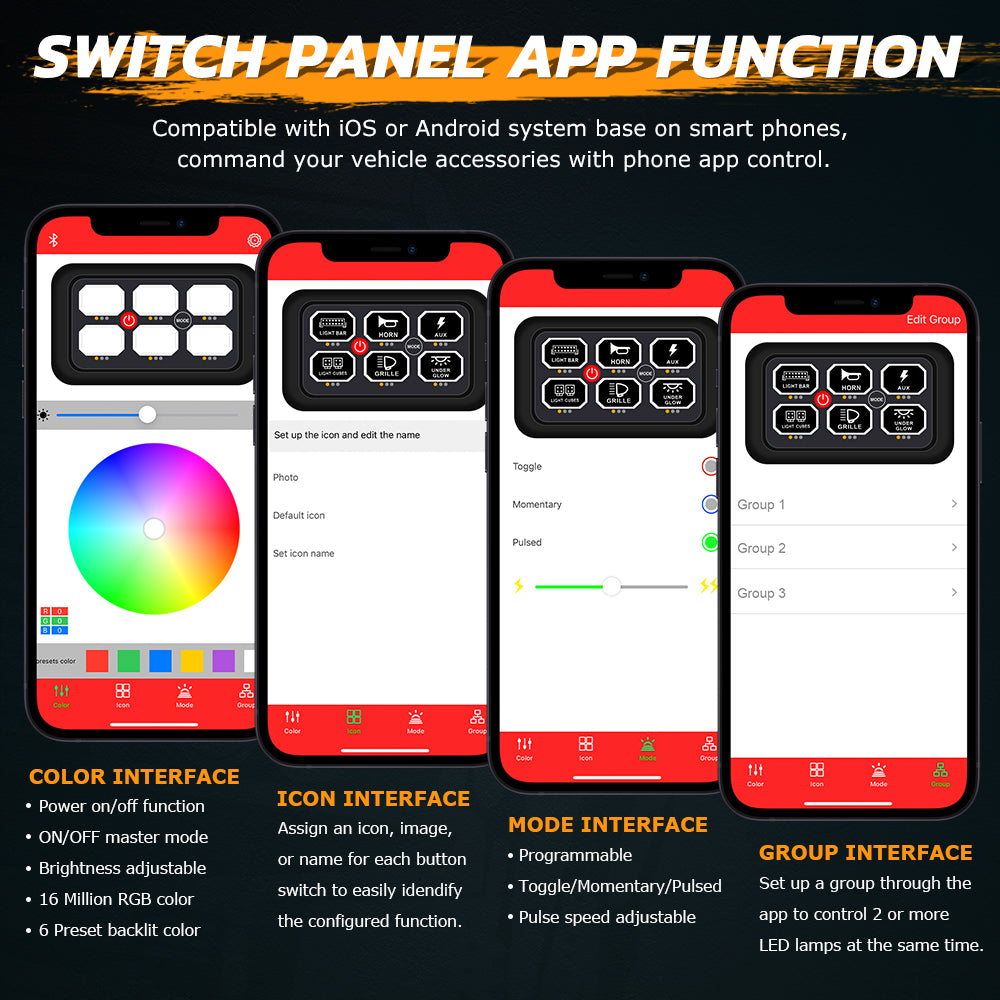

Comparing with those blue or green backlit switch panel control boxes on the current market, the biggest advantages of this switch panel power distribution system is user programmable and control via the panel or smart phone, bluetooth interface. The app name is Switch Panel. User can download it from phone app store directly. For instance, if users connecting eight led lights to the switch panel, you can turn these lights on or off inside the cab where you mount the switch panel, or you can step outside the vehicle, power all the lights on and off in 10 meters away via a finger touch on your phone app.

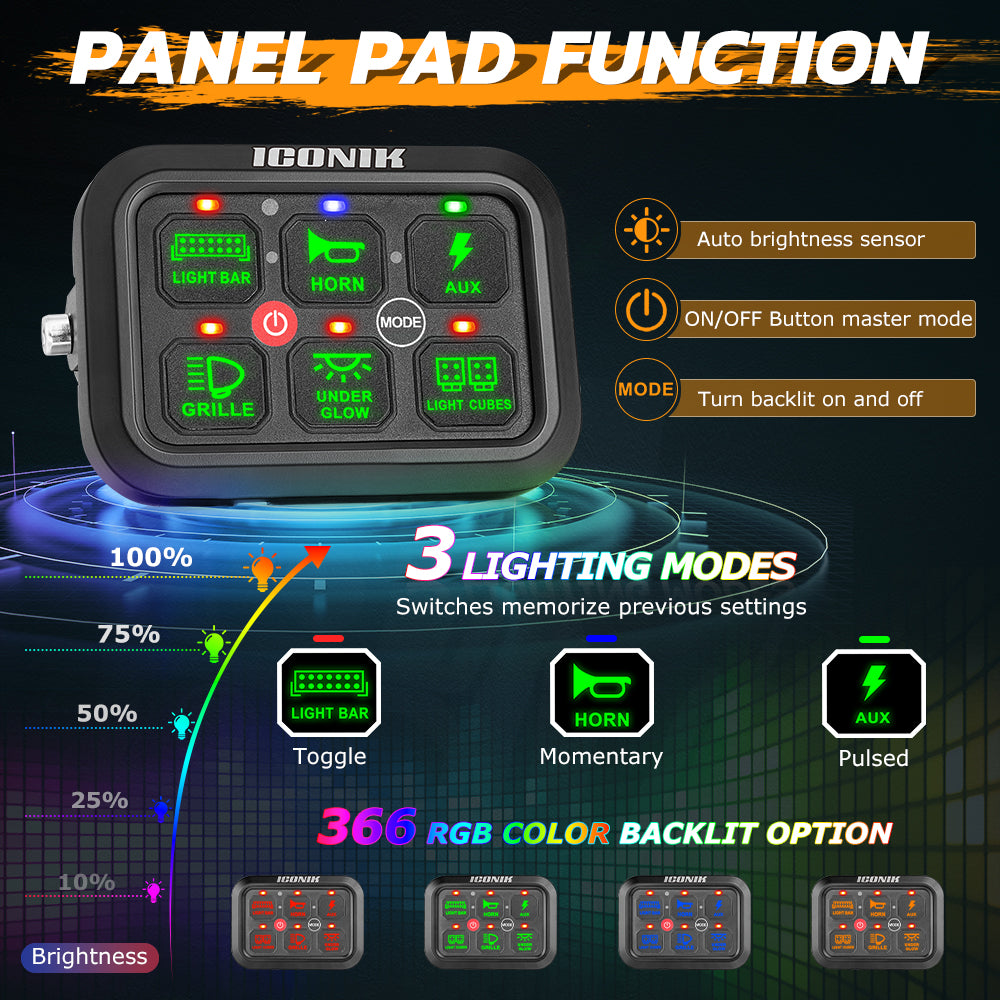

Backlit Color and Brightness
With this function, you can set up whatever backlit color and brightness you like.
There are many options of 12 volt switch panels on the market, some of them are fixed in green or blue backlit with five different brightness options, some of them are designed with automatically dimmable backlit function. But there are still some customers want more backlit color choices rather than green or blue, where to get them? Now with our updated RGB programmable blue tooth 6 gang switch panel power distribution system, we take good care of your needs and concerns!

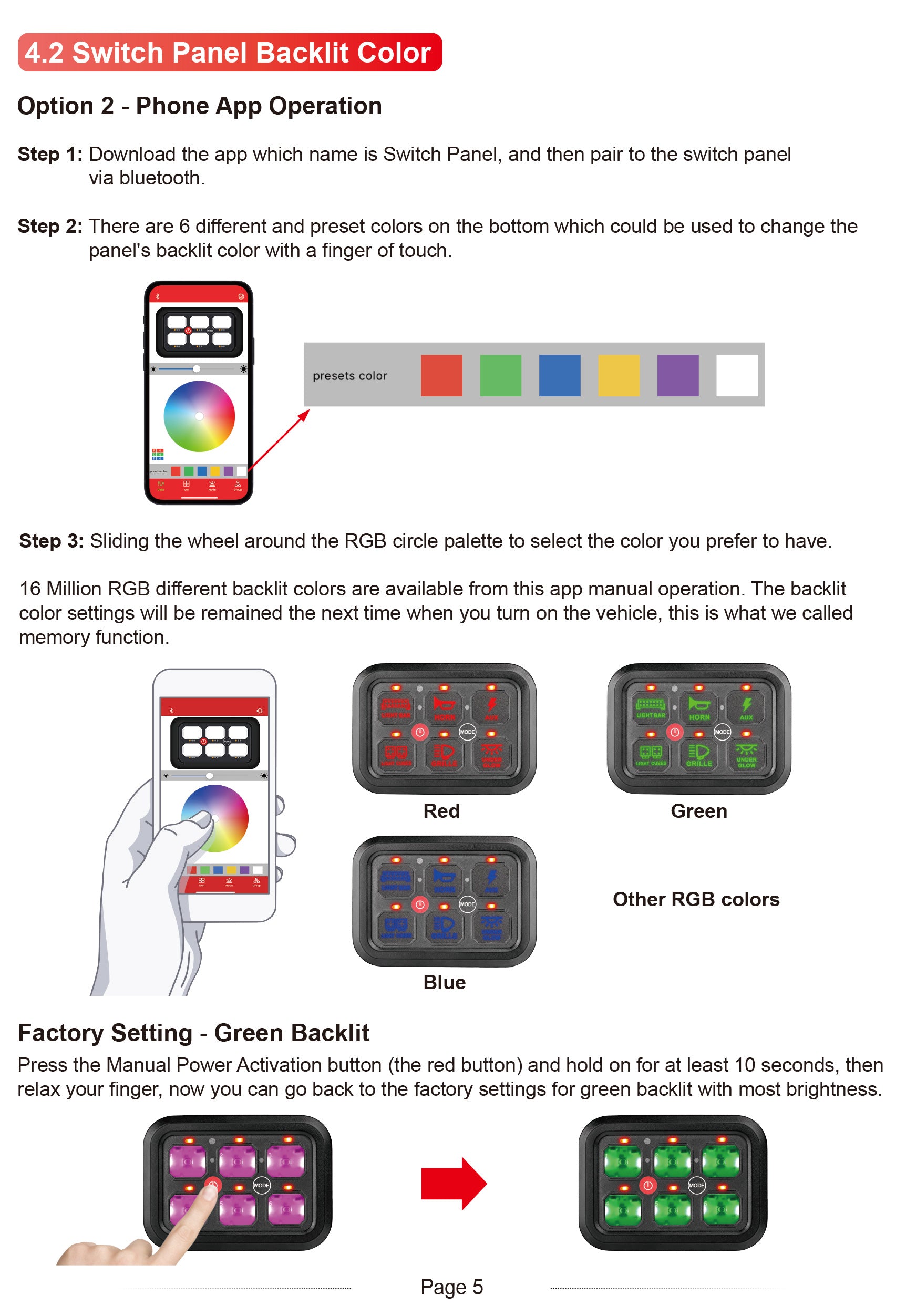

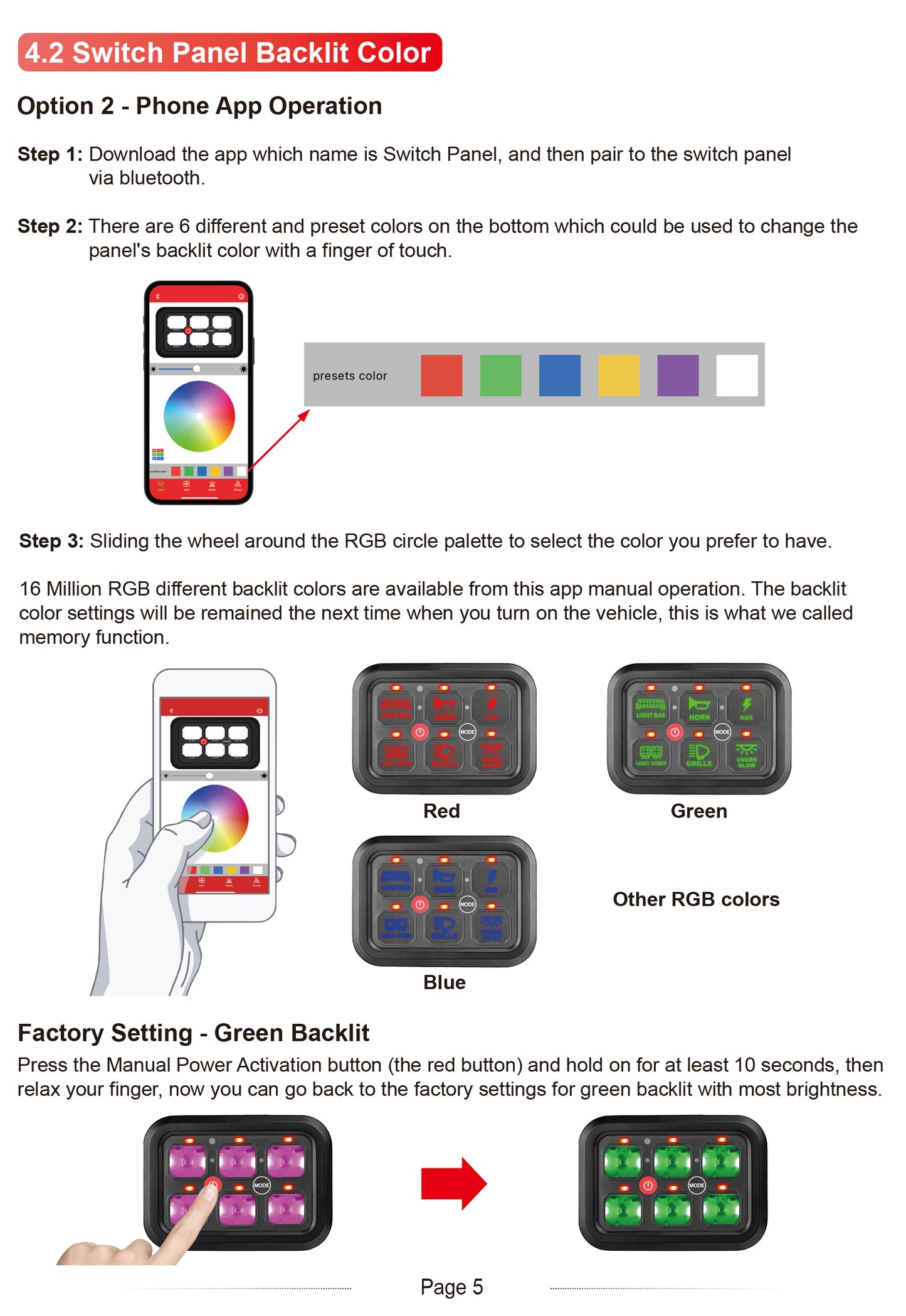

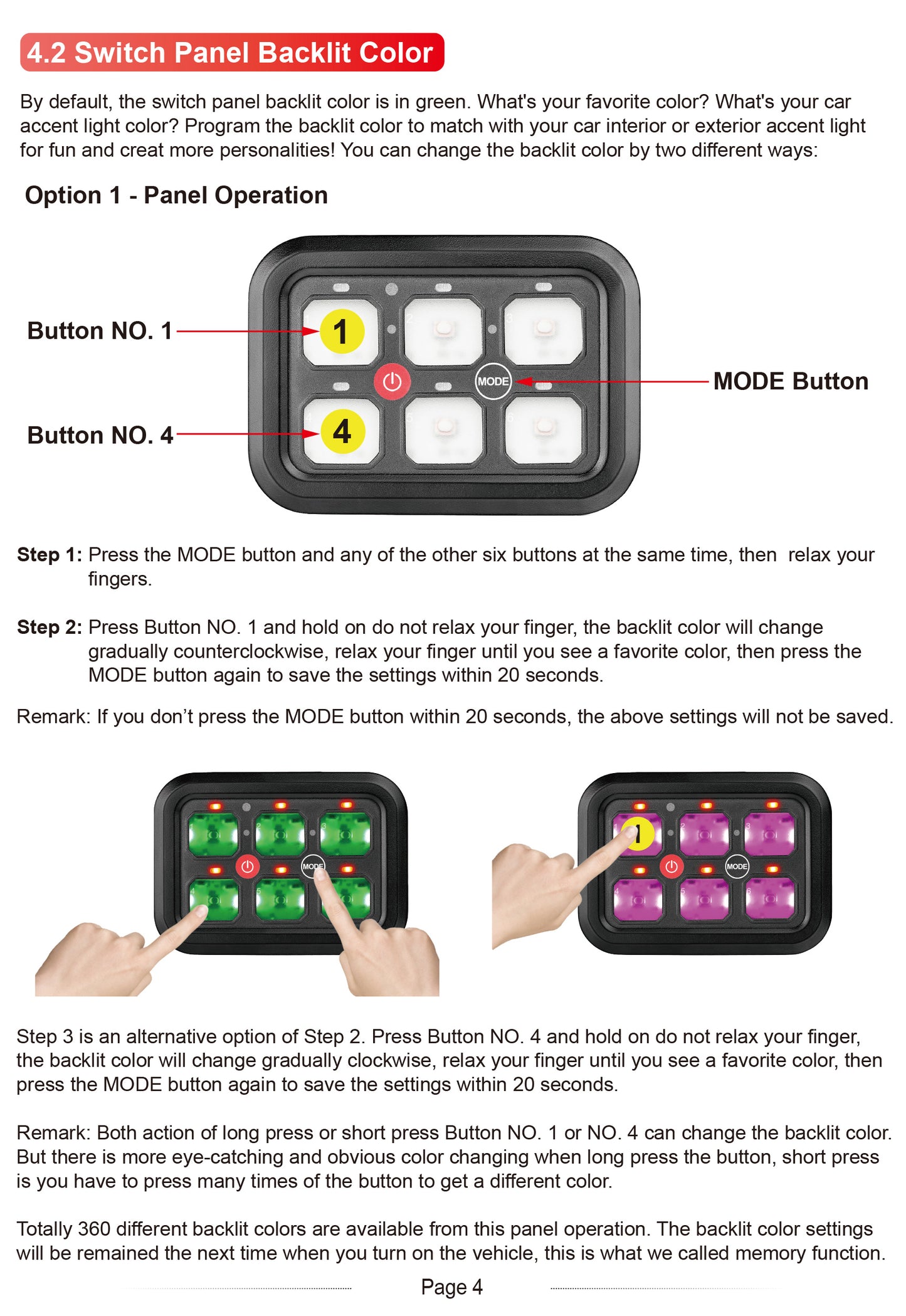

This switch panel's backlit color can be changed and modified via phone app or switch panel operation, there are totally 360 different backlit color choices can be operated via the panel itself, and over 16 millions RGB colors via phone app operation to fulfill your needs.

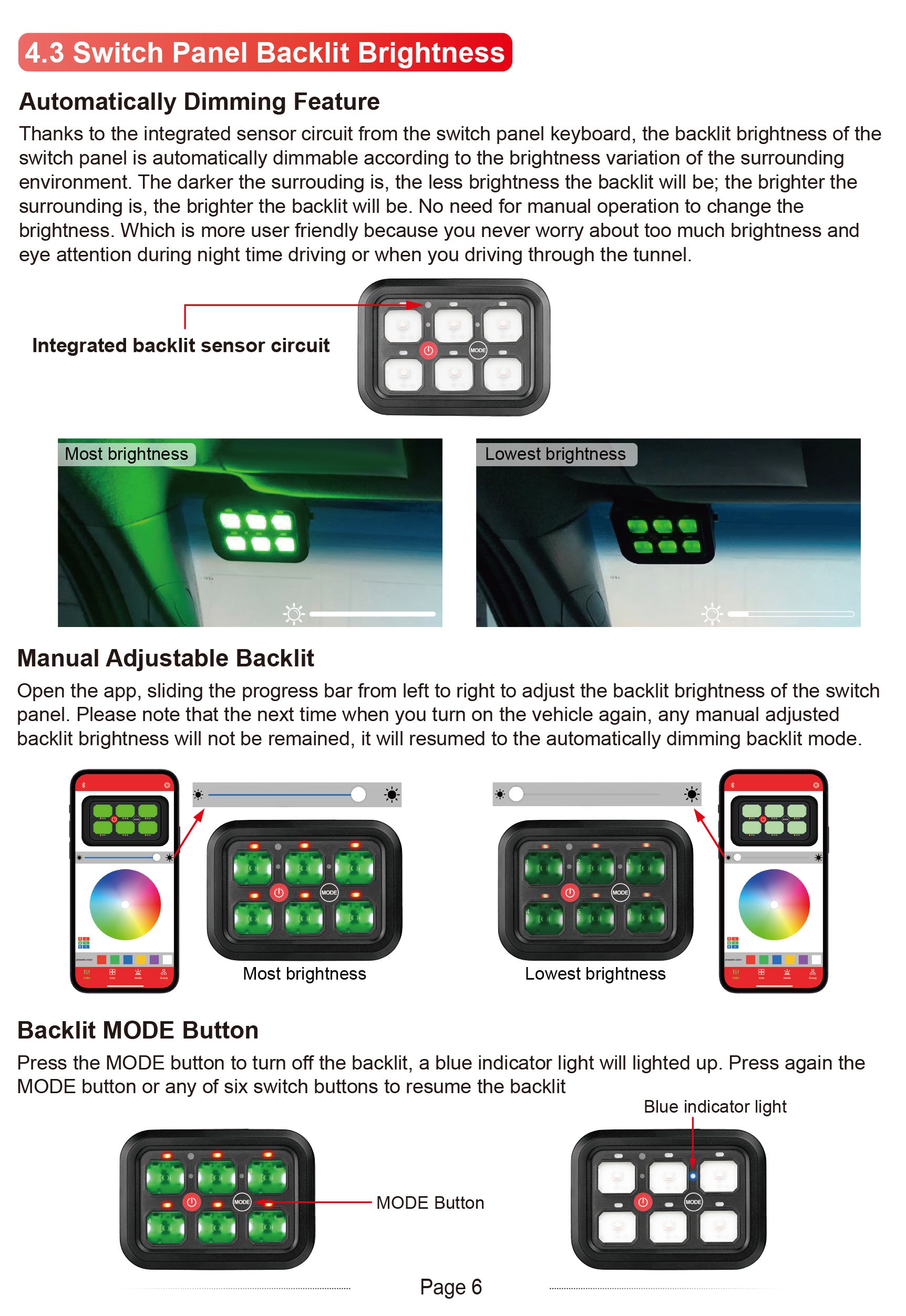

As for the backlit brightness, users can fix and set up the brightness via phone app control. It's also automatically dimmable.
Which means the brighter the surrounding is, the brighter the backlit brightness will be; and vice versa. In this case, users will never need to worry about too much brightness and eye attention during night driving.

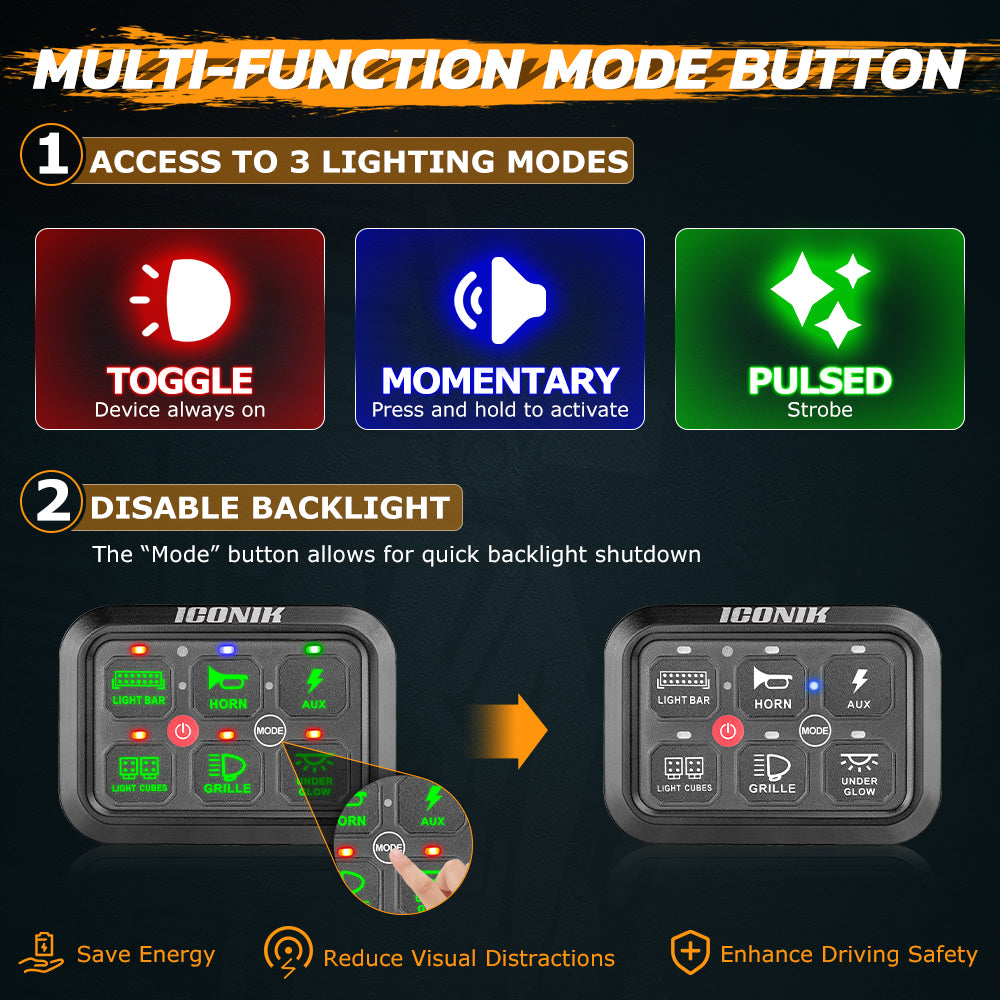

Toggle, and Pulsed Mode Function
What's the point of programmable? With this function, you can operate the switch panel and control the connected LED lights or electronic devices at your will.

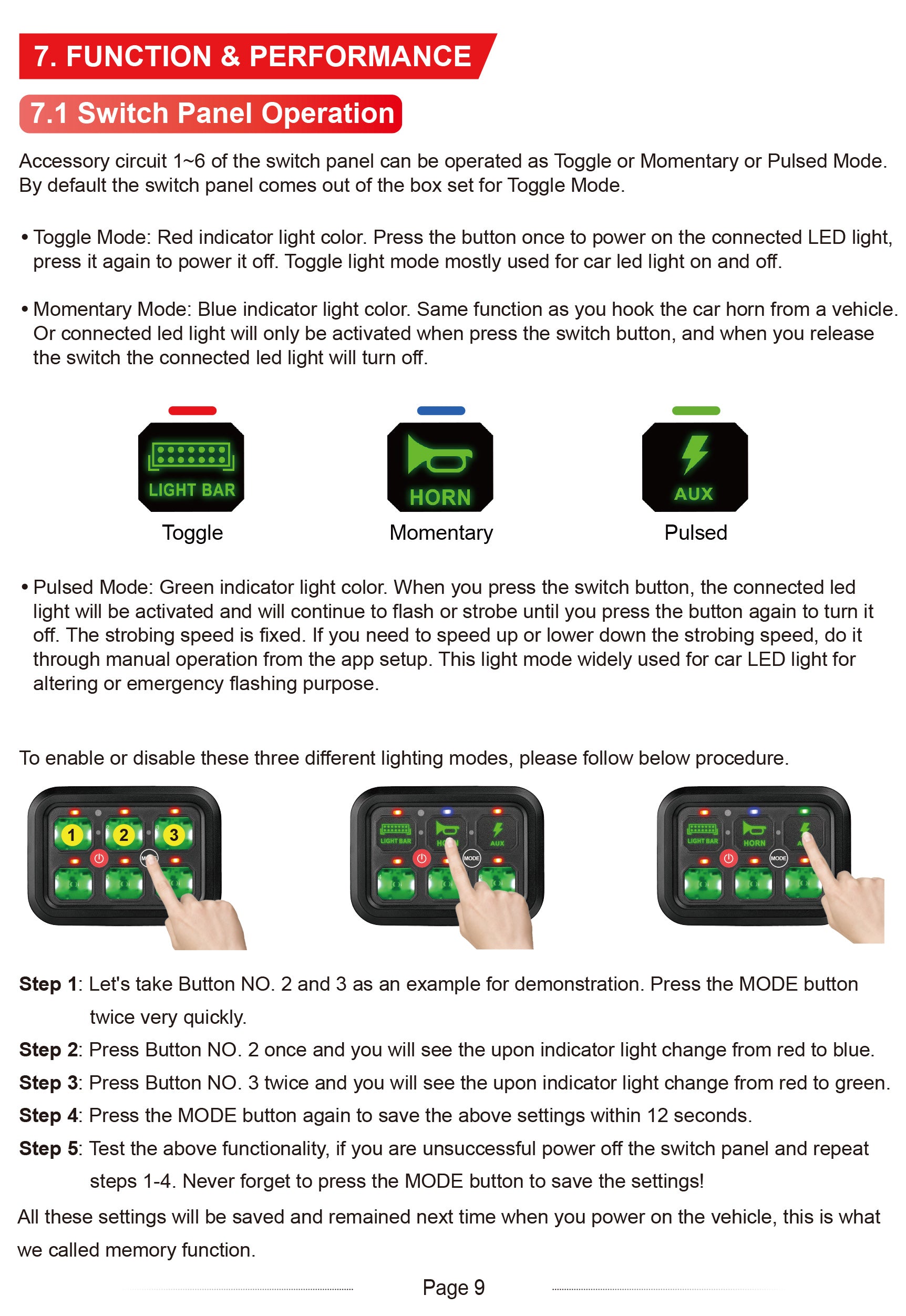

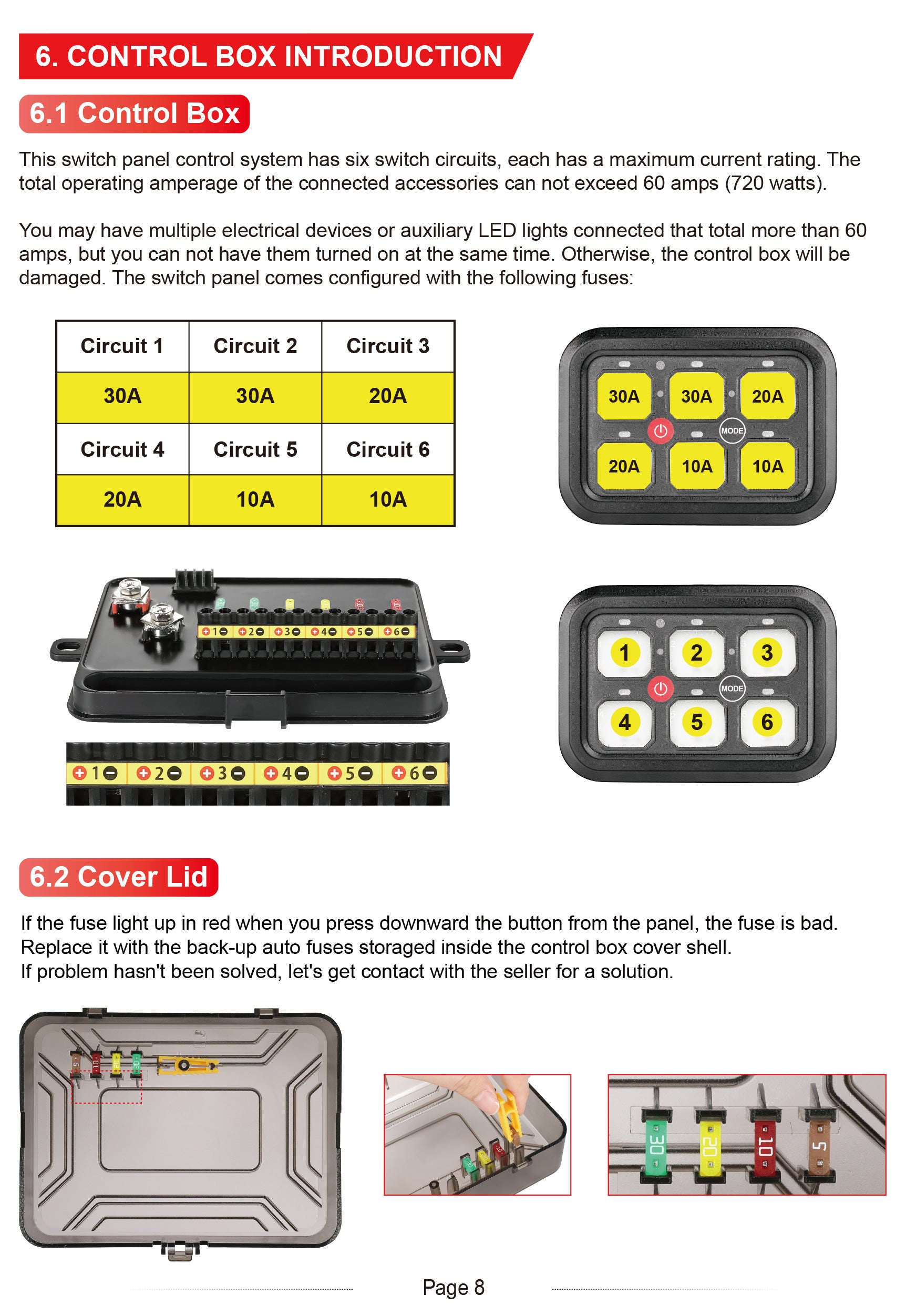

Accessories circuit 1-6 of the switch panel can be operated as Toggle, Momentary, or Pulsed mode, or set up with group function. By default, the switch panel comes out the box set for Toggle mode.
Toggle mode helps you to turn on and off the connected led lights, momentary mode mostly used for product such as horn, pulsed mode for strobing flashing needed LED warning lights or emergency lights. While the group function could let you to set groups with same light mode and same operation.
Widely Application

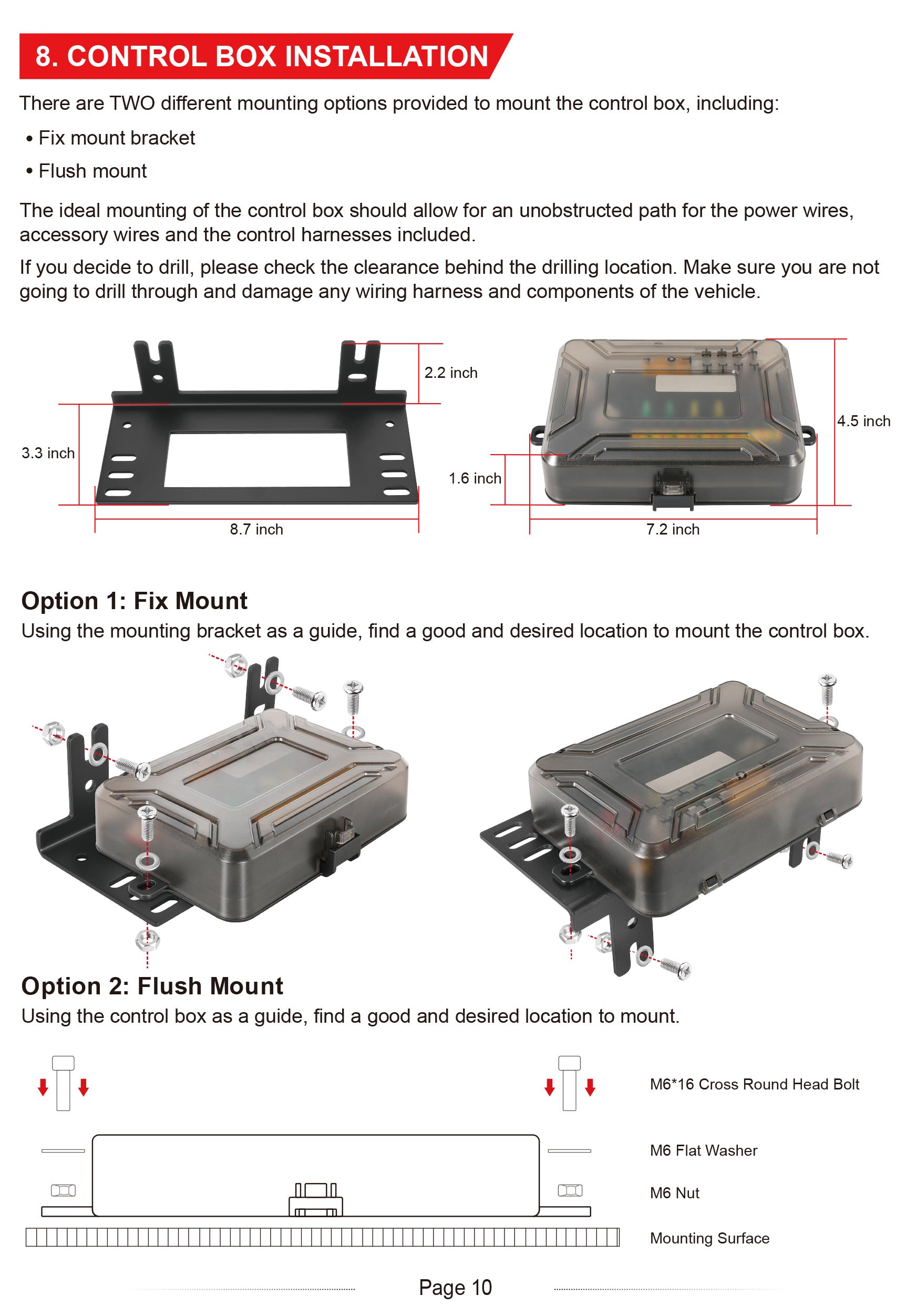

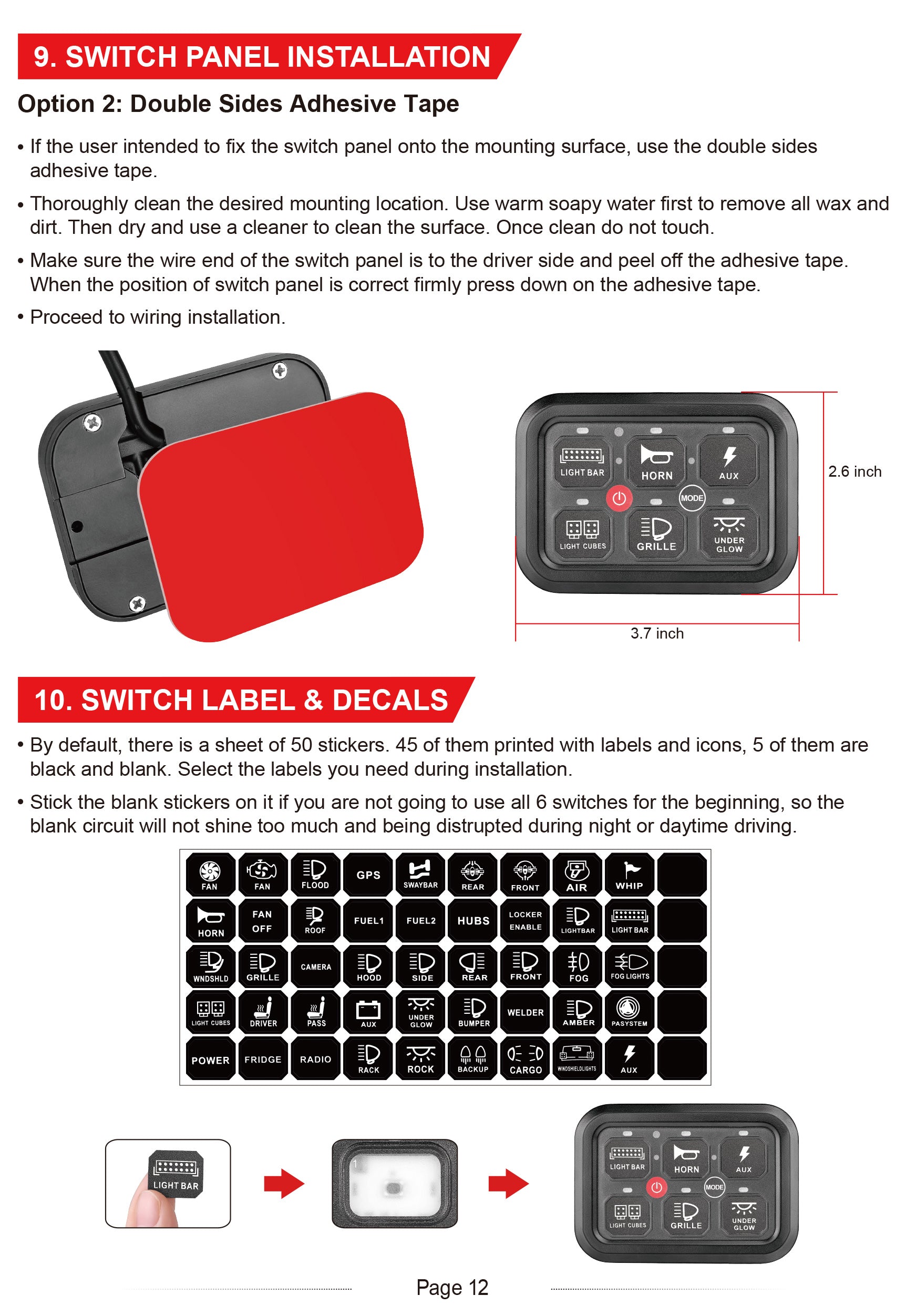

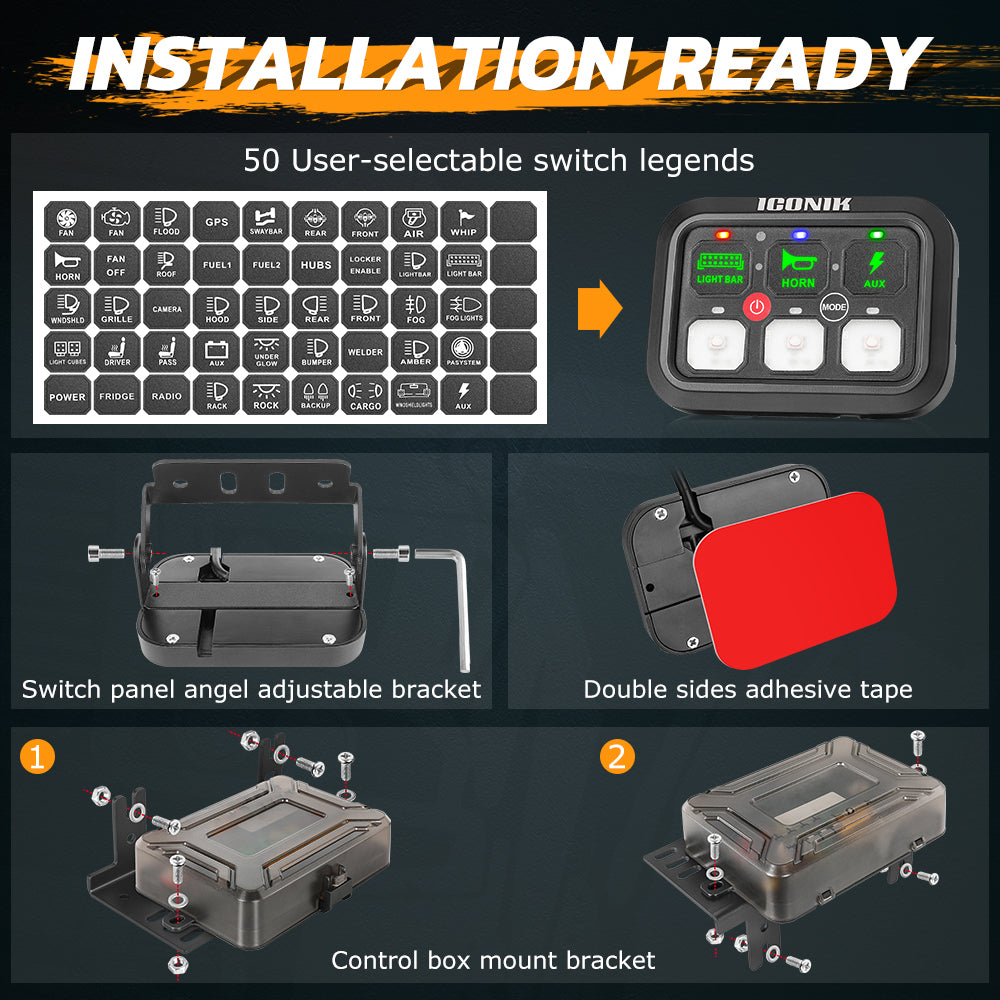

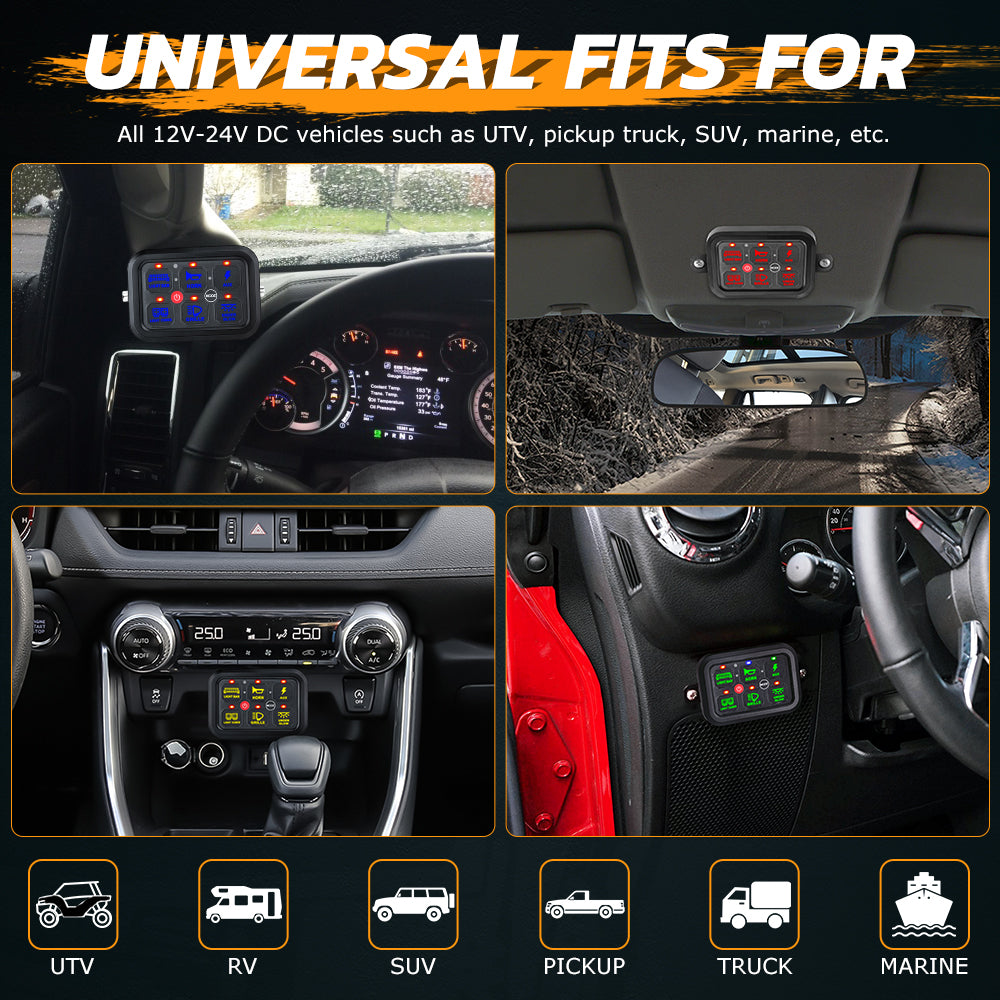

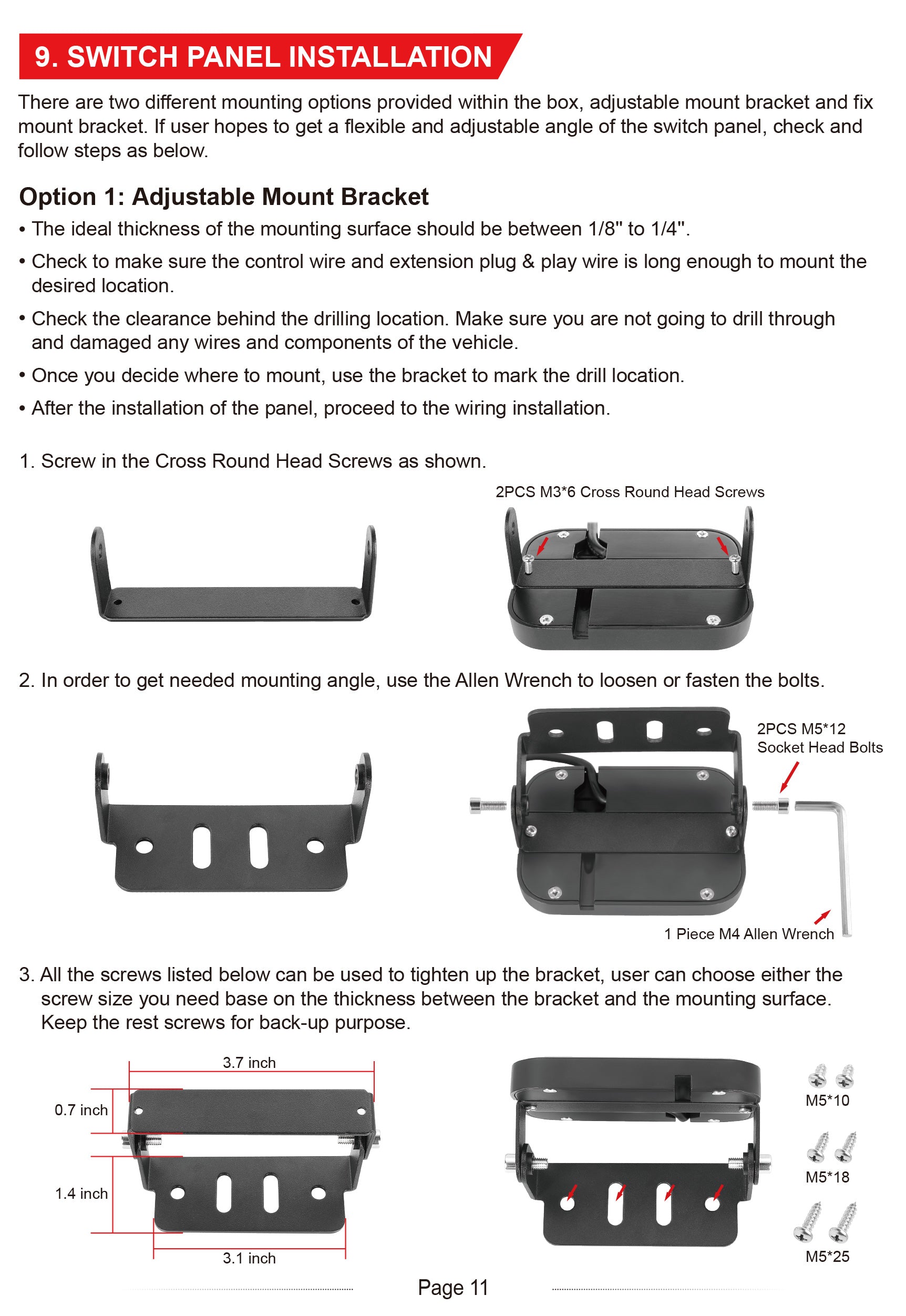

Available with flexible mount brackets. For most of the cases, end users could mount the switch panel overhead the rear view mirror or overhead liner, onto the dashboard around the steering wheel, embedding or inserting into the position nearby the car audio device, empty position between the driver and passenger, or even in the car trunk bed, etc. Yet we've done more than that! You can power on the switch panel with battery and take it anywhere you go!
Click HERE for power distribution system user guide

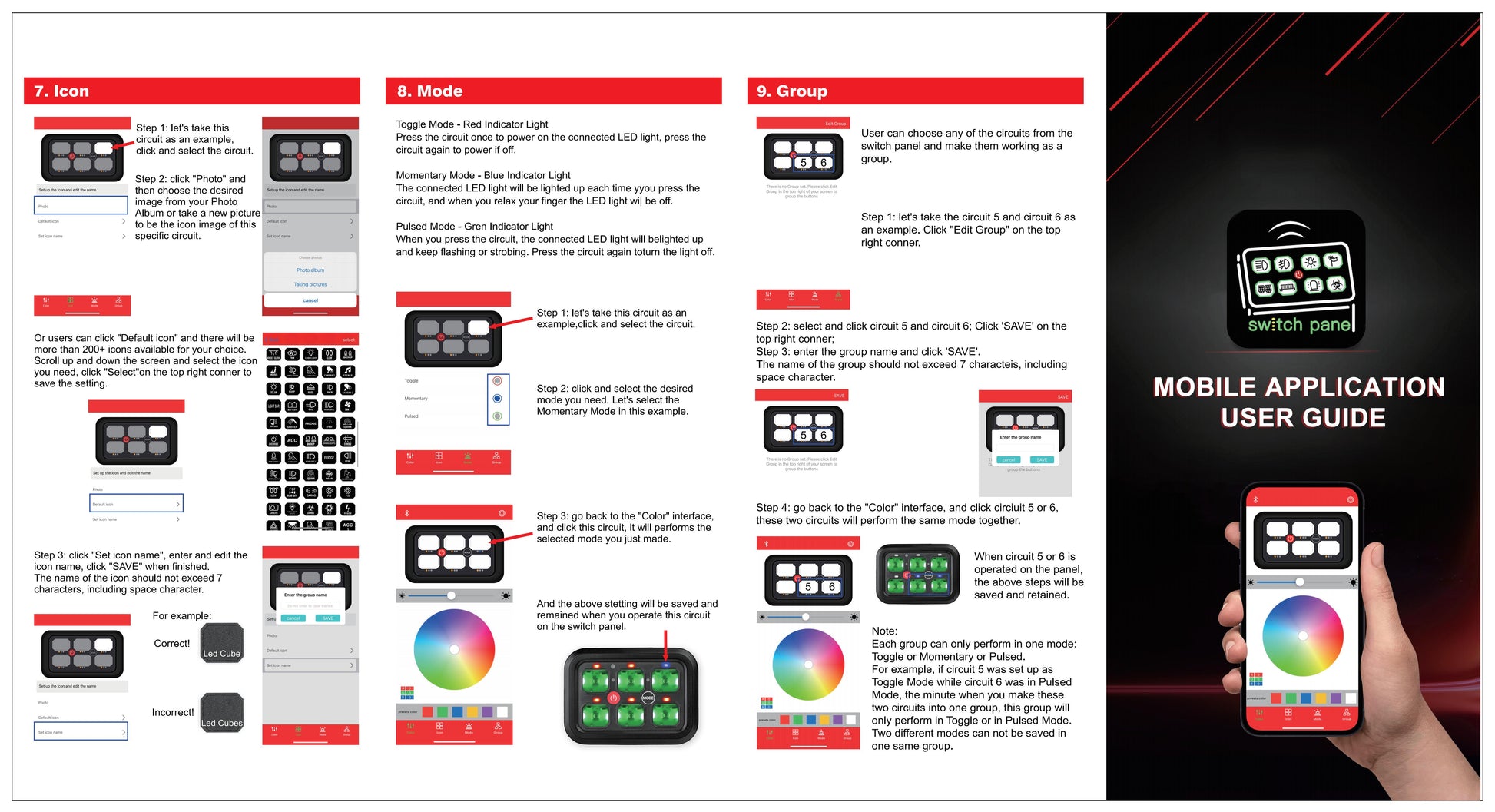

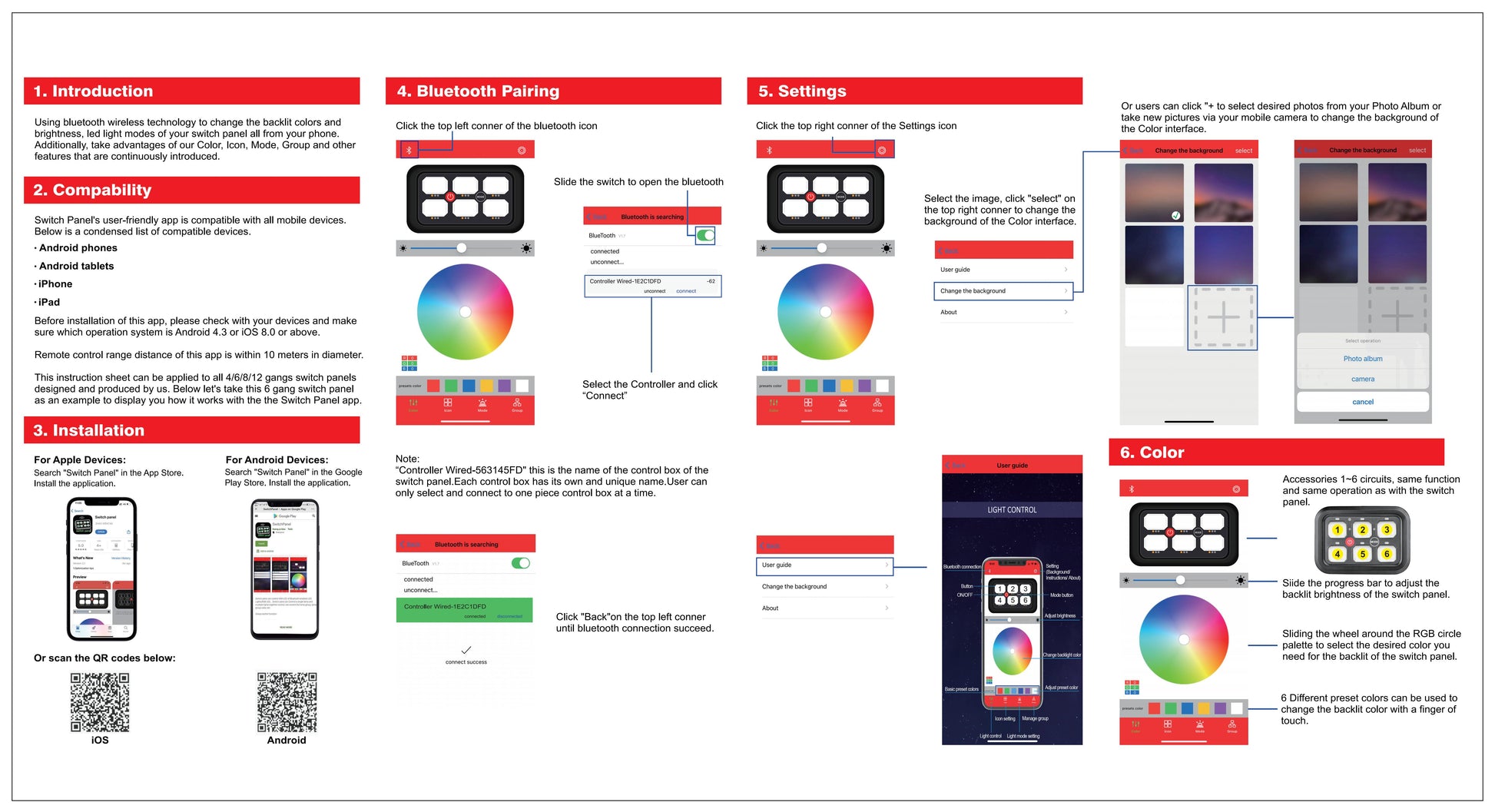

Click HERE for mobile application user guide
