8 Gang LED Switch Panel Without App Toggle function blue background light (No App and No Momentary/Pulsed function)

12 or 24 Volt Fitment

This complete package of power control system fits for all 12 volt or 24 volt vehicles, pickup trucks, powersports utv, boats and marines, suv, rv motovan, or other heavy duty machines.

Product Name

Switch panel control system

Input Voltage

12-24 volt

Power Capacity

720W at 12V, 1440W at 24V

Max. Current

60 Amps

Switch Function

Toggle mode

Backlit Color

Blue backlit

Backlit Brightness

Manual adjustable

【Product Advantages】

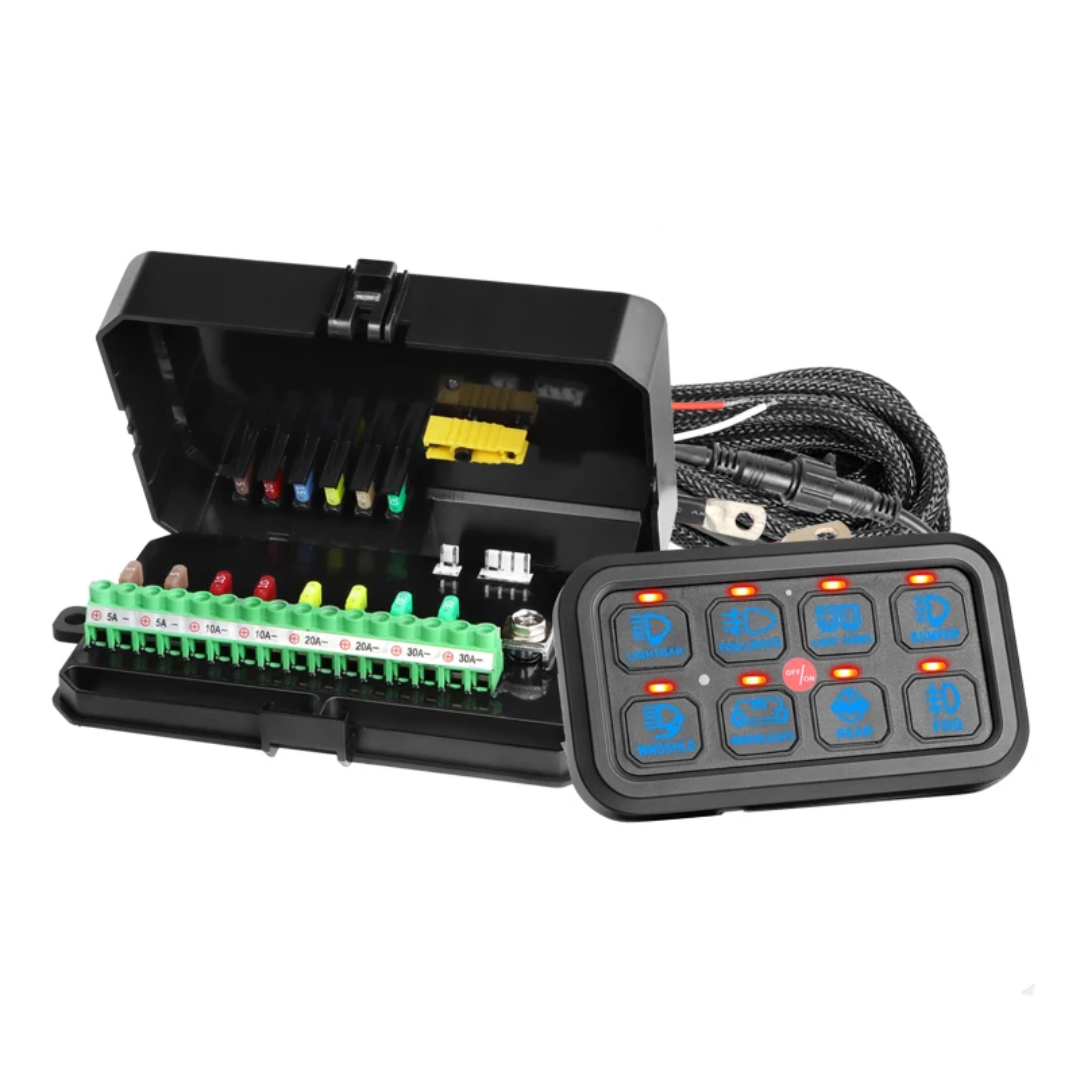

This switch panel power distribution system makes installing aftermarket led lights or electronic car devices or camping devices so much easier! It offers perfect solution to clean up all wiring harness mess through a single panel and compact size circuit control box. This car switch panel allows you to connect and control multiple auxiliary offroad LED light bars or LED fog driving lights or other electronic devices once a time.

【Toggle Light Mode】Accessories circuit 1-8 of this automotive switch panel can be operated as Toggle light mode. Which helps you to turn on and off the connected led lights quickly.

【Blue Backlit Color】

There are FIVE different levels of the backlight brightness of this 8 gang switch panel power system which could be set up via the smaller size white cable given in the package. End users could wire the white cable to, for instance, the parking light, when the switch panel is powered on with ignition you pull the parking light switch to adjust the brightness. Pull it five times and you will get five different backlit brightness. Turn off the ignition until you get the brightness you need. And next time when you turn the ignition back on, you will get the brightness of your last setting.

【Safety and Durability】

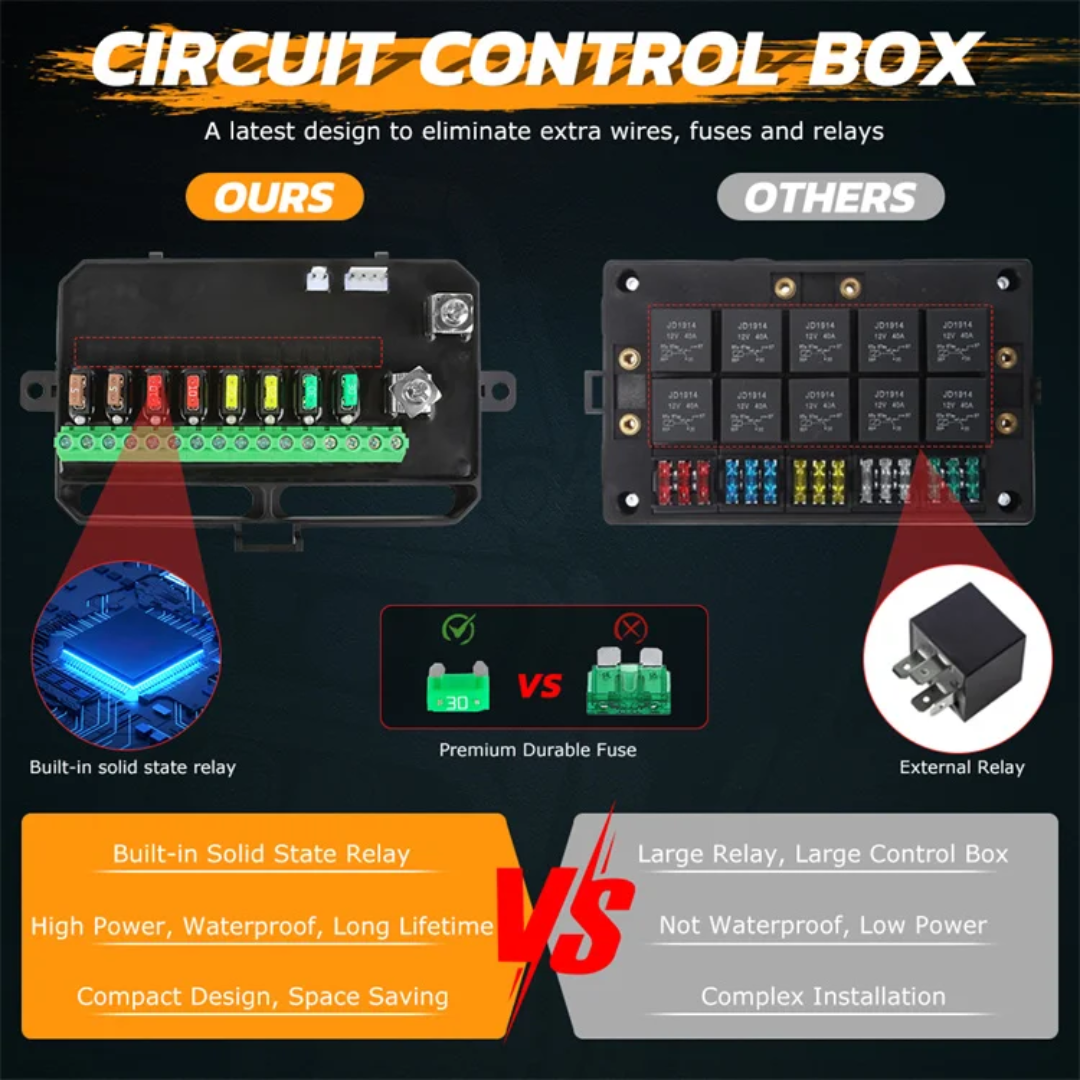

Each switch panel control system includes a variety of safety features that help to protect against electrical faults. With an integrated overload protection system and resettable 60 Amps circuit breaker, it will automatically disconnect when the temperature is too high. Reverse polarity protection, over-voltage protection and over-current protection.

【User Selectable Switch Legends】

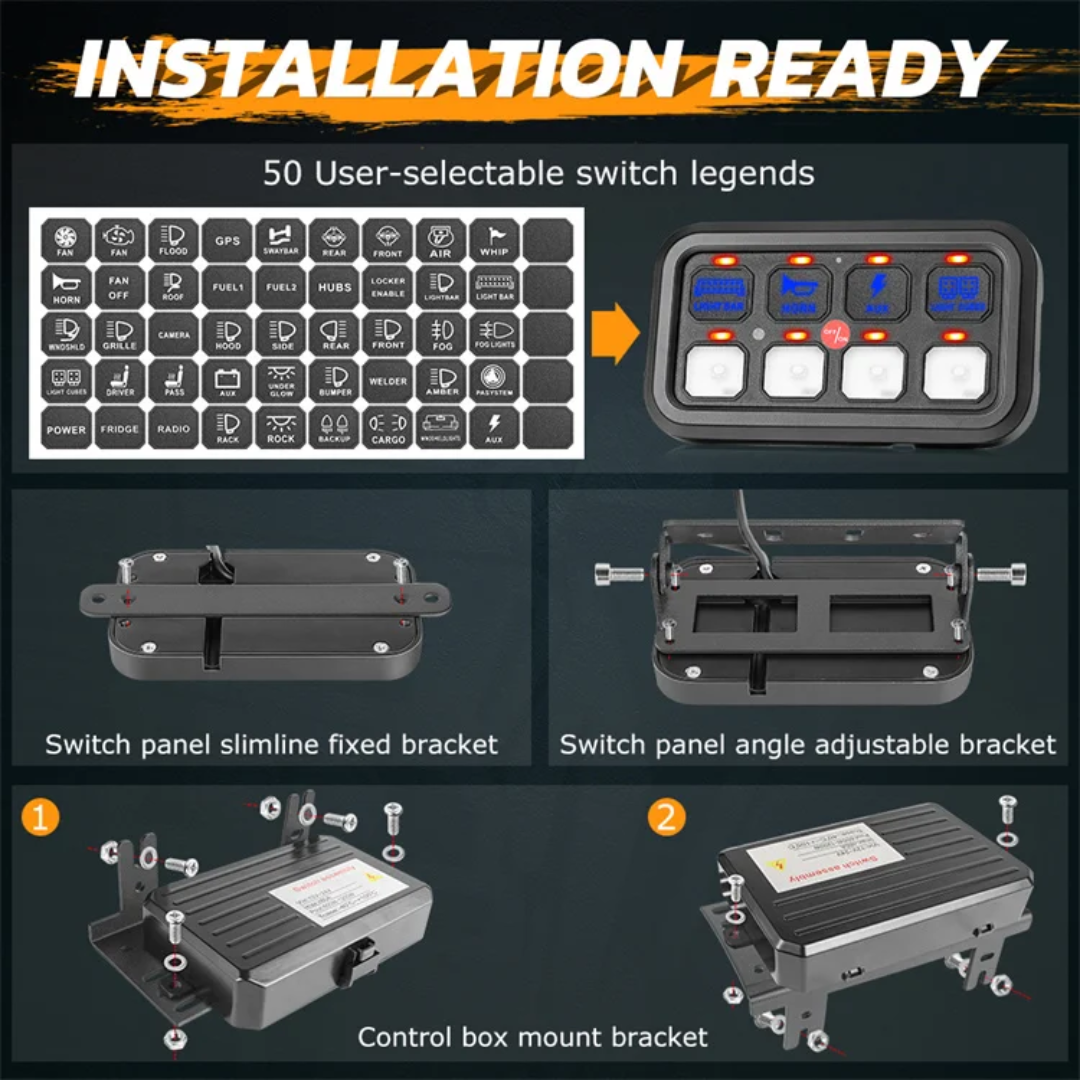

By default, there is a sheet of 50 stickers coming with the package of this switch panel with electronic relay system app. 45 of them are printing with labels and icons, 5 of them are black and blank. Users could select the needed legends while installation, and stick the blank sticker on it if you are not going to use all 8 switches for the beginning, so the blank circuit will not shine your eyes and beging disrupted while driving.

Users could also DIY and name each circuit with personal images or pictures from your cell phone while operating the switch panel rgb function with the phone app control.

【Universal Fitment】

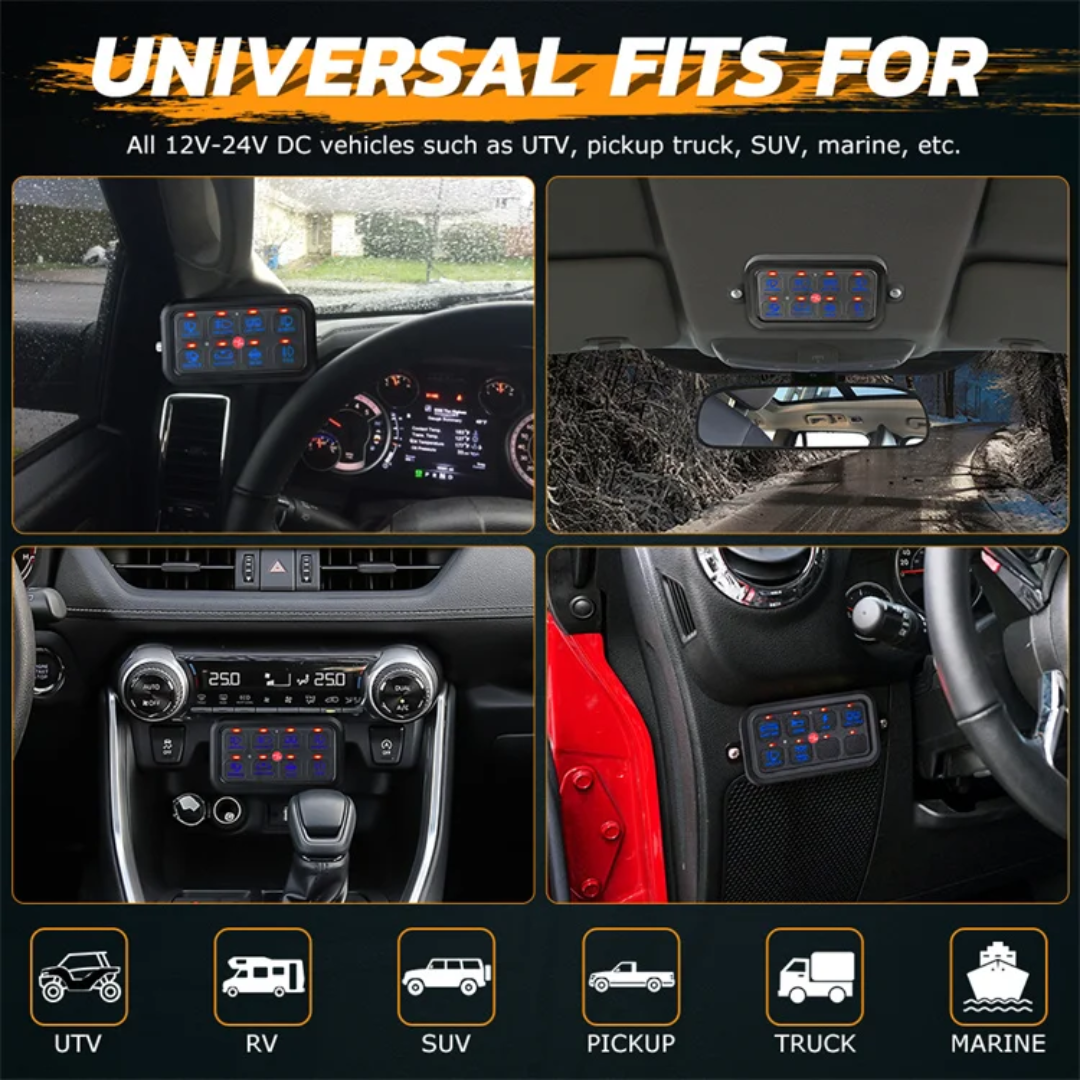

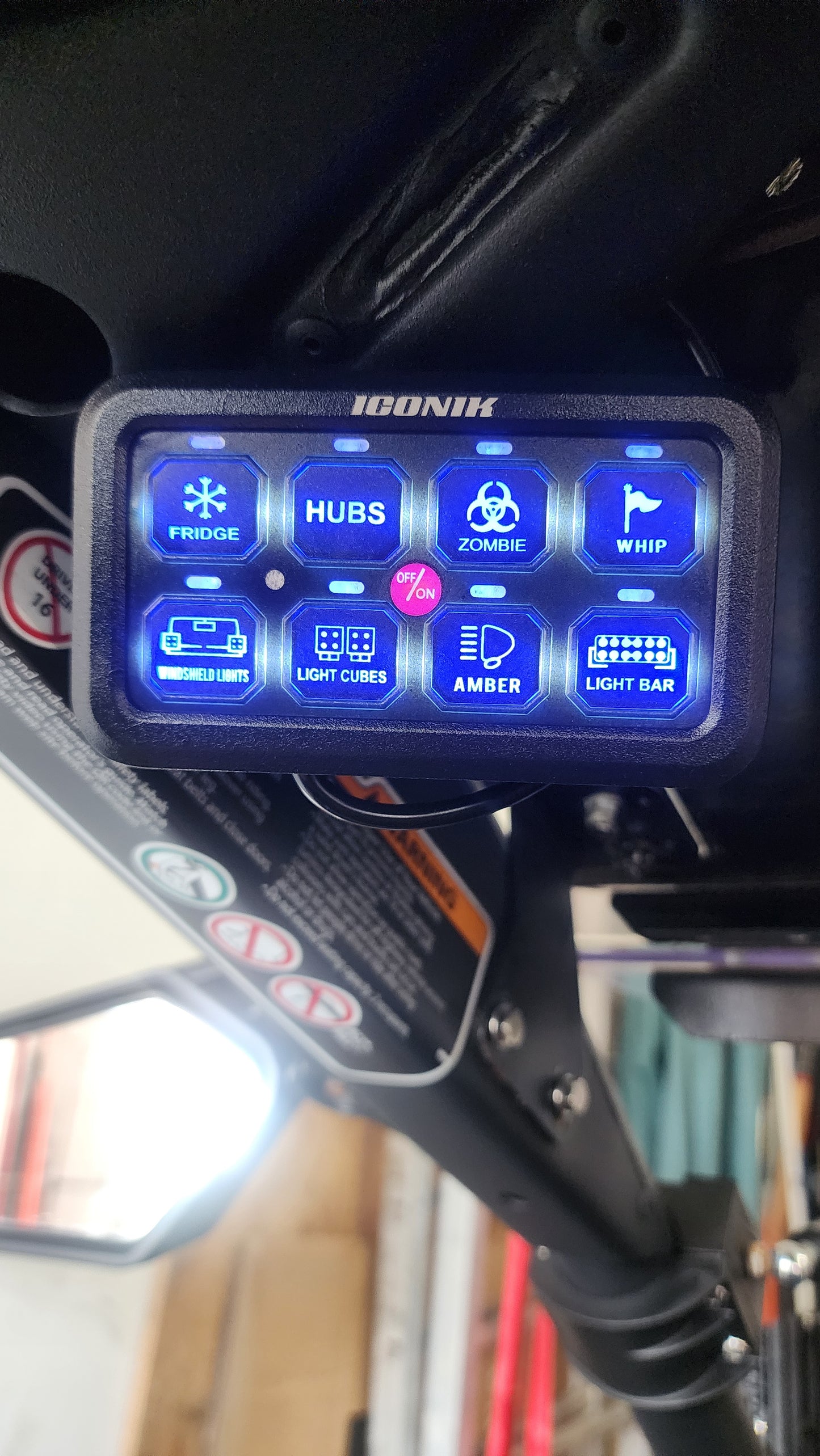

Available with flexible mount brackets. For most of the cases, end users could mount the switch panel overhead the rear view mirror or overhead liner, onto the dashboard around the steering wheel, embedding or inserting into the position nearby the car audio device, empty position between the driver and passenger, or even in the car trunk bed, etc. Yet we've done more than that! You can power on the switch panel with battery and take it anywhere you go!

FAQ

Check below frequently asked questions, if you have any further questions or needs more supports from us, please click Send Inquiry and chat with us online right now!

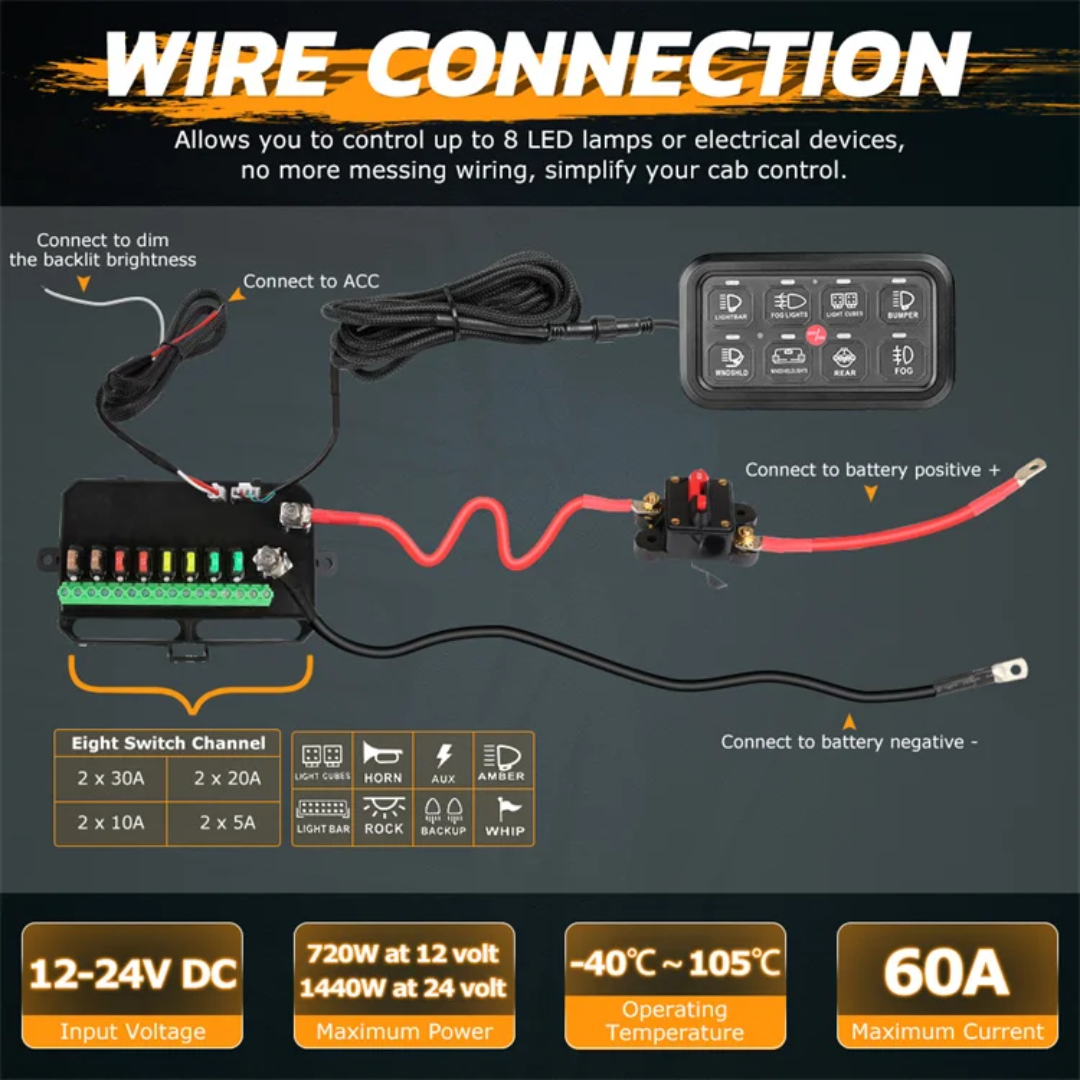

Question: Why should I connect the small red color wire cable to the Ignition Power, or say ACC? Why not directly to the battery positive post?

Answer: Avoid draining off the battery power when the vehicle is powered off.

Question: If I turn off the switch panel, will it remember my last setting after I restart my vehicle?

Answer: Yes, it does.

Question: Can I switch the fuse of 20amps to the position of 10 amps circuit?

Answer: This is not recommended. Each circuit is fixed with maximum current.

Question: How do you connect to the connectors numbered 1-8?

Answer: The control box itself has the connection pieces already made on it, just slide your wires in and squash the connection pieces.
