Why switch panel power system?

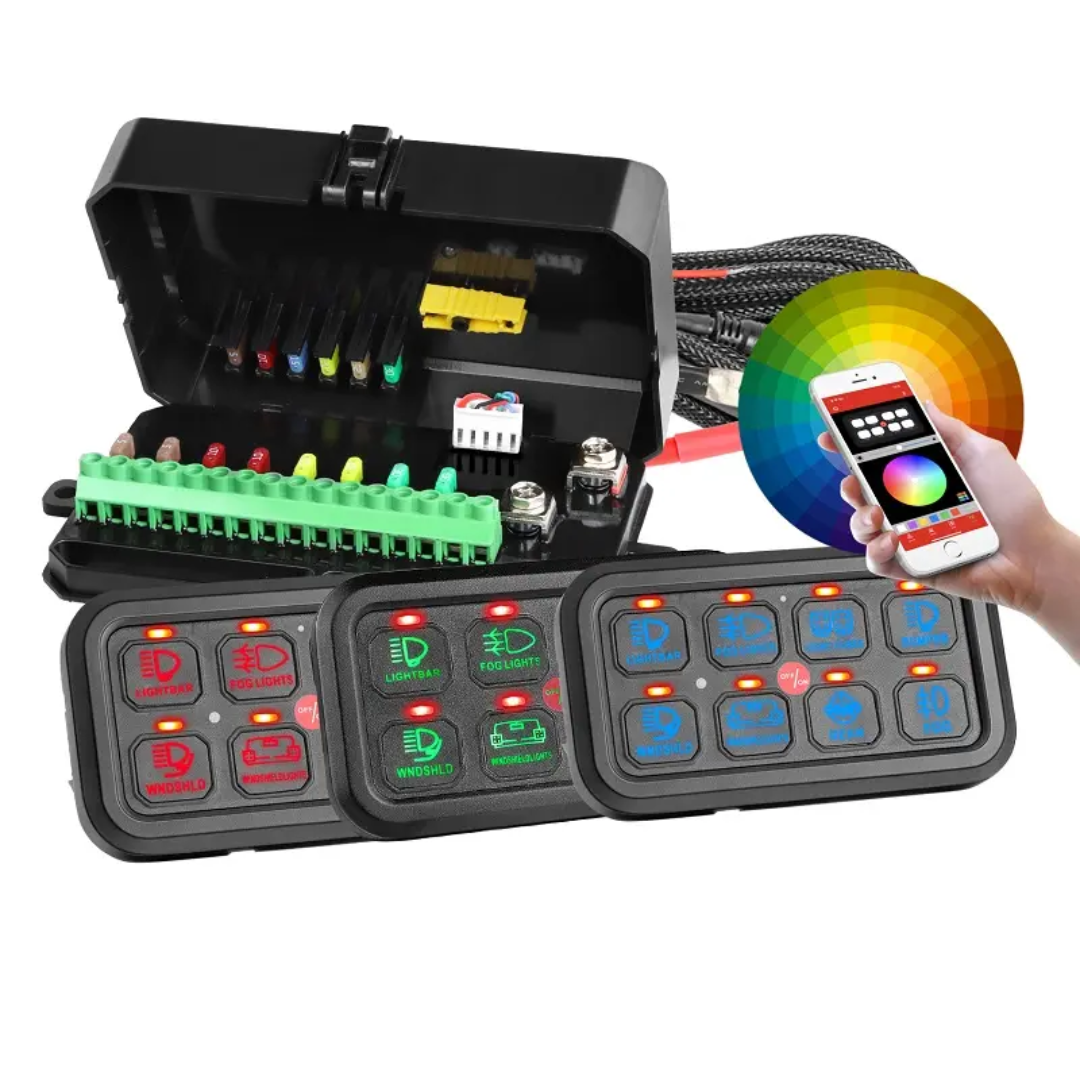

This switch panel power distribution system makes installing aftermarket lights so much easier! It offers a perfect solution to clean up all wiring harnesses through a single switch panel and compact size control box. This rgb 8 gang switch panel mobile allows you to connect and control 8 car auxiliary led lights or electronic devices once a time.

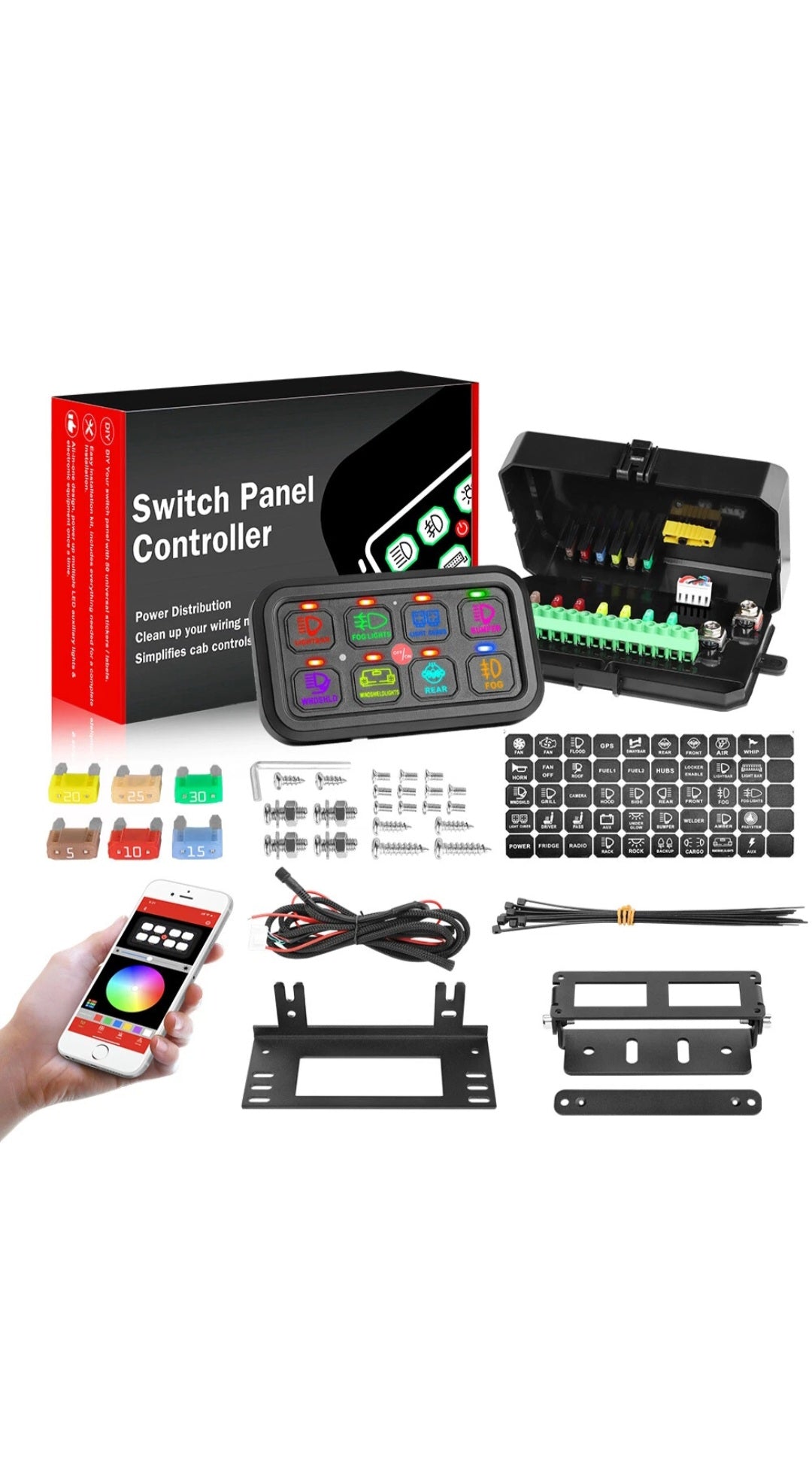

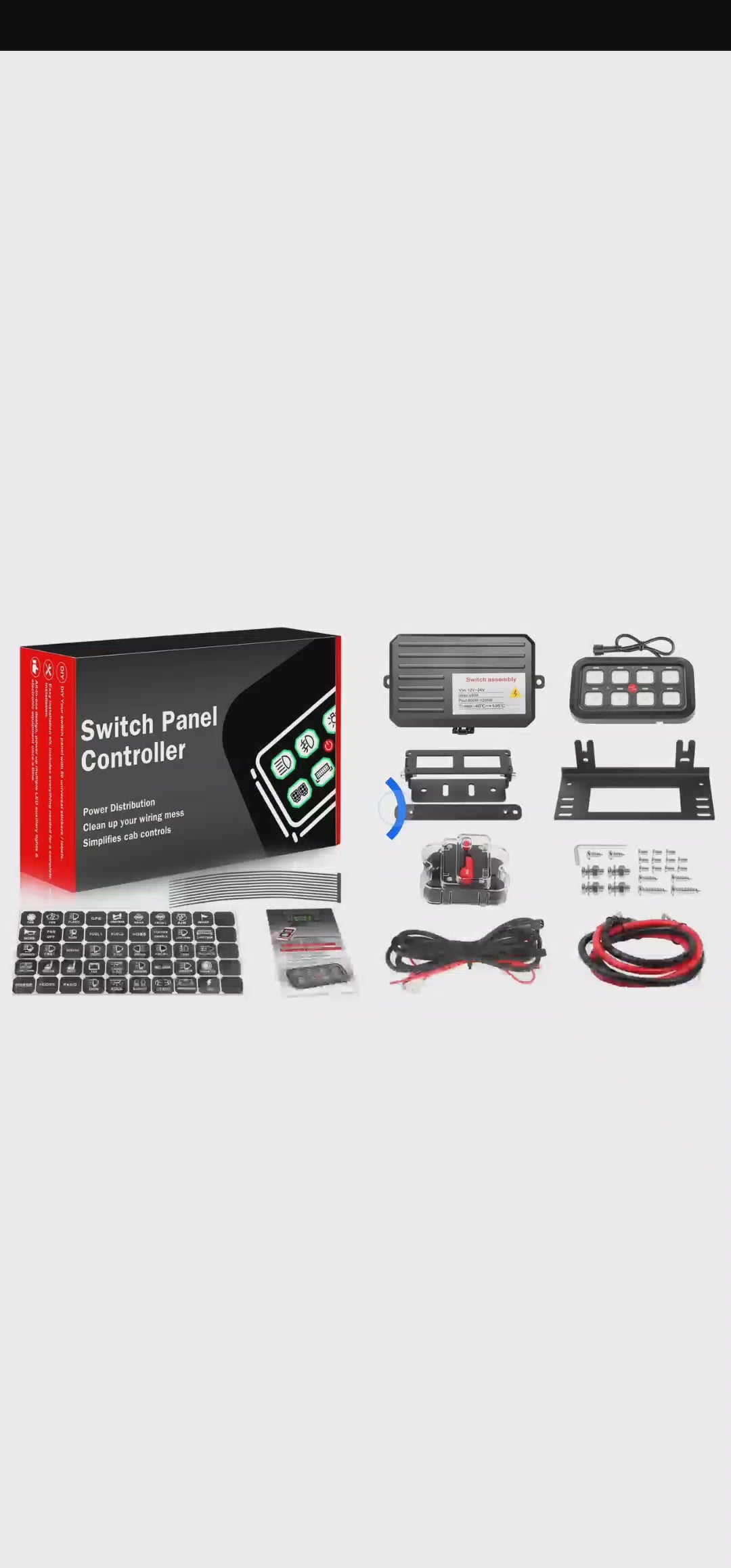

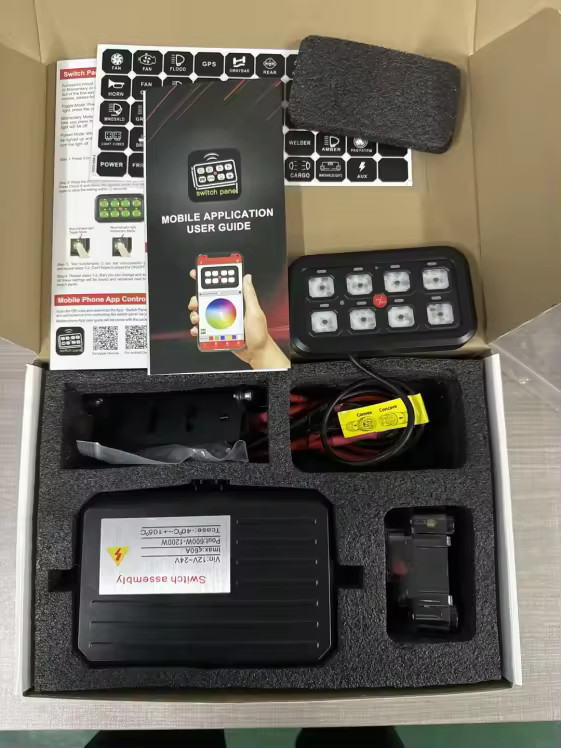

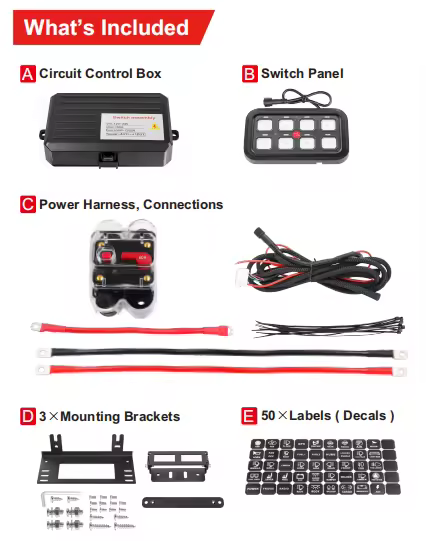

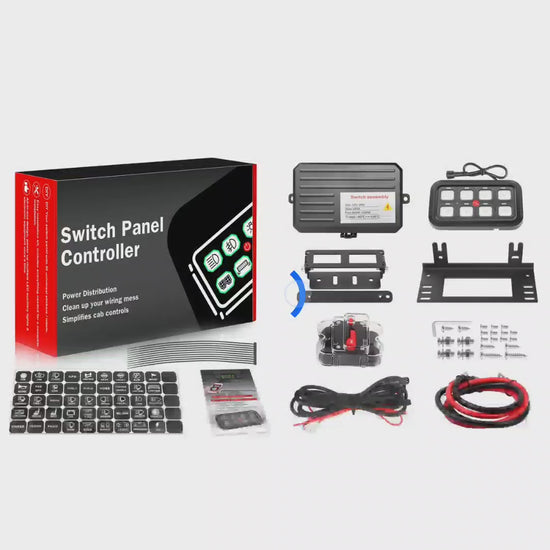

What's In the Box:
(1) Switch panel
(2) Switch panel mount brackets
Switch panel extension wire
Switch panel harness

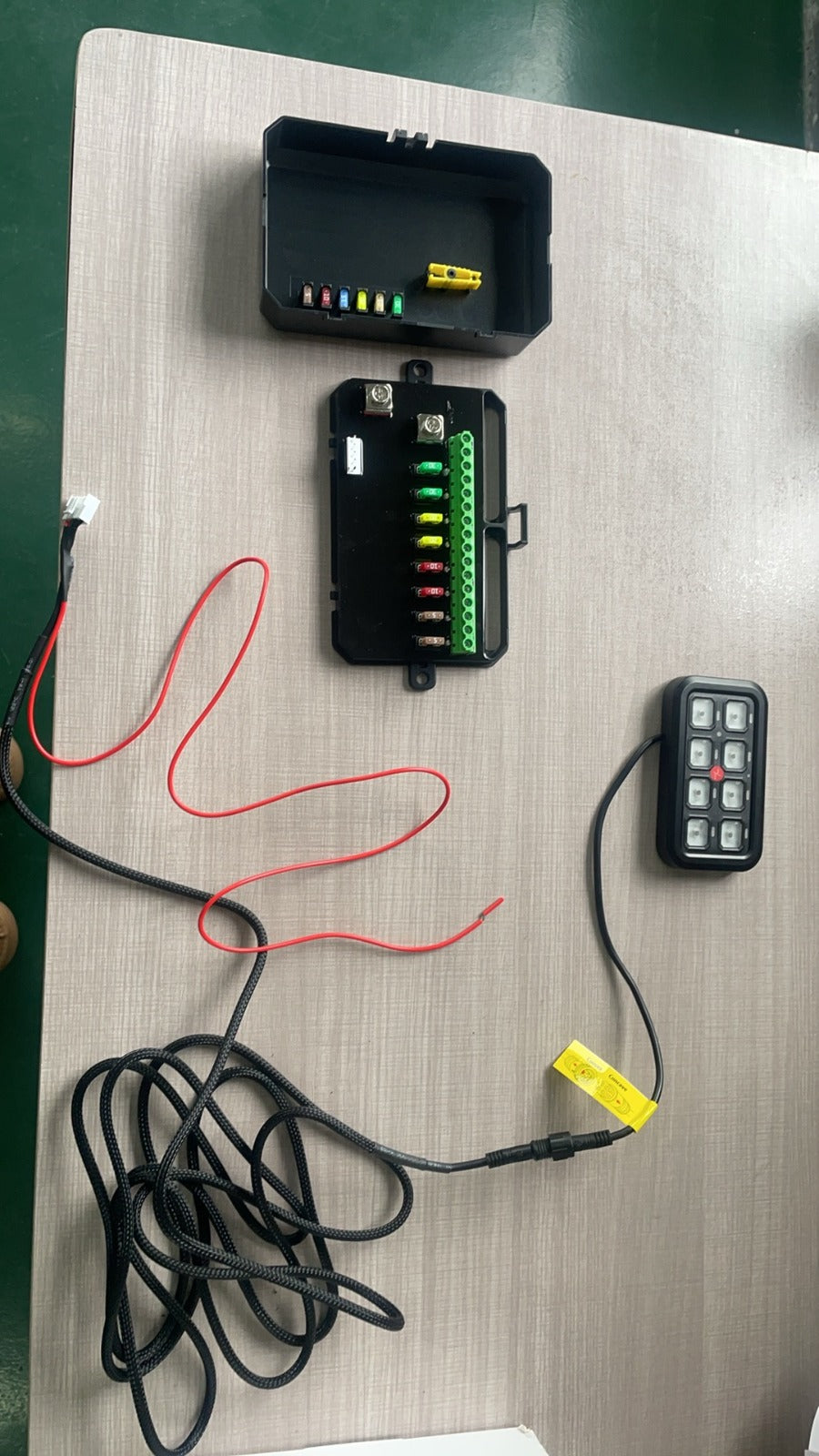

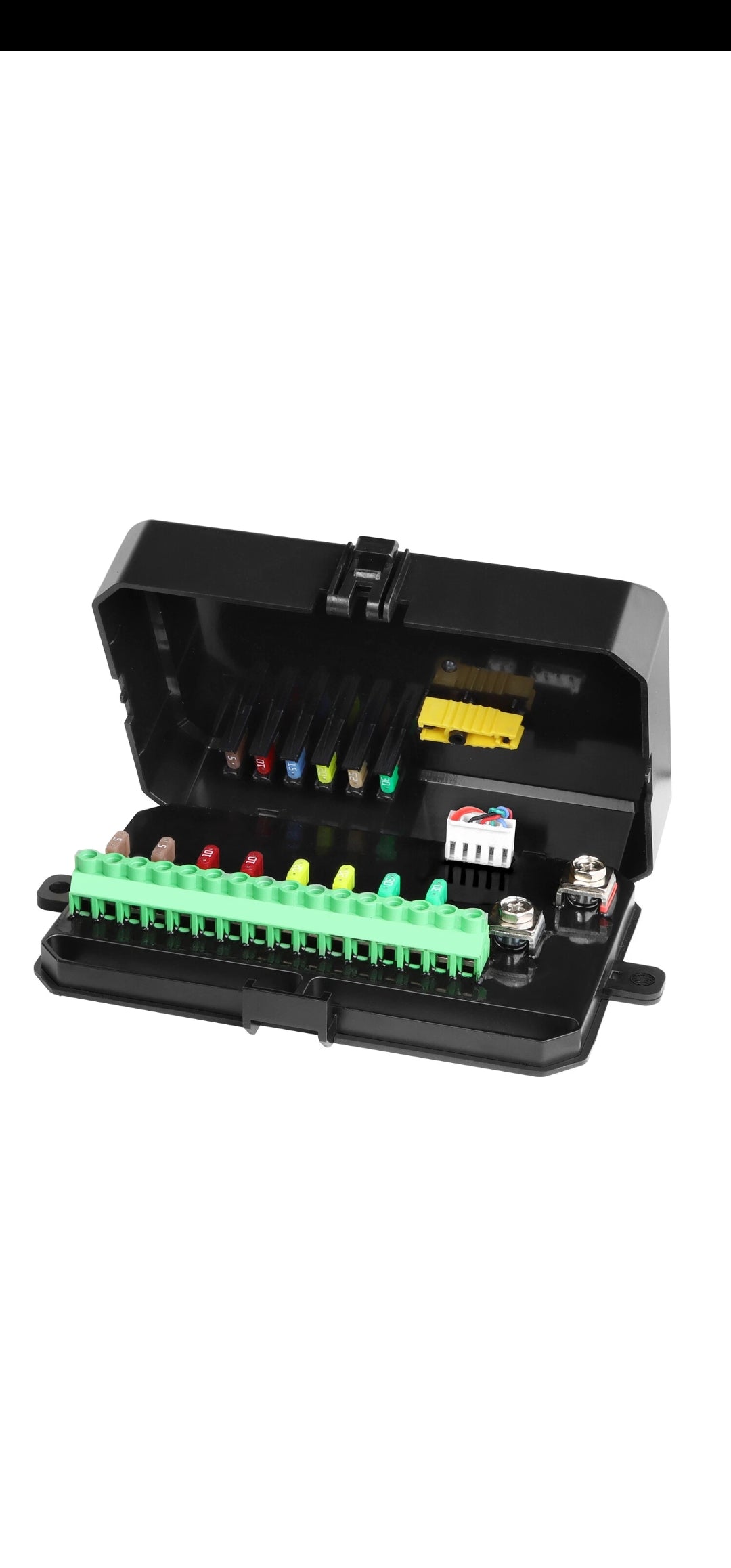

(1) Control box

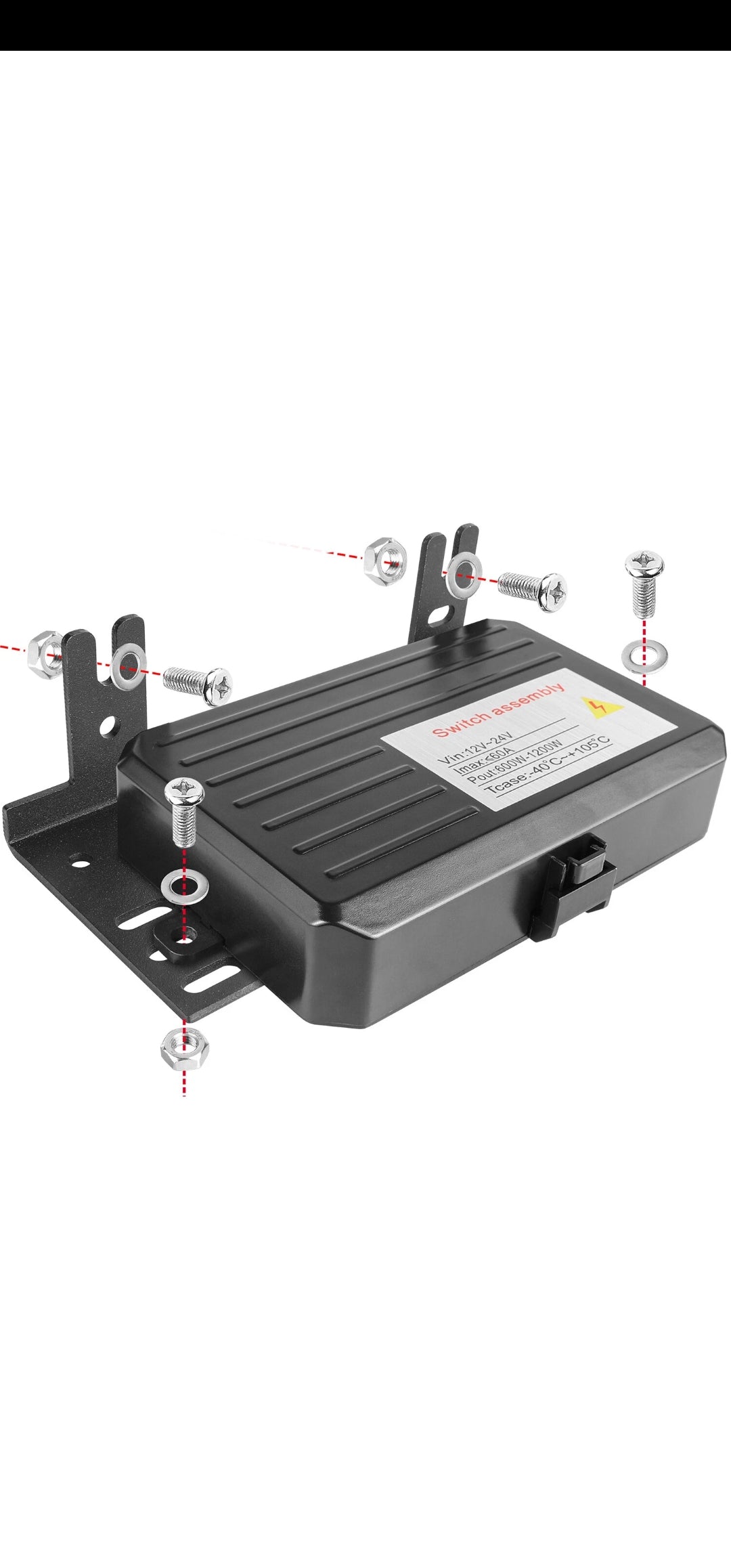

(1) Control box mount bracket
Control box power harnesses

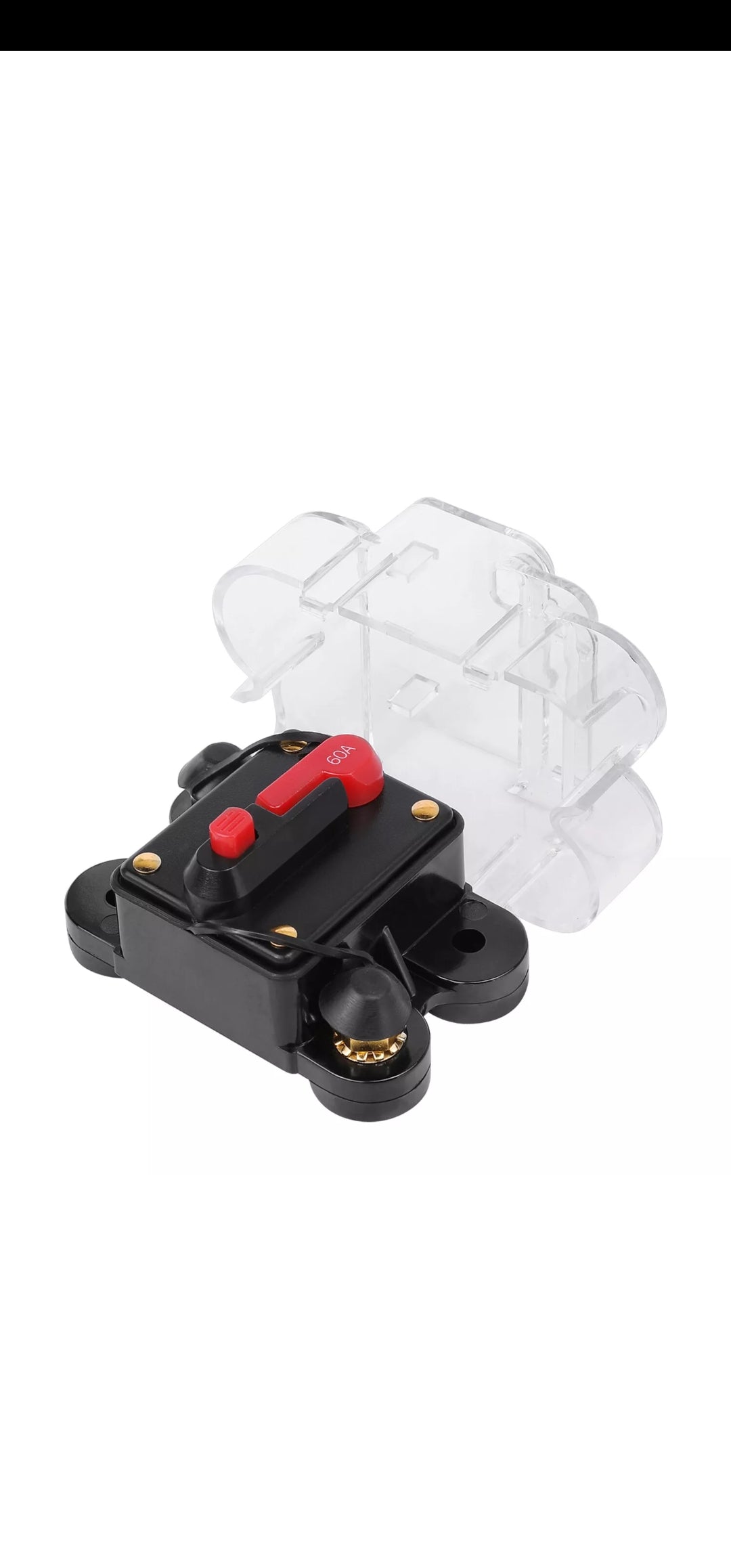

(1) 60 Amps circuit breaker
(6) Back up auto fuses
50 Switch labels
Mount hardware and zip ties

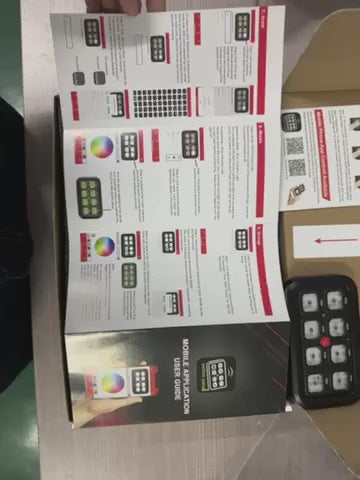

Installation sheet
What's the most advantages of this switch panel?

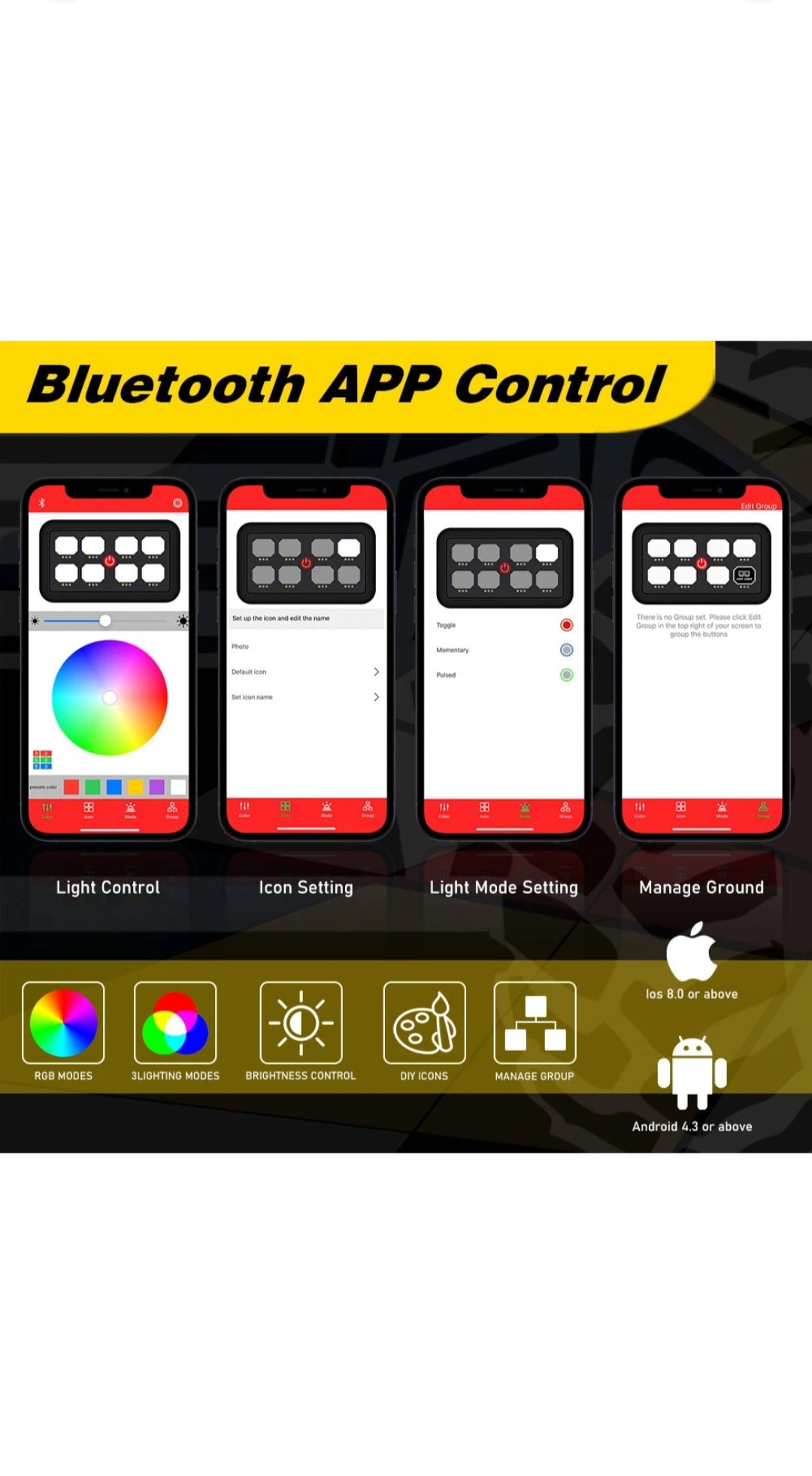

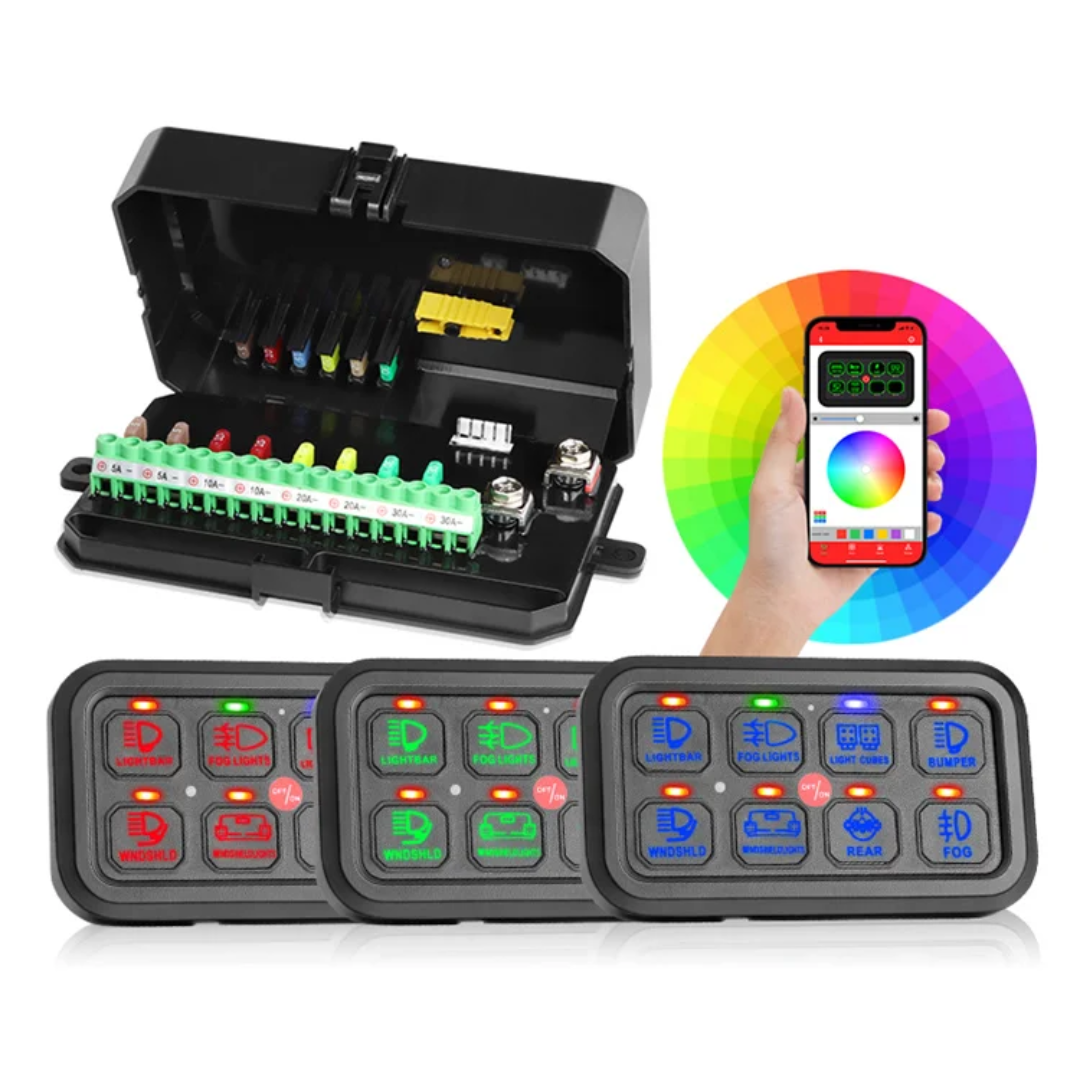

Comparing with those blue or green backlit switch panel boxs on the current market, the biggest advantages of this rgb 8 gang multifunction switch panel is programming and control via panel or smart phone, blue tooth interface. The app name is Switch Panel. Users can download it from phone app store directly. For example, if users connecting eight led lights to the switch panel, you can turn these lights on or off inside the cab where you mount the switch panel, or you can step outside the car, power the lights on or off even in 10 meters away via just a finger touch on your phone app.

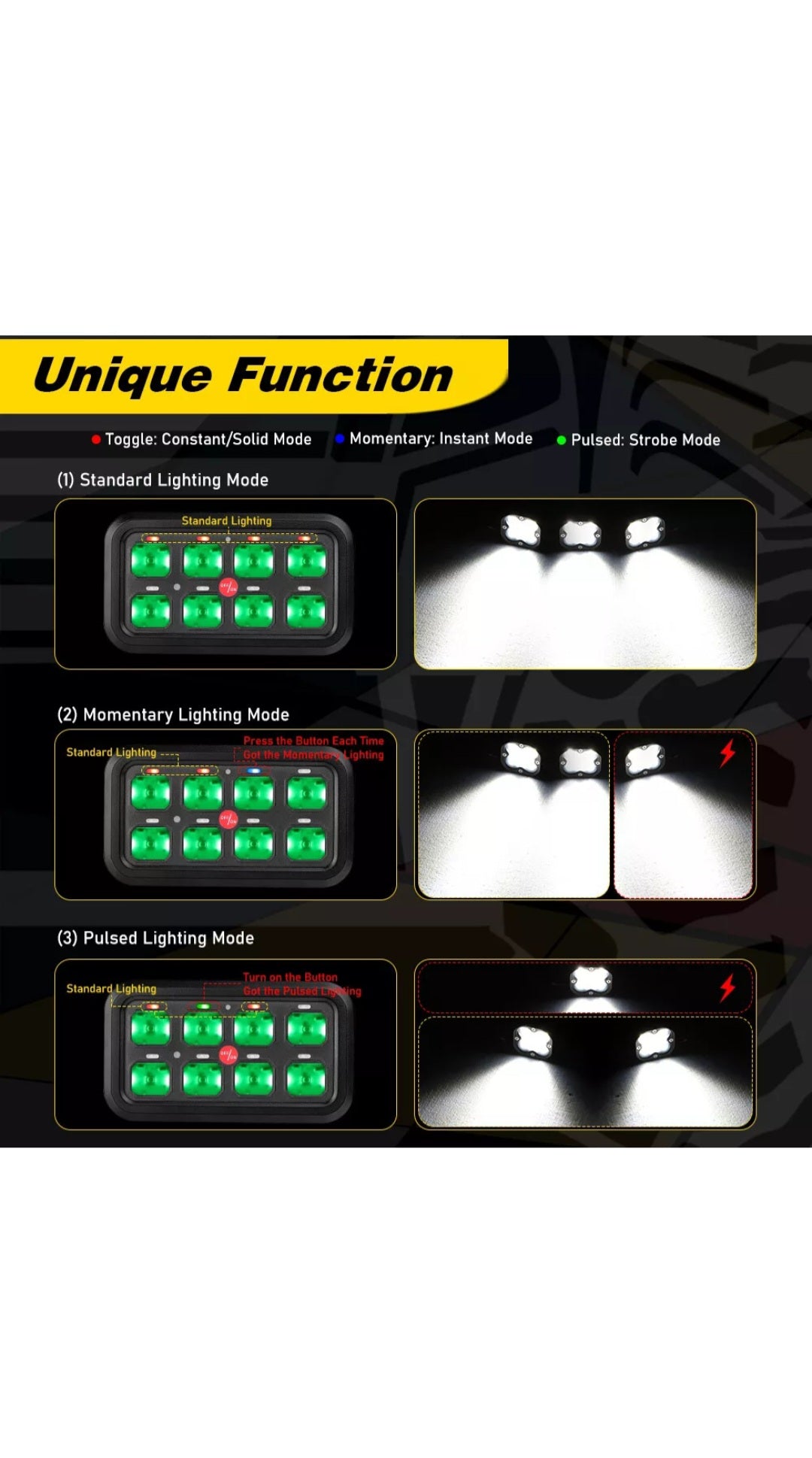

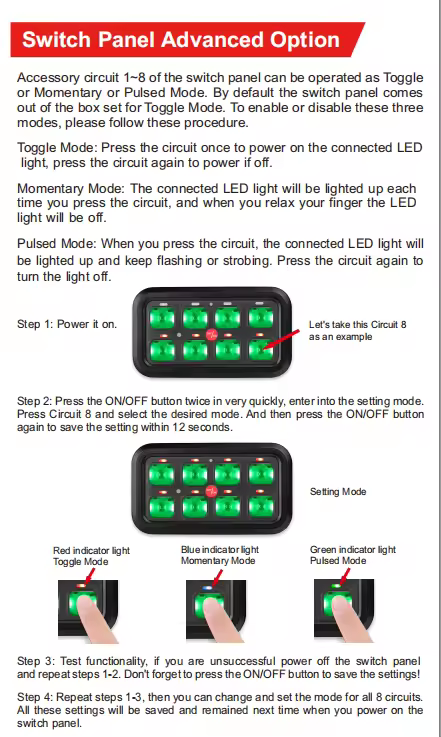

Toggle, Momentary, Pulsed

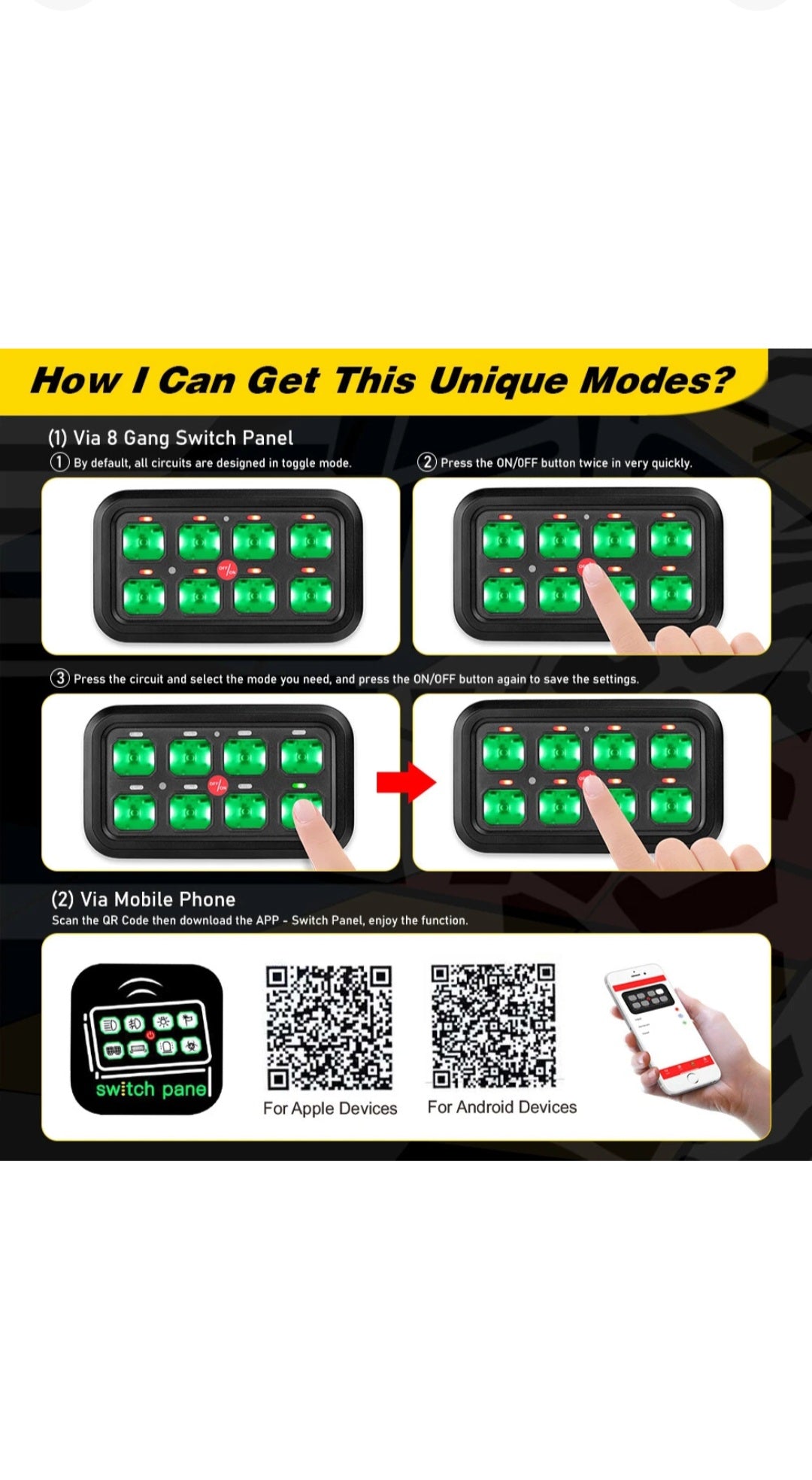

There are 8 switches of the panel, each button can be programmed into three lighting modes, including Toggle for common sense led light on and off, Momentary mode mostly used for horn honk, Pulsed mode for led lights having a strobe flashing effect for warning or emergency. Known well as offroad lighting switchboard, this 8 gang switch panel kit for vehicle is a must-have today if you have multiple aftermarket lighting on your vehicles or boat marine yacht!
12-24 Volt Fitment

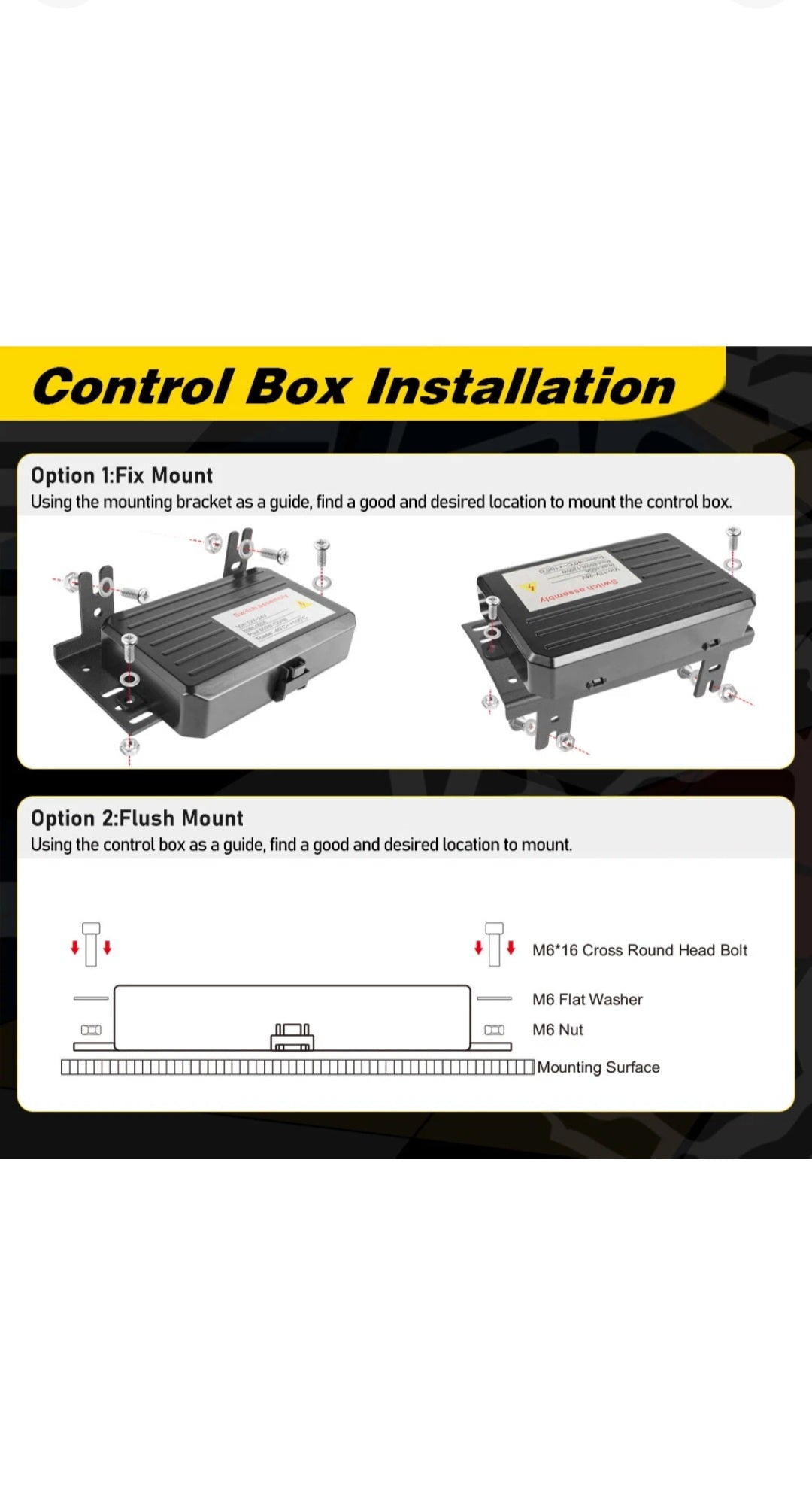

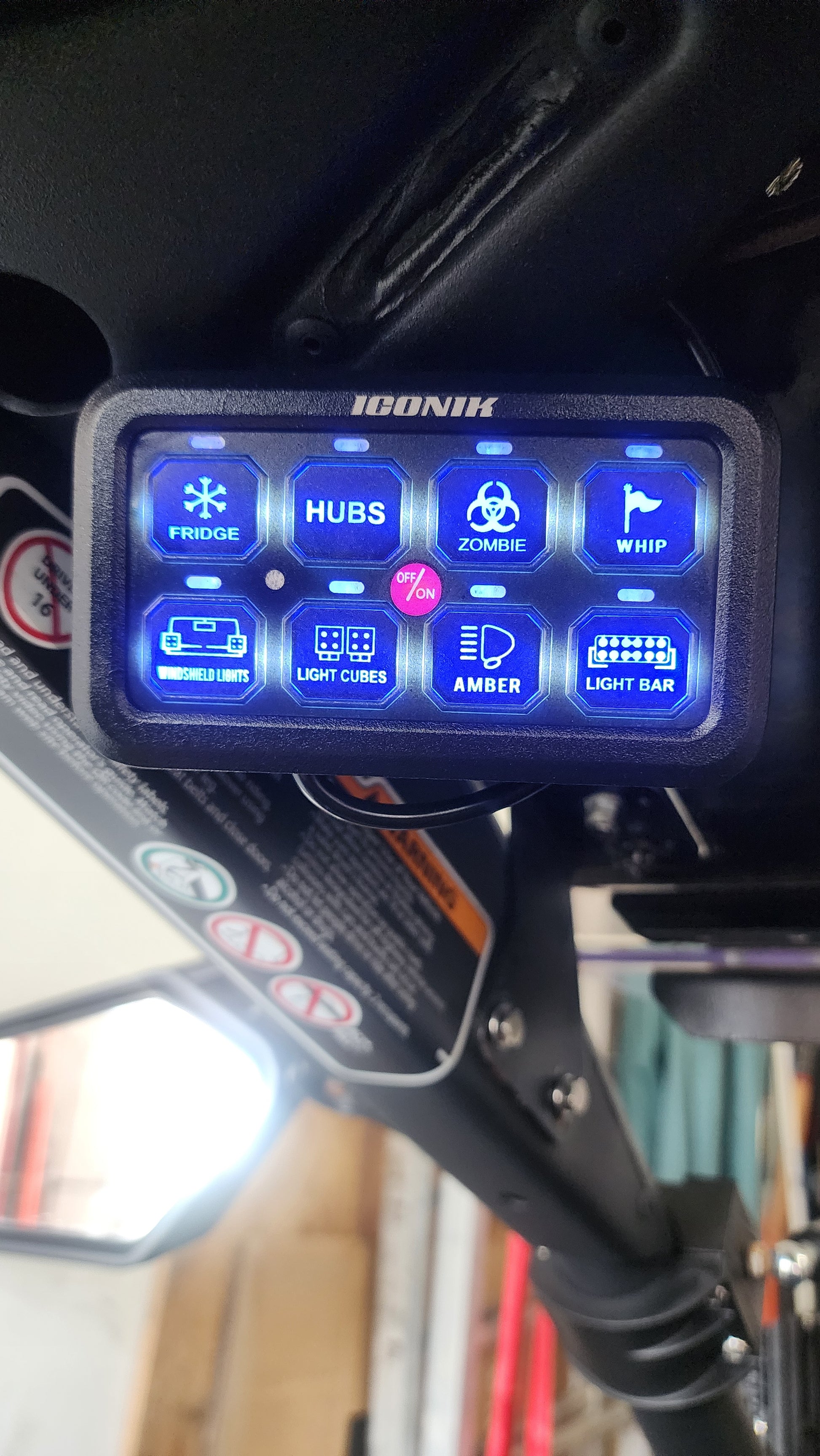

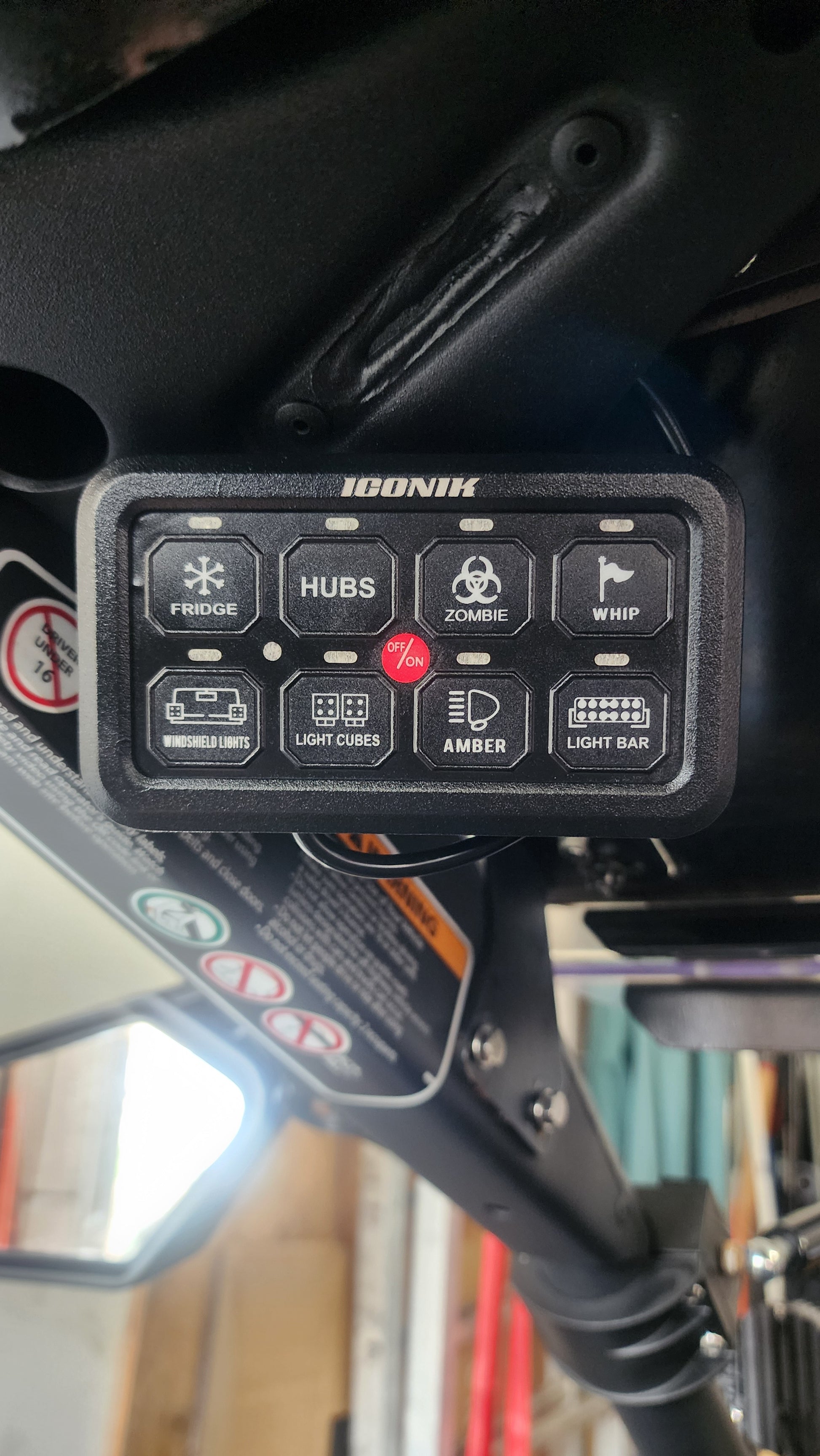

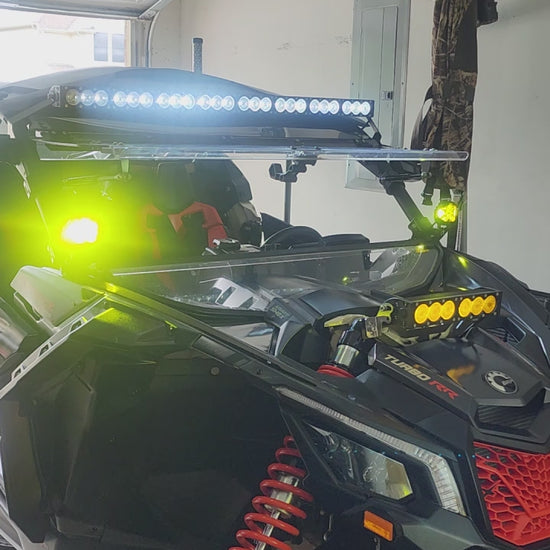

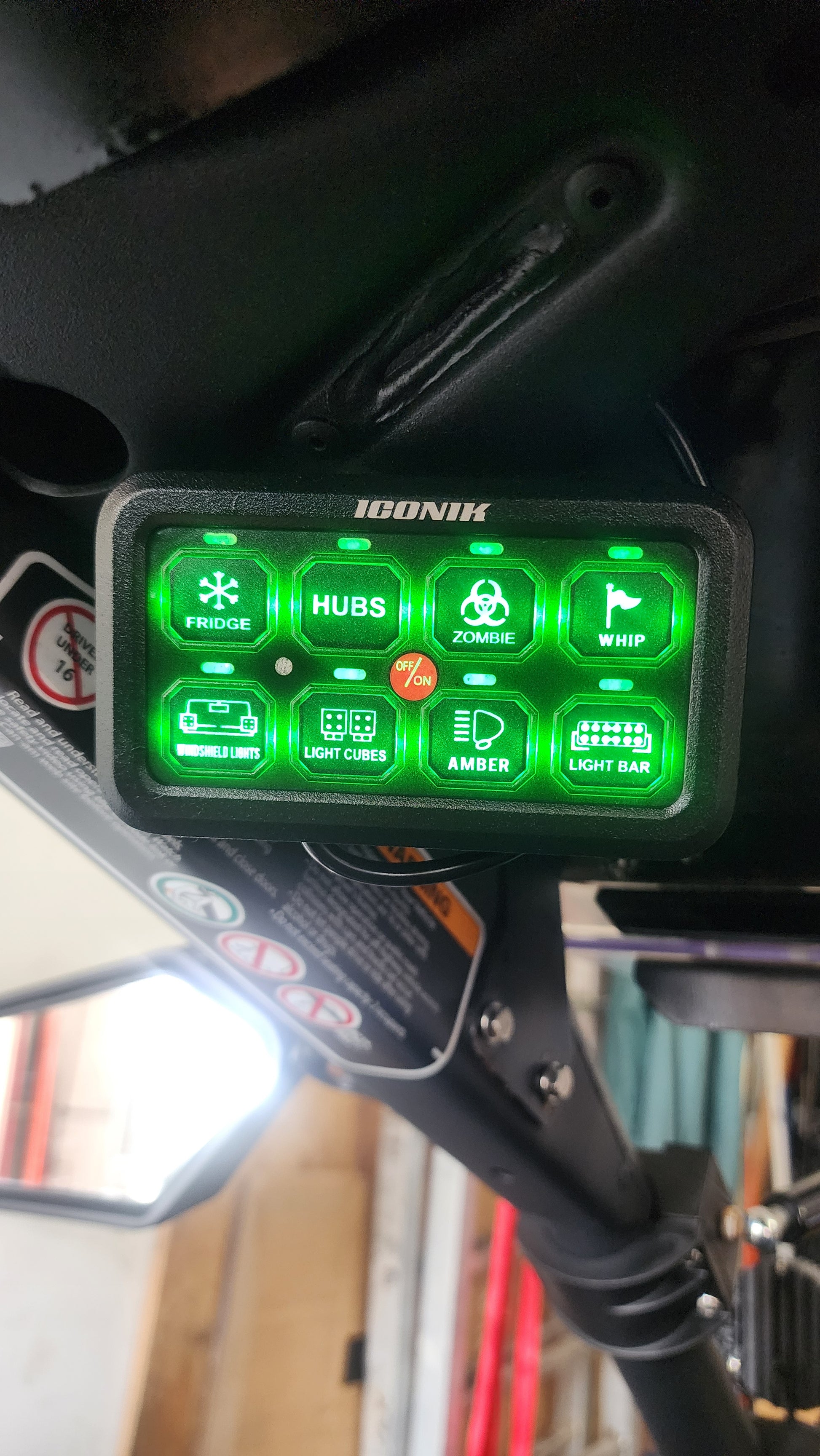

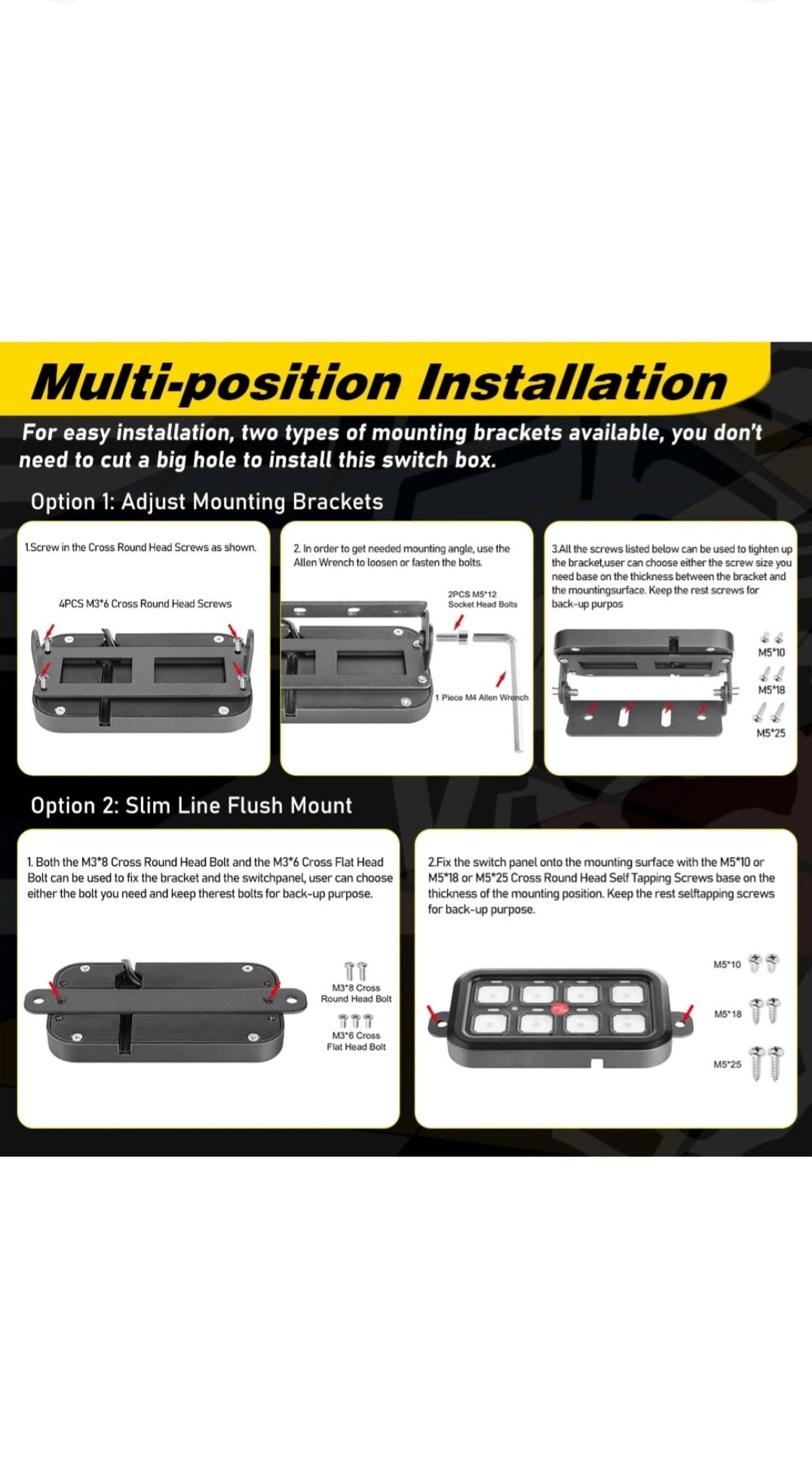

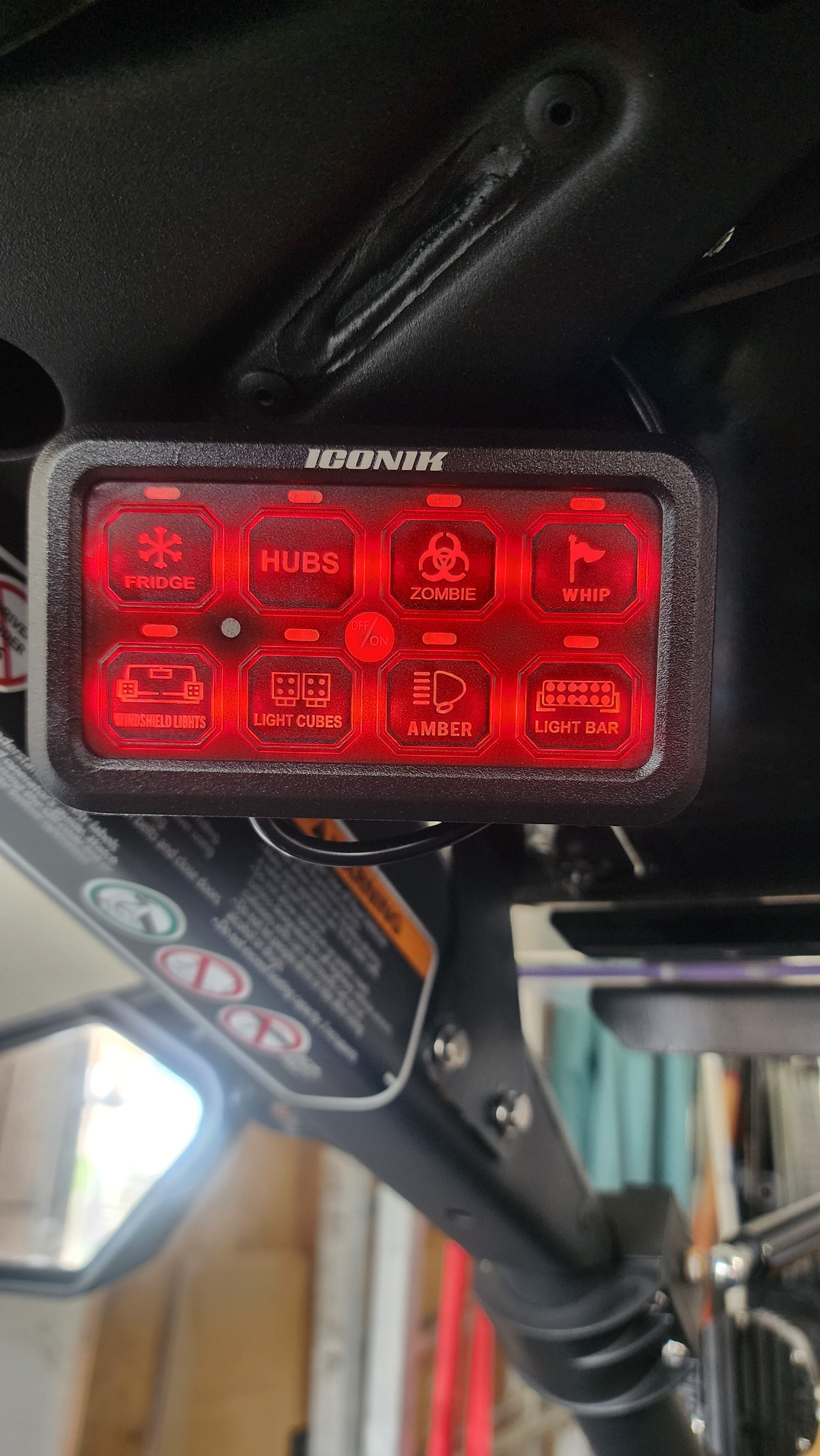

This complete package of power control system fits for all 12 or 24 volt vehicles, pickup, truck, powersports, utv, boat, marines, suv, etc. Available with angle flexible or fix mount brackets. For most of the cases, users can mount the it overhead the rear view mirror or overhead liner, onto the dashboard, nearby the steering wheel, or take the place of the factory ashtray, or in the car trunk bed, etc. Anywhere you feel like convenient or you can reach.
Check below product video to display how to use this dashboard switch controller or send inquiry to us right now to get more product details:

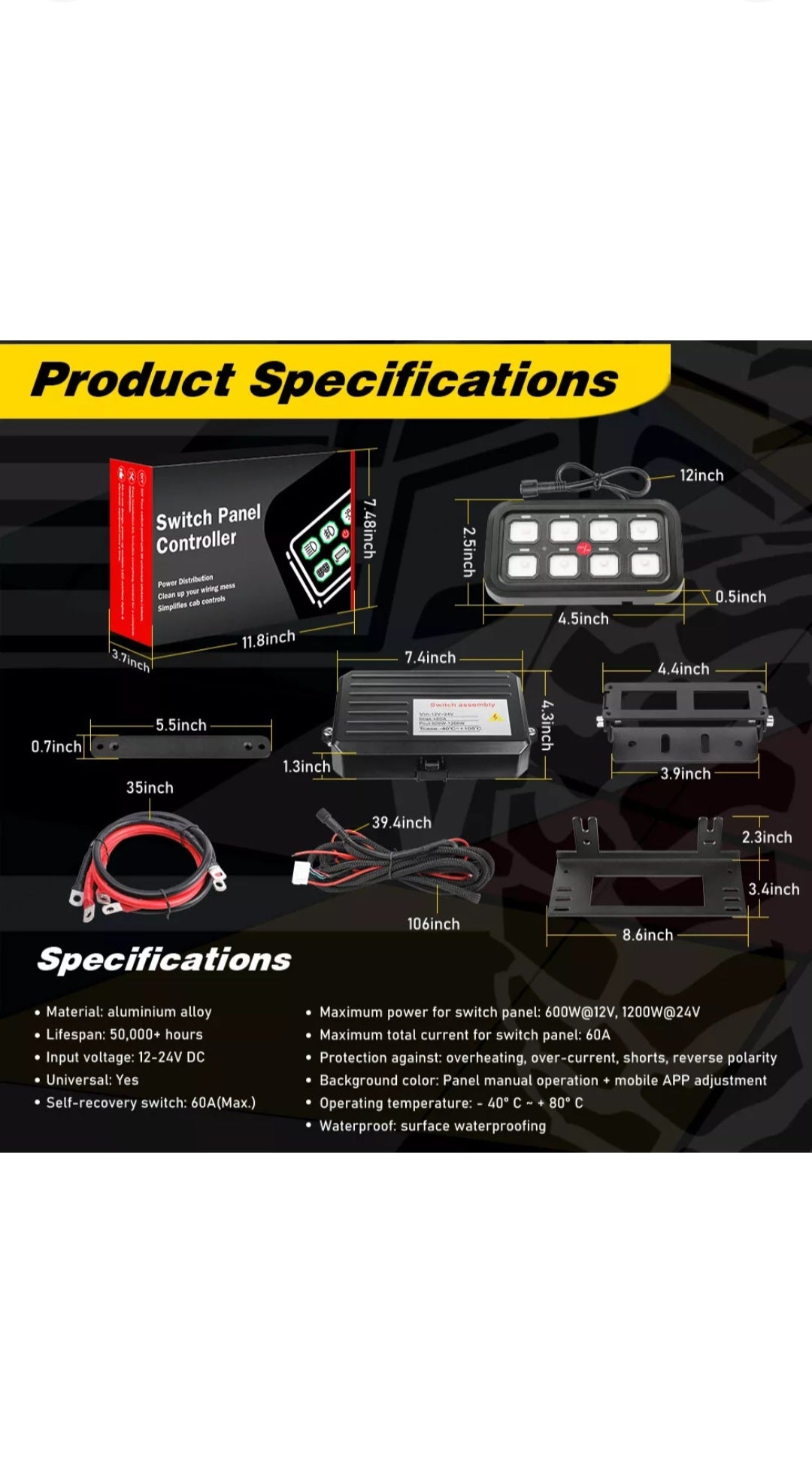

Product Name
RGB Switch panel
Panel Size
4.5 x 2.5 x 0.5 inch
Material
ABS button and aluminum base
Switch Quantity
8 Switches
Switch Function
Toggle, Momentary and Pulsed
Control Box Size
7.4 x 4.3 x 1.3 inch
Control Box Material
Plastic cover and aluminum base
Input Voltage
12~24 Volt
Max. Current
60 Amps
Power at 12V
720W maximum
Power at 24V
1440W max.
We are proud to annouced that this blue .. tooth auto switch panel is FCC and BQB approved, check below product certification:
FAQ
Question: Is the switch button waterproof?
Answer: Yes, it is.
Question: How long is the wiring from the switch panel to the control box?
Answer: The extension power harness is 3.2 meters which equals to 126 inch in length, or say 10 in feet.

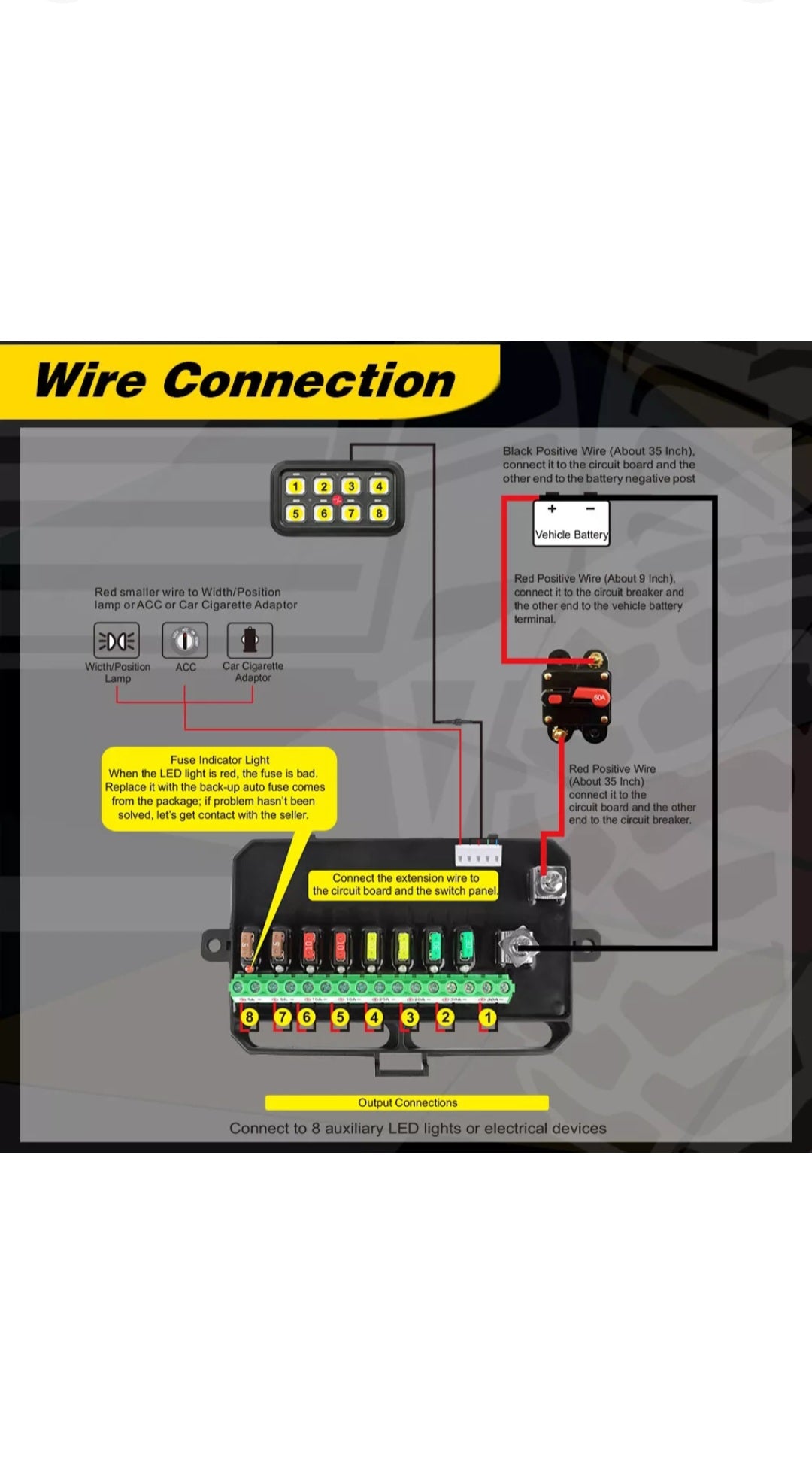

Question: Where to connect the small red cable?
Answer: ACC or say ignition power, so the switch panel will not drain off your battery power.
Question: Is there a momentary option for such as horn?
Answer: Yes. Momentary Mode programmed by switch panel operation or phone app setup.

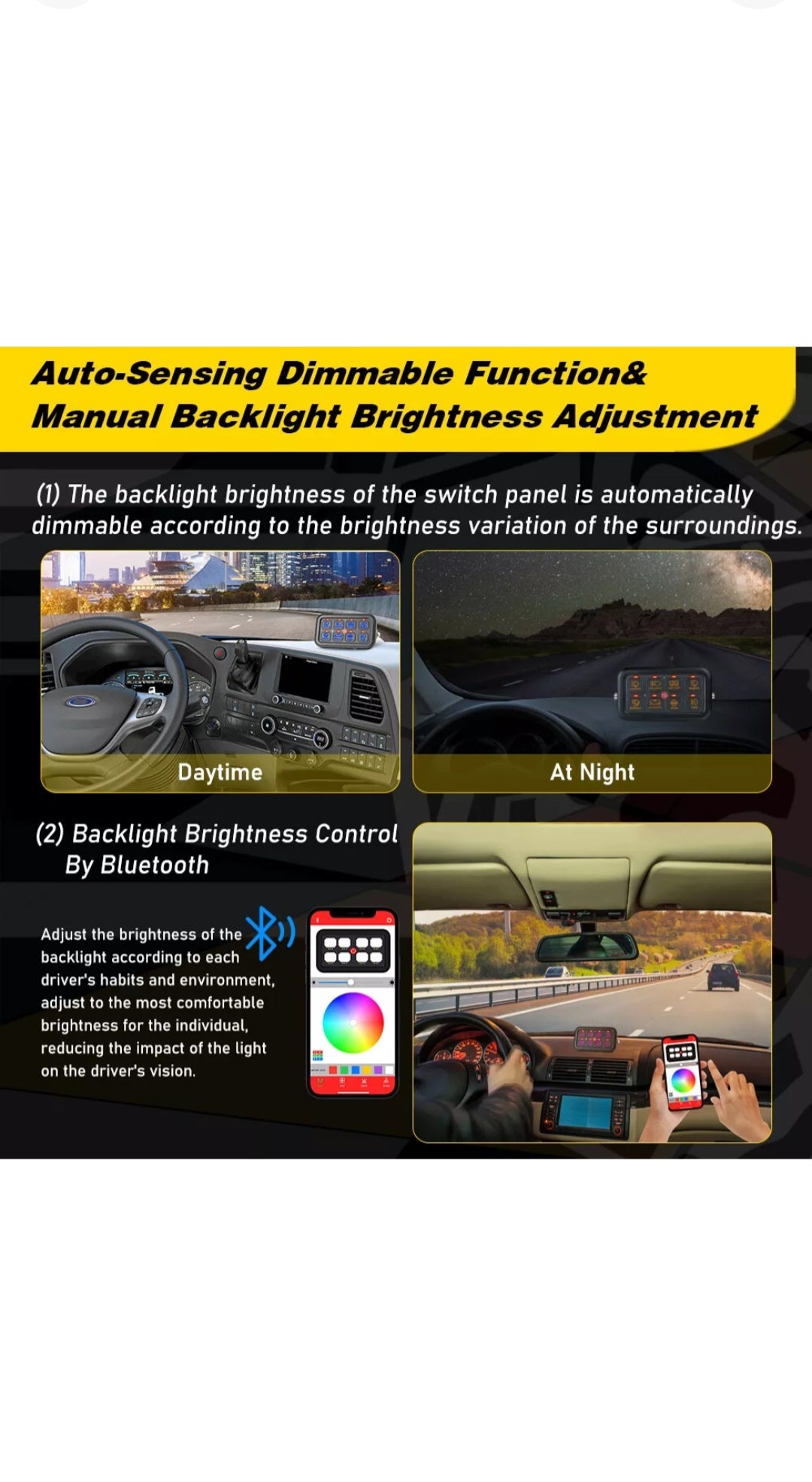

Question: Can I dim the bright led backlight?
Answer: Yes, the backlight brightness is automatic dimmable and can be modified via phone app operation.

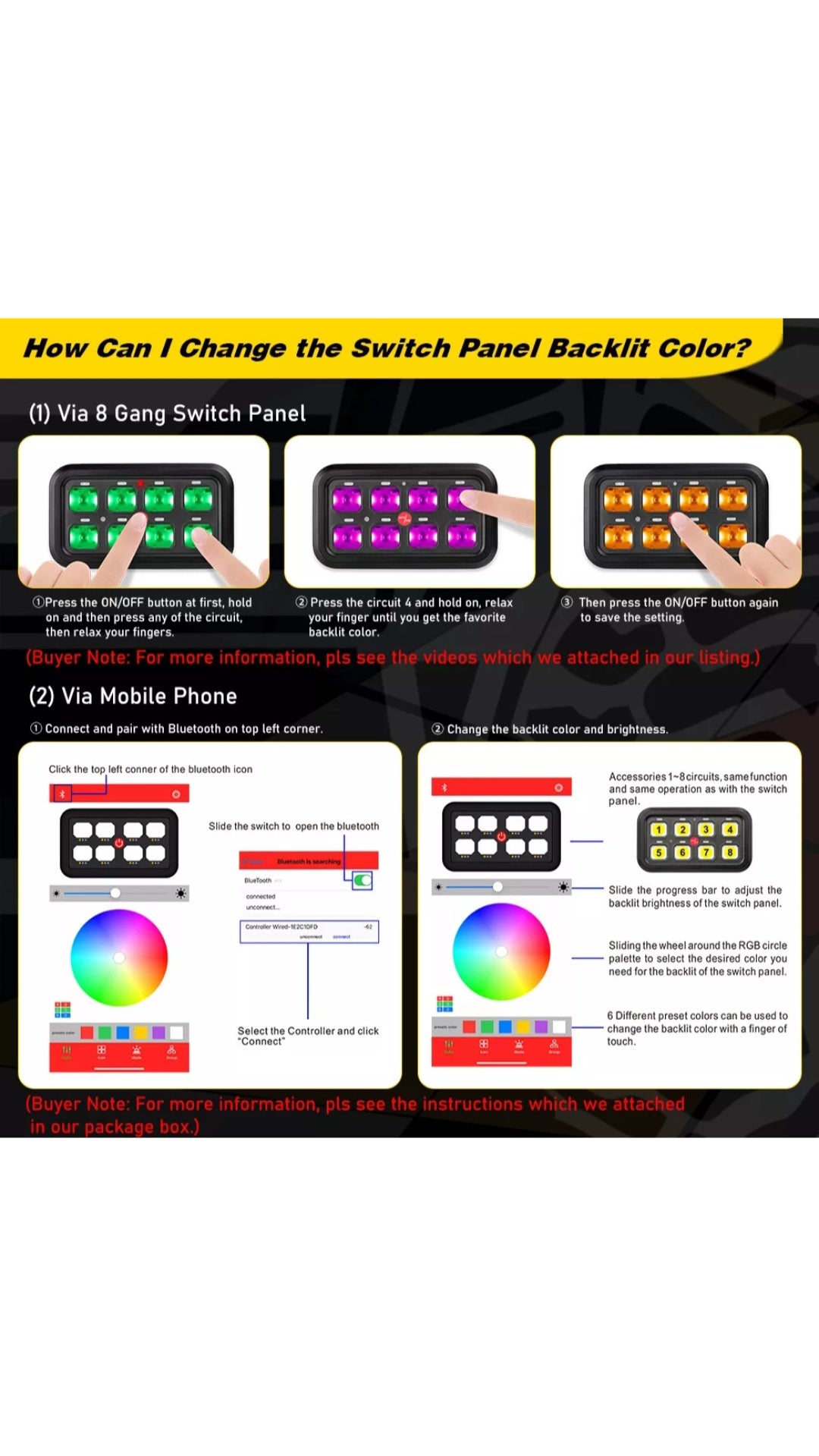

Question: How many backlight colors are there?
Answer: Over 16 million RGB colors available for the backlit via phone app operation, and 64 backlit color choices if operating via the panel itself.
Question: How many amps can you run per switch?

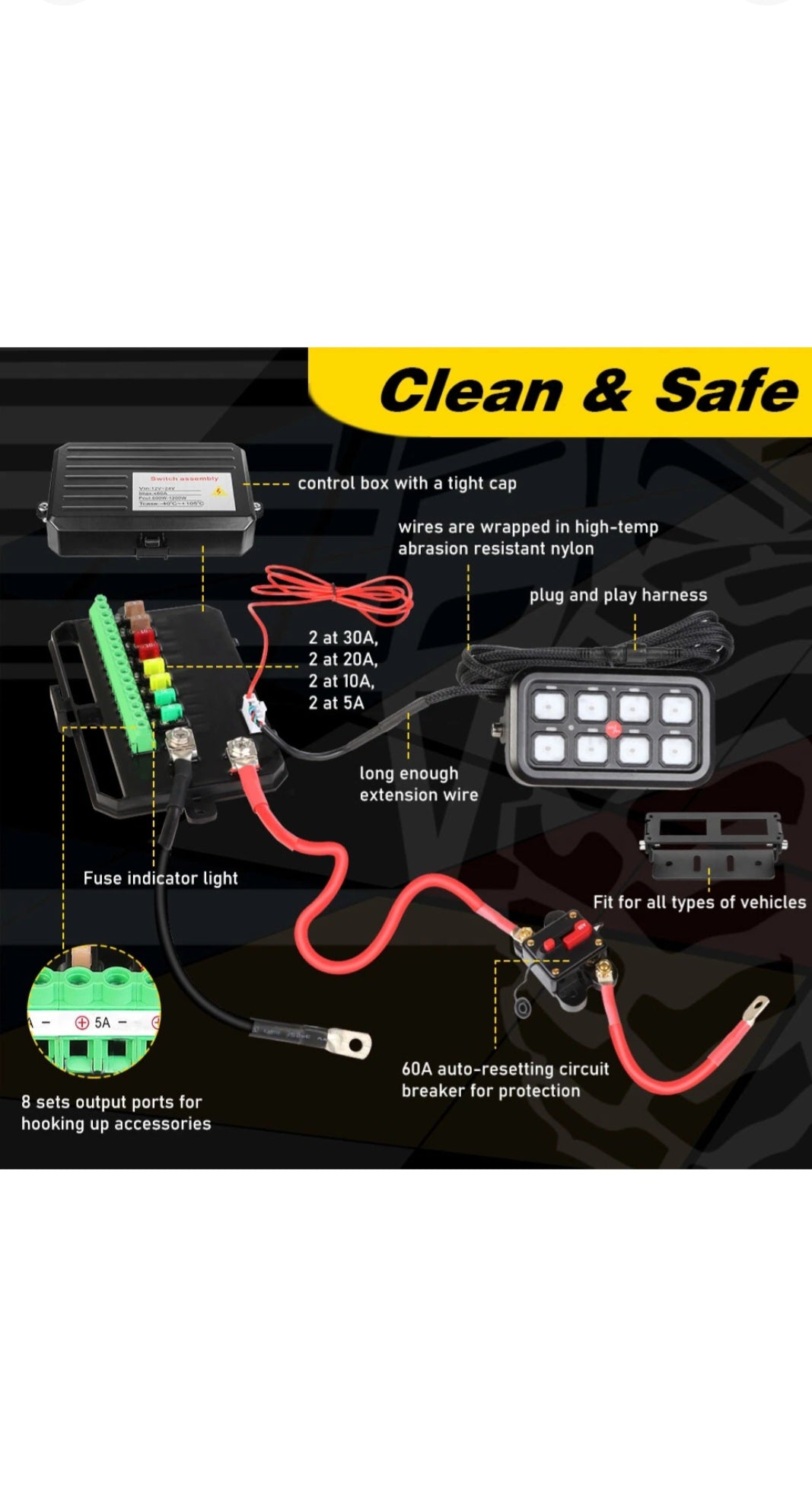

Answer: 2 Rated at 5 amps, 2 at 10A, 2 at 20A, 2 at 30A.
Question: Can I switch the fuse of 30amps to the position of 5 amps circuit?
Answer: This is not recommended.
Question: How do you connect to the connectors numbered 1-8?
Answer: The control box itself has the connection pieces already made on it, just slide your wire in and squash the connection pieces.
